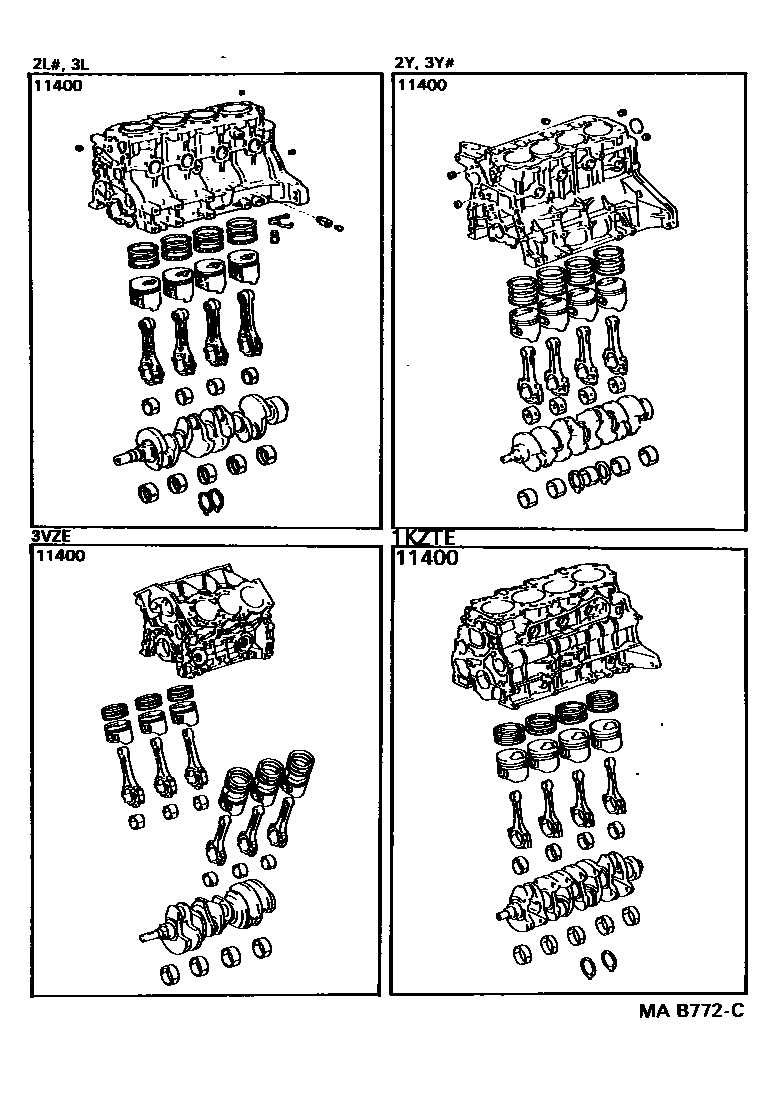

SHORT BLOCK ASSEMBLY

11400BLOCK ASSY, SHORT

main11400-54100i2L..LN8#198809-199408

main11400-54110i2LT..LN130198904-198908

sub11400-54130

main11400-54120i3L..LN100,106,107,109,131,81,86198809-199708

main11400-54130i2LT..LN130198908-199008

main11400-54150i2LTE..LN130199008-199210

sub11400-54151

main11400-54151i2LTE..LN108,112,130199210-199708

main11400-65020i3VZE..VZN130199008-199108

sub11400-65030

main11400-65030i3VZE..VZN130199108-199511

main11400-67020i1KZTE..KZN130199308-199503

sub11400-67021

sub13572-67041

sub13581-67041

sub90105-10398

main11400-67021i1KZTE..KZN130199503-199511

sub11400-69035

main11400-72021i2Y..YN8#198809-199408

sub11400-72031

main11400-73011i3Y#..YN10#,130198809-198908

sub11400-73012

main11400-73012i3Y#..YN10#,130198908-199308

sub11400-73013

main11400-73013i3Y#..YN10#,81,86199308-199512

sub11400-73014

sub11444-75020

main11400-73014i3YE..YN107,8#199512-199708

sub11400-73024

1 parts on this diagram · 1 diagram in section
