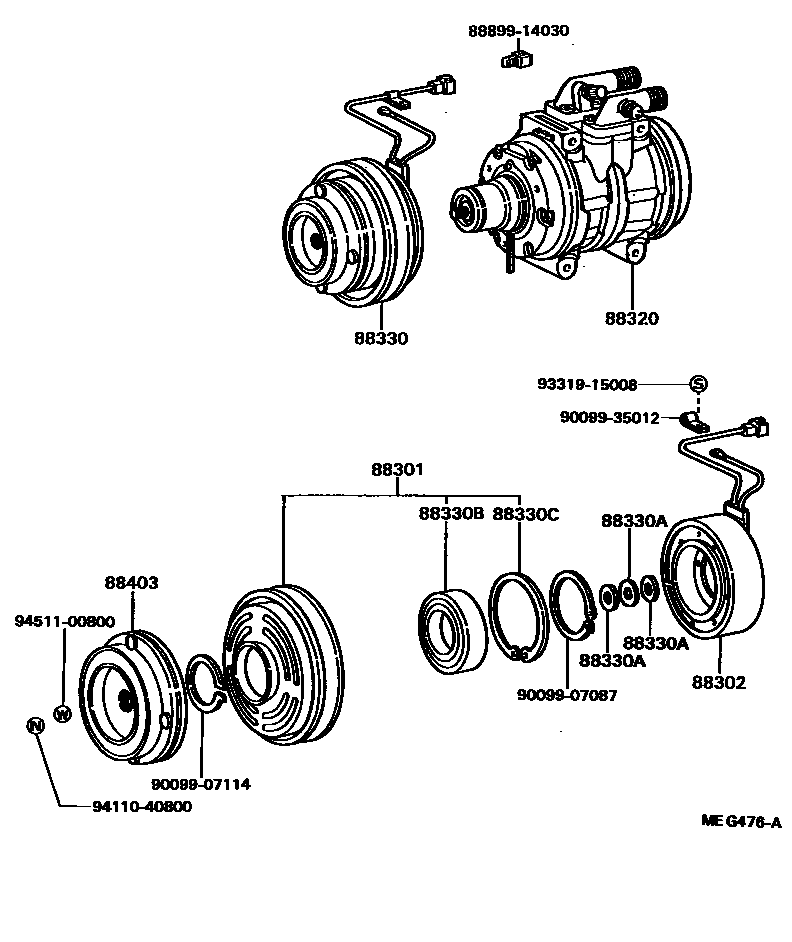

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-22030iLN5#,6#,YN5#,6#198311-198903

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-14050iLN5#,6#,YN5#,6#198311-198903

88320COMPRESSOR ASSY, COOLER

main88320-35110iYN5#,60,65..SJL,T1,T3,TW198311-198808

sub88320-35111

main88320-35140iLN5#,60,65..T1,T3,TW198311-198808

sub88320-35141

main88320-35180iYN60,61..V,WG198405-198903

sub88320-35181

main88320-35190iLN60,61..V..DSL198405-198903

main88320-35200iLN60,61..TD198411-198903

88330CLUTCH ASSY, MAGNET

main88410-22080iLN5#,6#,YN5#,6#198311-198903

sub88410-60140

88330AWASHER (FOR MAGNET CLUTCH)

main90099-01108iLN5#,6#,YN5#,6#198311-198903

T=0.5

main90099-01350iLN5#,6#,YN5#,6#198311-198903

T=0.1

main90099-01351iLN5#,6#,YN5#,6#198311-198903

T=0.2

88330BBEARING, MAGNET CLUTCH

main90099-10133iLN5#,6#,YN5#,6#198311-198903

88330CRING, SNAP (FOR MAGNET CLUTCH)

main90099-07114iLN5#,6#,YN5#,6#198311-198903

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-14030iLN5#,6#,YN5#,6#198311-198903

sub88403-12030

8889914030COVER, EVAPORATOR

main88899-14030

9009907087

main90099-07087

9009907114

main90099-07114

9009935012

main90099-35012

9331915008

main93319-15008

9411040800

main94110-40800

9451100800

main94511-00800

15 parts on this diagram · 2 diagrams in section
