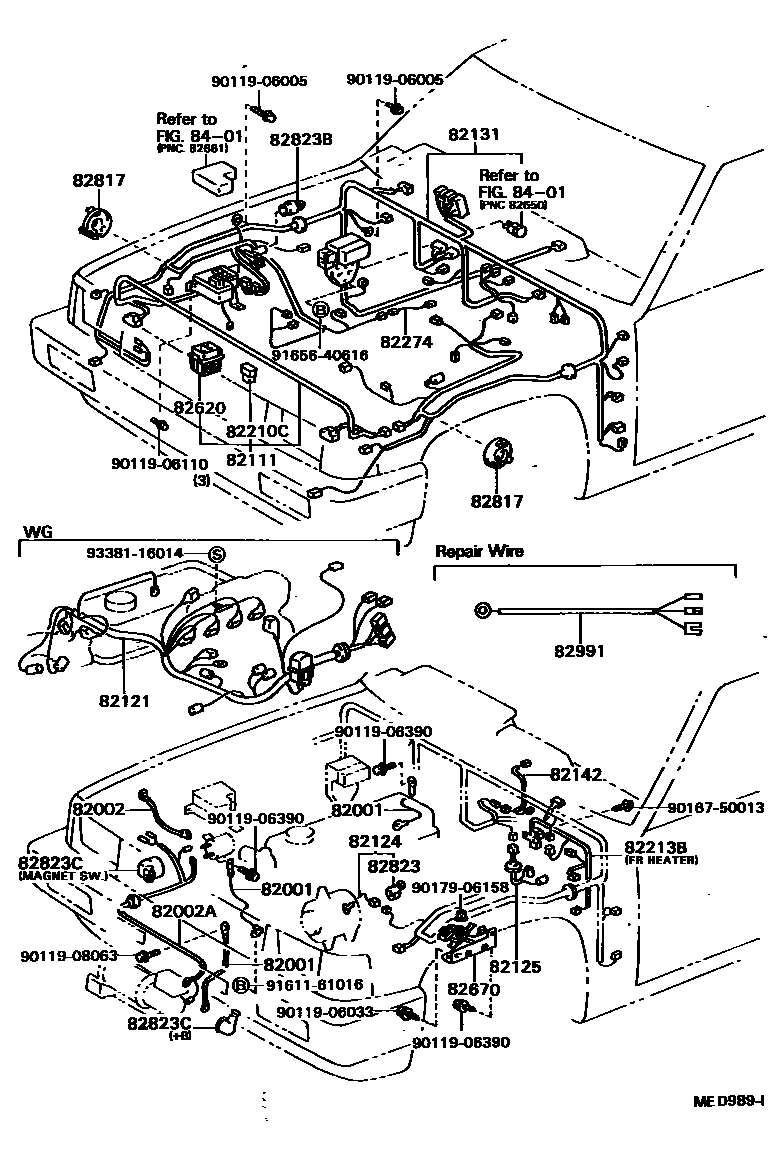

WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

82001CABLE, BOND, NO.1

main90980-07224iYN5#,6#198311-198508

ENGINE-APRON,RH

main90980-07225iYN5#,6#198311-198903

ENGINE-DASH

main90980-07229iLN60,61,YN60,61198311-198903

W/WINCH,WINCH-RADIATOR SUPPORT

82002CABLE, BATTERY TO MAGNET SWITCH

main38655-89101iYN60,61198311-198903

main38655-89102iLN60,61198311-198903

82002ACABLE, MAGNET SWITCH TO WINCH

main38656-89102iYN60,61198311-198608

main38656-89104iLN60,61198311-198608

main38656-89105iYN60,61198608-198903

main38656-89106iLN60,61198608-198903

82111WIRE, ENGINE ROOM MAIN

main82111-89104iYN5#,6#198311-198608

main82111-89108iLN5#,6#198311-198408

main82111-89109iLN5#,6#..DSL198311-198508

W/FUEL HEATER

main82111-89117iLN60..TD198411-198508

W/FUEL HEATER

main82111-89119iLN60..V198408-198508

main82111-89127iYN5#,6#..CBR198608-198808

main82111-89129iYN61..EFI198608-198903

main82111-89131iLN5#,6#198608-198903

main82111-89132iLN5#,6#198608-198903

W/FUEL HEATER

82121WIRE, ENGINE

main82121-89115iLN5#,65..MTM..(DLX,SDX)198311-198608

main82121-89116iLN6#..SR..DSL198311-198608

main82121-89117iLN56198311-198508

main82121-89130iLN60,61..TD198411-198608

main82121-89138iLN56..4FC198508-198608

main82121-89152iLN5#,6#..MTM..DSL198608-198903

main82121-89153iLN56..4FC198608-198903

main82121-89167iLN61..TD198608-198903

main82121-89169iYN61..5F..EFI198608-198903

main82121-89170iYN61..4FC198608-198903

82124WIRE, ENGINE, NO.4

main82124-89103iYN5#,6#..CBR198311-198808

main82124-89112iYN61..EFI198608-198903

82125WIRE, TRANSMISSION

main82125-89104iYN5#,60,65..T1,T3,TW198311-198608

main82125-89111iLN60,61..TD198411-198608

main82125-89116iLN5#,YN5#..5H198608-198808

main82125-89117iLN60,65,YN60,65198608-198808

82131WIRE, COWL

main82131-89241iYN56,65..DLX198311-198408

main82131-89242iYN5#,60,65..T1,T3,TW198408-198608

main82131-89266iLN50,55,6#..T1,T3,TW198311-198508

main82131-89267iLN56198311-198508

main82131-89286iYN60..V198405-198508

main82131-89339iLN60..V..DSL198405-198508

main82131-89340iLN60..TD198411-198508

main82131-89418iYN61198508-198608

main82131-89419iLN61..DSL198508-198608

main82131-89420iLN61..TD198508-198608

main82131-89422iLN5#,60,65..MTM198508-198608

main82131-89423iLN56..4FC198508-198608

main82131-89470iYN5#198608-198808

main82131-89490iYN61..CBR198608-198808

main82131-89492iYN61..5F..EFI198608-198808

main82131-89494iYN61..4FC198608-198808

main82131-89503iLN5#,65..MTM..(DLX,SDX)198608-198808

main82131-89504iLN56..4FC198608-198808

main82131-89518iLN61..DSL198608-198808

main82131-89520iLN61..TD198608-198808

main82131-89523iYN60,65198608-198808

main82131-89524iLN60,65198608-198808

W/RHEOSTAT

main82131-89747iYN61..CBR198808-198903

main82131-89748iYN61..5F..EFI198808-198903

main82131-89749iYN61..4FC198808-198903

main82131-89753iLN61..DSL198808-198903

main82131-89754iLN61..TD198808-198903

82142WIRE, INSTRUMENT PANEL, NO.2

main82142-89101iLN6#,YN60,61..SR,SSR198311-198903

W/CLINOMETER

82210CFUSIBLE LINK

main90982-08188iLN5#,6#,YN5#,6#198311-198903

main90982-08189iYN61..EFI198608-198903

main90982-08190iYN5#,6#..CBR198311-198903

main90982-08202iLN5#,6#198311-198903

main90982-08203iYN61..EFI198608-198812

main90982-08253iYN61..EFI198812-198903

82213BWIRE, HEATER

main82213-89101iLN5#,6#,YN5#,6#198311-198903

W/FR HEATER ONLY

main82213-89103iLN60,61,YN60,61..V198405-198608

W/FR HEATER & RR HEATER

main82213-89105iLN61,YN61198608-198903

W/FR HEATER & RR HEATER

82274WIRE, TO STARTER MAGNET

main82274-89101iYN61..EFI198608-198903

82620BLOCK ASSY, FUSIBLE LINK

main82620-30020iLN5#,6#198311-198604

main82620-89101iLN5#,6#198604-198903

82670BLOCK ASSY, JUNCTION, NO.1

main82670-89103iYN61..EFI198608-198903

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-16020×2iLN5#,6#,YN5#,6#198311-198903

82823CAP, TERMINAL, NO.1

main82823-12020iLN5#,6#198711-198903

ALTERNATOR

main82823-17010iYN61..EFI198608-198903

ALTERNATOR

main82823-22020iLN5#,6#198311-198711

ALTERNATOR

82823BCAP, TERMINAL, NO.3

main82823-22040iYN5#,6#..CBR198608-198903

82823CCAP, TERMINAL, NO.4

main82823-89103iLN60,61,YN60,61..V198311-198903

W/WINCH (+B)

main82823-89104iLN60,61,YN60,61..V198311-198903

W/WINCH (MAGNET SWITCH)

82991WIRE, FUSIBLE LINK REPAIR

main82991-89101iYN5#,6#..CBR198311-198903

main82991-89102iLN5#,6#198311-198903

main82991-89103iYN61..EFI198608-198903

8401

9011906005

main90119-06005

9011906033

main90119-06033

9011906110

main90119-06110

9011906390

main90119-06390

9011908063

main90119-08063

9016750013

main90167-50013

9017906158

main90179-06158

9161161016

main91611-61016

9165640616

main91656-40616

9338116014

main93381-16014

30 parts on this diagram · 7 diagrams in section
