MOULDING

0001 1 0002 1 0003 1

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-89103iLN5#,6#,YN5#,6#..CBR,DSL,TD198608-198903

main75531-89104iLN60,61,YN60,61..V198405-198608

CHROME PLATED

main75581-10010iLN55,56,60,65,YN56,60..(T1,TW)..(SDX,SR)198311-198608

CHROME PLATED

75532MOULDING, WINDSHIELD, LOWER

main75535-89101iLN60,61,YN60,61..V198405-198608

main75535-89102iLN56,6#,YN56,6#..SDX,SR,SSR198608-198903

CHROME PLATED

main75581-10010iLN55,56,60,65,YN56,60..(T1,TW)..(SDX,SR)198311-198608

CHROME PLATED

75533MOULDING, WINDSHIELD, OUTSIDE RH

main75533-89105iLN55,56,60,65,YN56,60..(T1,TW)..(SDX,SR)198311-198608

CHROME PLATED

main75533-89106iLN60,61,YN60,61..V198405-198608

main75533-89107iLN60,61,YN60,61..V198405-198608

CHROME PLATED

75534MOULDING, WINDSHIELD, OUTSIDE LH

main75534-89103iLN55,56,60,65,YN56,60..(T1,TW)..(SDX,SR)198311-198608

CHROME PLATED

main75534-89104iLN5#,6#,YN5#,6#..CBR,DSL,TD198608-198903

main75534-89105iLN60,61,YN60,61..V198405-198608

CHROME PLATED

75553MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-89108iLN5#,6#,YN56,6#..T1,T3198311-198411

main75551-89109iLN5#,6#,YN56,6#..T1,T3198311-198411

CHROME PLATED

main75551-89112iLN55,56,65,YN56,65..TW198312-198808

main75551-89113iLN65,YN65..TW198608-198808

CHROME PLATED

main75551-89114iLN61,YN61..V198608-198903

main75551-89115iLN60,61,YN60,61..V,WG198405-198903

CHROME PLATED

main75551-89116iLN5#,60,65,YN5#,60,65..SJL,T1,T3198411-198808

main75551-89117iLN65..DLX198608-198808

CHROME PLATED

75554MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-89108iLN5#,6#,YN56,6#..T1,T3198311-198411

main75552-89109iLN5#,6#,YN56,6#..T1,T3198311-198411

CHROME PLATED

main75552-89112iLN55,56,65,YN56,65..TW198312-198808

main75552-89113iLN65,YN65..TW198608-198808

CHROME PLATED

main75552-89114iLN61,YN61..V198608-198903

main75552-89115iLN60,61,YN60,61..V,WG198405-198903

CHROME PLATED

main75552-89116iLN5#,60,65,YN5#,60,65..SJL,T1,T3198411-198808

STAINLESS STEEL

main75552-89117iLN65..DLX198608-198808

CHROME PLATED

75733MOULDING, FRONT DOOR WINDOW FRAME, REAR RH

main75755-89101iLN55,56,YN56..SDX198311-198808

75734MOULDING, FRONT DOOR WINDOW FRAME, REAR LH

main75756-89101iLN55,56,YN56..SDX198311-198808

75737MOULDING, FRONT DOOR WINDOW FRAME, FRONT RH

main75751-89101iLN55,56,YN56..SDX198311-198808

75738MOULDING, FRONT DOOR WINDOW FRAME, FRONT LH

main75752-89101iLN55,56,YN56..SDX198311-198808

75951PLATE, FRONT DOOR SCUFF, OUTSIDE RH

main67913-89102-03iLN5#,6#,YN5#,6#198311-198608

GRAY,GRAY,TRIM1#

main67913-89102-04iLN5#,6#,YN5#,6#198311-198608

BLUE,BLUE,TRIM8#

main67913-89102-05iLN5#,6#,YN5#,6#198608-198903

BEIGE,BEIGE,TRIM4#

main67913-89102-06iLN5#,6#,YN5#,6#198311-198608

BROWN,BROWN,TRIM4#

main67913-89102-13iLN5#,6#,YN5#,6#198608-198903

GRAY,GRAY,TRIM1#

main67913-89102-14iLN5#,60,65,YN5#,60,65198608-198808

BLUE,BLUE,TRIM8#

75952PLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67913-89102-03iLN5#,6#,YN5#,6#198311-198608

GRAY,GRAY,TRIM1#

main67913-89102-04iLN5#,6#,YN5#,6#198311-198608

BLUE,BLUE,TRIM8#

main67913-89102-05iLN5#,6#,YN5#,6#198608-198903

BEIGE,BEIGE,TRIM4#

main67913-89102-06iLN5#,6#,YN5#,6#198311-198608

BROWN,BROWN,TRIM4#

main67913-89102-13iLN5#,6#,YN5#,6#198608-198903

GRAY,GRAY,TRIM1#

main67913-89102-14iLN5#,60,65,YN5#,60,65198608-198808

BLUE,BLUE,TRIM8#

75955PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67915-89103-03iLN55,56,65,YN56..TW198312-198608

GRAY,GRAY,TRIM1#

main67915-89103-04iLN55,56,65,YN56..TW198312-198608

BLUE,BLUE,TRIM8#

main67915-89103-05iLN56,65,YN56,65..TW198608-198808

BEIGE,BEIGE,TRIM4#

main67915-89103-06iLN55,56,65,YN56..TW198312-198608

BROWN,BROWN,TRIM4#

main67915-89103-13iLN56,65,YN56,65..TW198608-198808

GRAY,GRAY,TRIM1#

main67915-89103-14iLN56,65,YN56,65..TW198608-198808

BLUE,BLUE,TRIM8#

75956PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67915-89103-03iLN55,56,65,YN56..TW198312-198608

GRAY,GRAY,TRIM1#

main67915-89103-04iLN55,56,65,YN56..TW198312-198608

BLUE,BLUE,TRIM8#

main67915-89103-05iLN56,65,YN56,65..TW198605-198808

BEIGE,BEIGE,TRIM4#

main67915-89103-06iLN55,56,65,YN56..TW198312-198608

BROWN,BROWN,TRIM4#

main67915-89103-13iLN56,65,YN56,65..TW198608-198808

GRAY,GRAY,TRIM1#

main67915-89103-14iLN56,65,YN56,65..TW198608-198808

BLUE,BLUE,TRIM8#

9016745002

main90167-45002

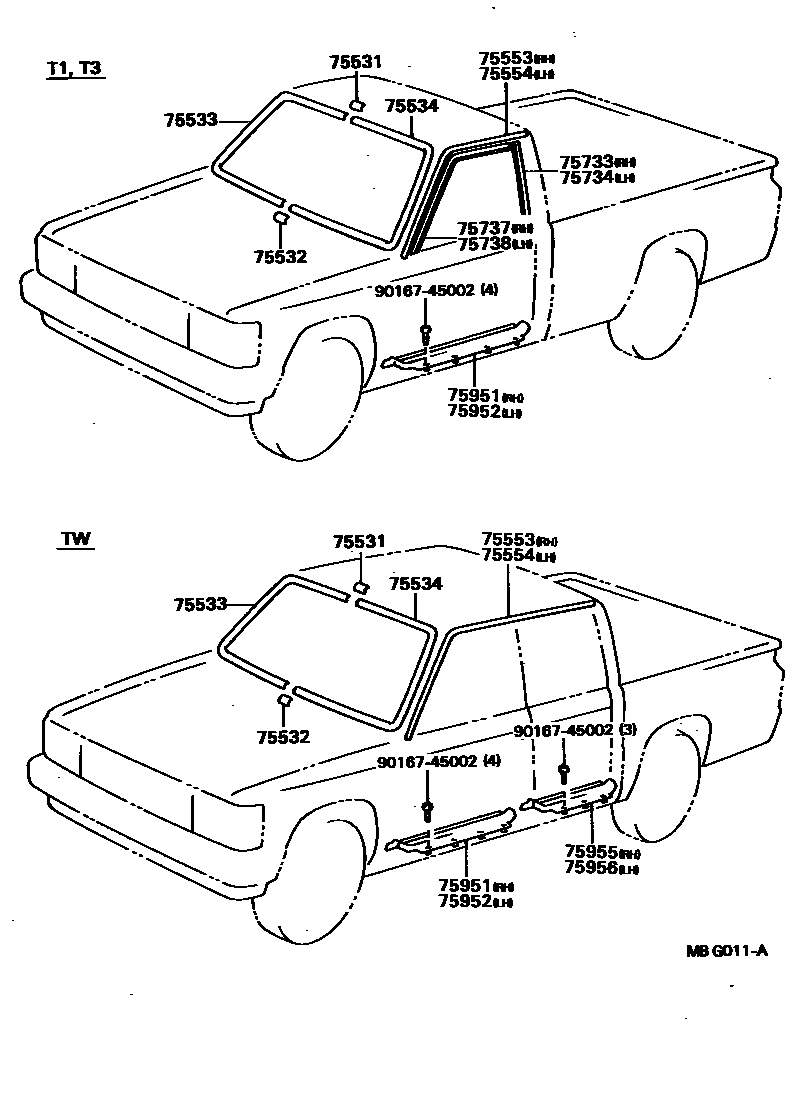

15 parts on this diagram · 3 diagrams in section
