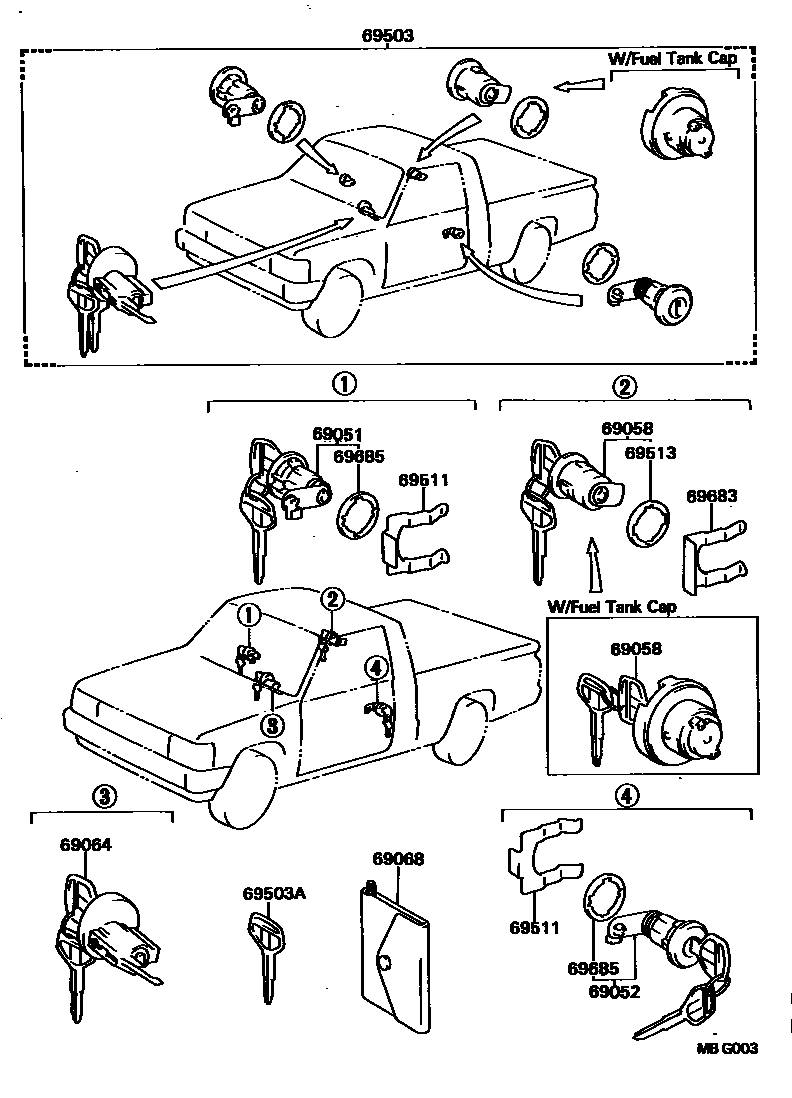

LOCK CYLINDER SET

0001 1 0002 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-89111iLN5#,6#,YN5#,6#198311-198903

sub69051-89118

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-89111iLN5#,6#,YN5#,6#198311-198903

sub69052-89118

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-89102iLN56..T1..IV;LN55,56..SJL,T3198311-198808

sub69058-25010

main69058-89105iLN5#,6#,YN56,6#..T1198311-198406

sub69058-89113

main69058-89108iYN56,65..TW198312-198808

sub69058-89204

main69058-89109iLN55,56,65..TW198312-198808

sub69058-35150

main69058-89111iLN60,61,YN60,61..V,WG198405-198903

sub69058-89110

main69058-89112iLN5#,60,65,YN5#,60,65..T1..CBU198406-198903

sub69058-89113

main69058-95400iYN56..SJL,T3;YN56..T1..IV198311-198808

sub69058-60071

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-89107iLN5#,6#,YN5#,6#198311-198708

sub69057-89108

main69057-89110iLN5#,6#,YN5#,6#198708-198903

sub69057-95717

69068COVER SUB-ASSY, KEY

main84041-89102iLN5#,6#,YN5#,6#198311-198903

69503CYLINDER SET, LOCK

main69005-89139iLN5#,60,65,YN5#,60,65..T1..CBU198311-198708

main69005-89140iYN56..SJL,T3;YN56..T1..IV198311-198708

main69005-89141iLN56..T1..IV;LN55,56..SJL,T3198311-198708

main69005-89151iLN60,61,YN60,61..V,WG198405-198708

sub69005-89152

main69005-89156iYN56,65..TW198312-198708

sub69005-89158

main69005-89157iLN55,56,65..TW198312-198708

sub69005-89159

main69005-89166iLN5#,60,65,YN5#,60..T1..CBU198708-198808

sub69005-89191

main69005-89167iYN56..SJL,T3;YN56..T1..IV198708-198808

main69005-89168iLN56..SJL,T3;LN56..T1..IV198708-198808

main69005-89169iLN61,YN61198708-198903

main69005-89170iYN56,65..TW198708-198808

sub69005-89195

main69005-89171iLN56,65..TW198708-198808

69503AKEY, BLANK

main90999-00066iLN5#,6#,YN5#,6#198311-198903

sub90999-00085

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-89101iLN5#,6#,YN5#,6#198311-198903

69513PAD, FUEL FILLER LID LOCK CYLINDER

main69513-12020iLN5#,6#,YN5#,6#..(T1,V,WG)..CBU198311-198903

69683CLAMP, FUEL LOCK CYLINDER

main69681-89102iLN5#,60,65,YN5#,60,65..T1..CBU198311-198808

main69681-89103iLN60,61,YN60,61..V,WG198405-198903

69685PAD, LOCK CYLINDER

main69513-32010iLN5#,6#,YN5#,6#198311-198903

11 parts on this diagram · 2 diagrams in section
