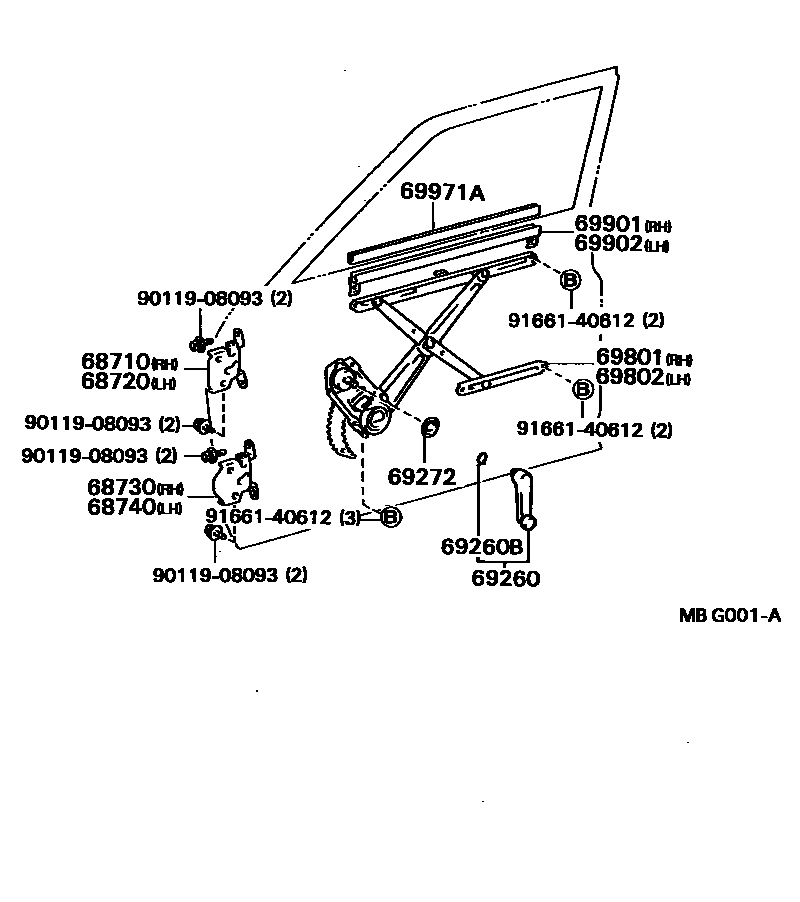

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-14030iLN5#,6#,YN5#,6#198311-198903

sub68710-60040

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-14030iLN5#,6#,YN5#,6#198311-198903

sub68720-60040

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-14030iLN5#,6#,YN5#,6#198311-198903

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-14030iLN5#,6#,YN5#,6#198311-198903

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-10040-13×2iLN5#,6#,YN5#,6#198311-198608

GRAY,GRAY,TRIM1#

sub69260-16010

main69260-10040-14×2iLN5#,6#,YN5#,6#198311-198608

BLUE,BLUE,TRIM8#

sub69260-16010

main69260-10040-56×2iLN5#,6#,YN5#,6#198311-198608

BROWN,BROWN,TRIM4#

sub69260-16010

main69260-89104-03×2iLN5#,6#,YN5#,6#198608-198903

GRAY,GRAY,TRIM1#

main69260-89104-04×2iLN5#,60,65,YN5#,60,65198608-198808

BLUE,BLUE,TRIM8#

main69260-89104-05×2iLN5#,6#,YN5#,6#198608-198903

BEIGE,BEIGE,TRIM4#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2iLN5#,6#,YN5#,6#198311-198903

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69266-22010×2iLN5#,6#,YN5#,6#198311-198608

main69268-16010×2iLN5#,6#,YN5#,6#198608-198903

sub69268-20020

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-89107iLN5#,6#,YN5#,6#198311-198903

main69801-89109iLN61,YN61..SSR198608-198903

W/POWER WINDOW

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-89107iLN5#,6#,YN5#,6#198311-198903

main69802-89109iLN61,YN61..SSR198608-198903

W/POWER WINDOW

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-89108iLN5#,6#,YN5#,6#198311-198903

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-89108iLN5#,6#,YN5#,6#198311-198903

69971AFILLER, FRONT DOOR GLASS CHANNEL

main69971-89103×2iLN5#,6#,YN5#,6#198311-198903

9011908093

main90119-08093

9166140612

main91661-40612

14 parts on this diagram · 1 diagram in section
