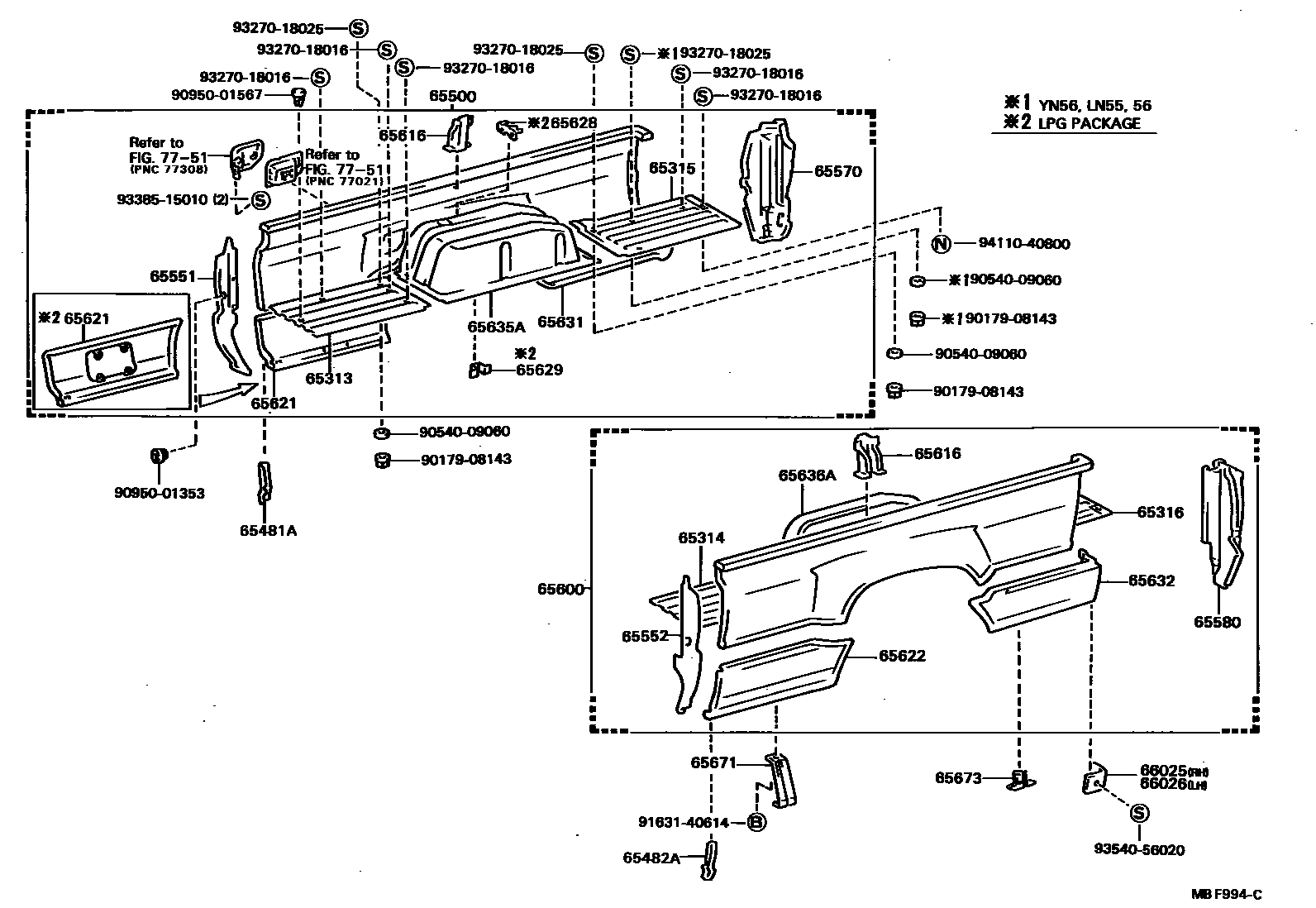

REAR BODY SIDE PANEL

0001 1 0002 1 0003 1 0004 1 0005 1

65313PANEL, FLOOR FRONT CORNER, RH

main65313-89112iLN50,51,60,YN51,60..T1198311-198808

main65313-89114iLN55,56,65,YN56,65..T1198311-198708

sub65313-89116

main65313-89116iLN56,65,YN56..T1198708-198808

65314PANEL, FLOOR FRONT CORNER, LH

main65314-89114iLN50,51,60,YN51,60..T1198311-198808

main65314-89116iLN55,56,65,YN56,65..T1198311-198708

sub65314-89118

main65314-89118iLN56,65,YN56..T1198708-198808

65315PANEL, FLOOR REAR CORNER, RH

main65315-89112iLN50,51198411-198808

main65315-89113iLN60,YN60..T1198311-198708

sub65315-89120

main65315-89115iLN55,56,YN56..T1,TW198311-198708

sub65315-89118

main65315-89116iLN65,YN65198311-198708

sub65315-89119

main65315-89118iLN56,YN56..T1,TW198708-198808

main65315-89119iLN65,YN65198708-198808

main65315-89120iLN60,YN60198708-198808

65316PANEL, FLOOR REAR CORNER, LH

main65316-89112iLN50,51,YN51198411-198808

main65316-89113iLN60,YN60..T1198311-198708

sub65316-89120

main65316-89115iLN55,56,YN56..T1,TW198311-198708

sub65316-89118

main65316-89116iLN65,YN65198311-198708

sub65316-89119

main65316-89118iLN56,YN56..T1,TW198708-198903

main65316-89119iLN65,YN65198708-198808

main65316-89120iLN60,YN60198708-198808

65481APROTECTOR, FRONT CORNER, RH

main65481-89108iLN5#,60,65,YN5#,60,65..T1198408-198808

65482APROTECTOR, FRONT CORNER, LH

main65482-89105iLN5#,60,65,YN5#,60,65..T1198408-198808

65500PANEL ASSY, REAR BODY SIDE, RH

main65500-89162iLN50,51,YN51198411-198808

main65500-89177iLN55,56,YN56..T1..DLX198411-198808

main65500-89178iLN55,56,YN56..SDX198311-198808

main65500-89193iLN60,YN60..T1198311-198808

main65500-89205iLN65,YN65..T1198311-198808

main65500-89209iLN55,56,YN56..SJL,T3198311-198808

main65500-89226iLN55,56,YN56..TW198312-198808

main65500-89230iLN65,YN65..TW198312-198808

65551PANEL, FRONT END POST INNER, RH

main65551-89108iLN5#,60,65,YN5#,60,65..T1198311-198808

main65551-89110iLN55,56,YN56..TW198312-198608

sub65551-89112

main65551-89111iLN65..TW198312-198608

sub65551-89113

main65551-89112iLN56,YN56..TW198608-198808

main65551-89113iLN65,YN65..TW198608-198808

65552PANEL, FRONT END POST INNER, LH

main65552-89108iLN5#,60,65,YN5#,60,65..T1198311-198808

main65552-89110iLN55,56,YN56..TW198312-198608

sub65552-89112

main65552-89111iLN65..TW198312-198608

sub65552-89113

main65552-89112iLN56,YN56..TW198608-198808

main65552-89113iLN65,YN65..TW198608-198808

65570POST ASSY, SIDE PANEL REAR END, RH

main65505-89101iLN5#,YN5#..(T1,TW)..DLX198312-198808

main65505-89102iLN60,65,YN60,65..T1,TW198311-198808

65580POST ASSY, SIDE PANEL REAR END, LH

main65506-89101iLN5#,YN5#..(T1,TW)..DLX198312-198808

main65506-89102iLN60,65,YN60,65..T1,TW198311-198808

65600PANEL ASSY, REAR BODY SIDE, LH

main65600-89165iLN55,56,YN56..SJL,T3198311-198808

main65600-89166iLN50,51,YN51198411-198808

main65600-89178iLN55,56,YN56..T1..DLX198411-198808

main65600-89179iLN55,56,YN56..SDX198311-198808

main65600-89192iLN60,YN60..T1198311-198808

main65600-89200iLN65,YN65..T1198311-198808

main65600-89203iLN55,56,YN56..TW198312-198808

main65600-89207iLN65,YN65..TW198312-198808

65616REINFORCEMENT, SIDE PANEL

main65545-89101iLN55,56,YN56..T1198311-198808

main65545-89102iLN65,YN65..T1198311-198808

65621SKIRT, SIDE PANEL, FRONT RH

main65621-89113iLN50,51,YN51198411-198808

main65621-89115iLN55,56,YN56..T1198311-198808

main65621-89117iLN60,YN60..T1198311-198808

main65621-89126iLN65,YN65..T1198311-198808

main65621-89127iLN55,56,YN56..TW198312-198808

65622SKIRT, SIDE PANEL, FRONT LH

main65622-89113iLN50,51,YN51198411-198808

main65622-89115iLN55,56,YN56..T1198312-198808

main65622-89117iLN60,YN60..T1198312-198808

main65622-89126iLN65,YN65..T1198312-198808

main65622-89127iLN55,56,YN56..TW198312-198808

65628BRACKET, FUEL INLET HOSE PROTECTOR, UPPER

main65628-89105iYN56..T1..LPG198411-198808

LPG PACKAGE

65629BRACKET, FUEL INLET HOSE PROTECTOR, SIDE

main65629-89105iYN56..T1..LPG198411-198808

LPG PACKAGE

65631SKIRT, SIDE PANEL, REAR RH

main65623-89110iLN50,51,YN51198411-198808

main65623-89113iLN55,56,YN56..T1,TW198311-198808

main65623-89116iLN60,YN60..T1198311-198808

main65623-89119iLN65,YN65198311-198808

65632SKIRT, SIDE PANEL, REAR, LH

main65624-89110iLN50,51,YN51198411-198808

main65624-89113iLN55,56,YN56..T1,TW198311-198808

main65624-89117iLN60,YN60..T1198311-198808

main65624-89120iLN65,YN65198311-198808

65635PLATE, REAR WHEEL HOUSE

main65631-89108iLN60,65,YN60,65..T1198311-198808

FR

main65635-89107iLN60,65,YN60,65..T1198311-198808

RR

65635APANEL, WHEEL HOUSE, REAR RH

main65635-89104iLN5#,YN5#..T1198311-198808

main65635-89105iLN60,65,YN60,65..T1198311-198808

65636APANEL, WHEEL HOUSE, REAR LH

main65636-89104iLN5#,YN5#..T1198311-198808

main65636-89105iLN60,65,YN60,65..T1198311-198808

65671BRACE, SIDE PANEL SKIRT, FRONT

main65671-89105iLN50,51,60,YN51,60..T1198311-198808

65673BRACE, SIDE PANEL SKIRT, REAR

main65608-89104iLN5#,YN5#198311-198808

RH

main65609-89102iLN5#,YN5#198311-198808

LH

main65673-89104iLN60,65,YN60,65..T1,TW198311-198808

RH

main65674-89104iLN60,65,YN60,65..T1198311-198808

LH

66025BUMPER SUB-ASSY, REAR BODY RUBBER, RH

main75916-89102iLN5#,60,65,YN5#,60,65..T1,TW198311-198808

66026BUMPER SUB-ASSY, REAR BODY RUBBER, LH

main75918-89102iLN5#,60,65,YN5#,60,65..T1,TW198311-198808

7751

9017908143

main90179-08143

9054009060

main90540-09060

9095001353

main90950-01353

9095001567

main90950-01567

9163140614

main91631-40614

9327018016

main93270-18016

9327018025

main93270-18025

9338515010

main93385-15010

9354056020

main93540-56020

9411040800

main94110-40800

37 parts on this diagram · 5 diagrams in section
