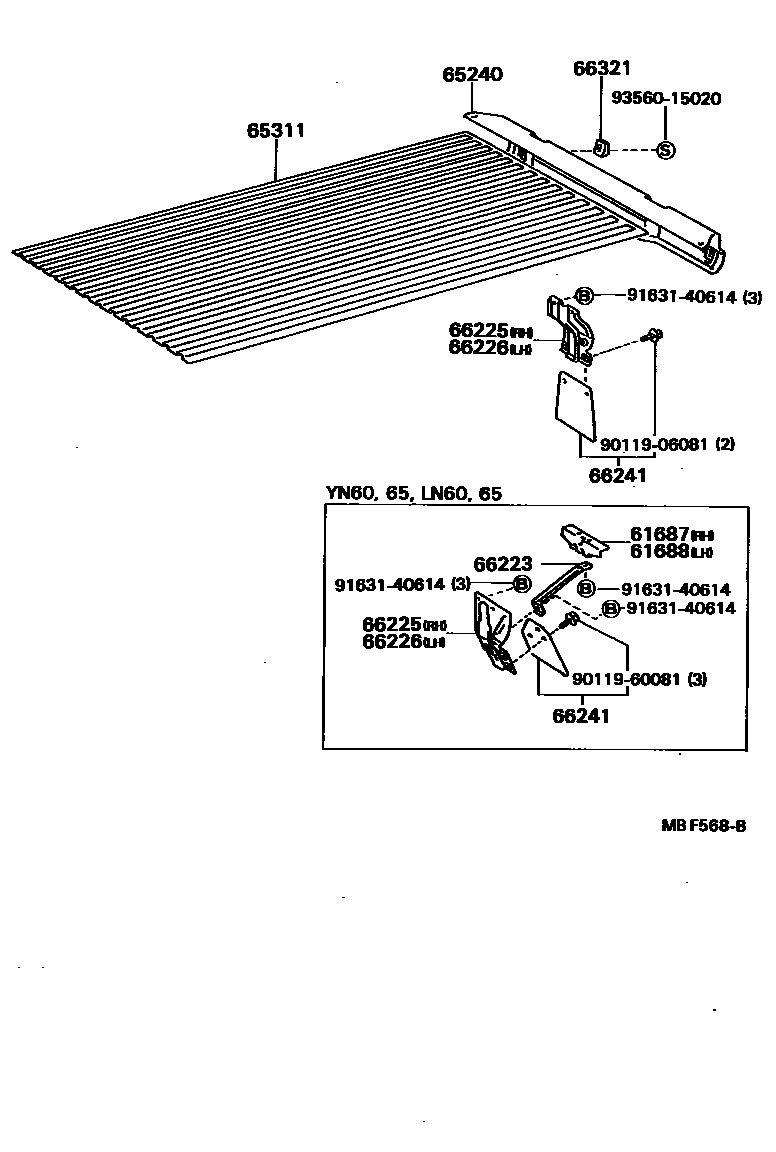

REAR BODY FLOOR & FENDER

0001 1 0002 1 0003 1 0004 1

61687BRACKET, MUDGUARD, REAR RH

main61687-89101iLN60,YN60198311-198312

main61687-89104iLN60,YN60..T1198312-198808

61688BRACKET, MUDGUARD, REAR LH

main61687-89101iLN60,YN60198311-198312

main61688-89101iLN60,YN60..T1198312-198808

65240CROSSMEMBER, REAR BODY FLOOR, TAIL

main65240-89116iLN5#,60,65,YN5#,60,65..T1,TW198311-198608

sub65240-89126

main65240-89126iLN5#,60,65,YN5#,60,65..T1,TW198608-198808

main65240-89127iLN56,YN56..SJL198701-198808

main65240-95701iLN55,56,YN56..T3198311-198808

65311PANEL, FLOOR, CENTER

main65311-89116iLN50,51,60,YN51,60..T1198311-198808

main65311-89118iLN55,56,65,YN56,65..T1198311-198808

main65311-89120iLN55,56,65,YN56,65..TW198312-198808

66223STAY, REAR FENDER REAR PLATE

main66299-89101iLN60,65,YN60,65..T1,TW198311-198808

66225SUPPORT, REAR MUDGUARD, RH

main76647-89101iLN5#,YN5#..T1,TW198311-198808

main76647-89102iLN60,65,YN60,65..T1,TW198311-198808

66226SUPPORT, REAR MUDGUARD, LH

main76648-89101iLN5#,YN5#..T1,TW198311-198808

main76648-89102iLN60,65,YN60,65..T1,TW198311-198808

66241MUDGUARD, REAR

main66241-39015iLN5#,YN56..T1,T3198311-198408

sub66241-39016

main66241-39015iLN55,YN56..TW198312-198408

RR

sub66241-39016

main66241-39016iLN51,56,YN5#..SJL,T1,T3198408-198808

RR

main76625-39075iLN65,YN65..TW198312-198808

RH RR

main76625-39075iLN60,65,YN60,65..T1198311-198808

RH

main76625-39095iLN55,56,65,YN56..TW198312-198808

FR

main76626-39075iLN60,65,YN60,65..T1198311-198808

LH

main76626-39075iLN65,YN65..TW198312-198808

LH RR

66321BUMPER, GATE RUBBER

main52208-89101iLN56,YN56..SJL198701-198808

SIDE

main65739-89101iLN60,YN60..T1198311-198808

W/RR BUMPER

main65739-89102iLN5#,60,65,YN5#,60,65..T1,TW198311-198808

main66303-87403iLN55,56,YN56..T3198311-198808

main66303-87403iLN56,YN56..SJL198701-198808

RR

9011906081

main90119-06081

9011960081

main90119-60081

9163140614

main91631-40614

9356015020

main93560-15020

13 parts on this diagram · 4 diagrams in section
