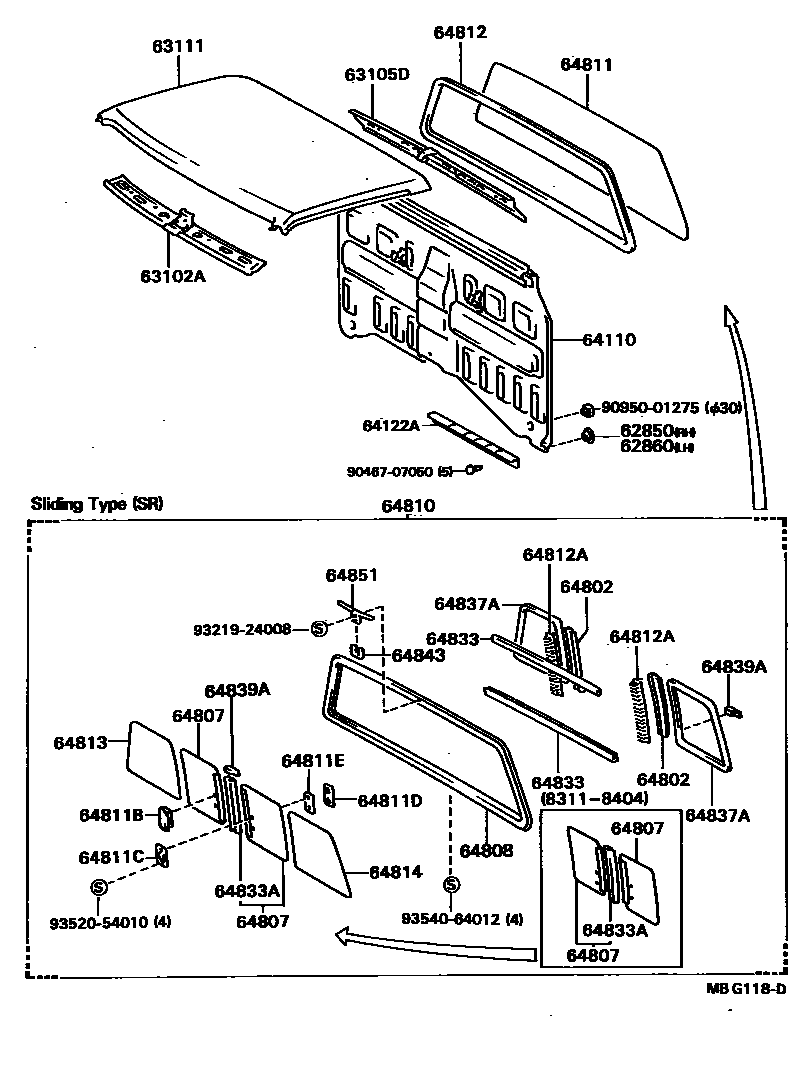

ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1

62850VALVE ASSY, ROOM PRESSURE RELIEF, RH

main62850-89101iLN5#,60,65,YN5#,60,65..SJL,T1,T3198311-198808

62860VALVE ASSY, ROOM PRESSURE RELIEF, LH

main62850-89101iLN5#,60,65,YN5#,60,65..SJL,T1,T3198311-198808

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-89102iLN5#,60,65,YN5#,60,65..SJL,T1,T3198311-198808

main63102-89103iLN55,56,65,YN56,65..TW198312-198808

63105REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR

main63141-89103iLN55,56,65,YN56,65..TW198312-198808

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-89101iLN5#,60,65,YN5#,60,65..SJL,T1,T3198311-198808

main63105-89103iLN55,56,65,YN56,65..TW198312-198808

main63105-89104iLN60,61,YN60,61..V,WG198405-198903

main63105-89105iLN60,61,YN60,61..V,WG198405-198903

W/MOON ROOF

63111PANEL, ROOF

main63111-89109iLN5#,60,65,YN5#,60,65..SJL,T1,T3198311-198808

main63111-89115iLN55,56,65,YN56,65..TW198312-198808

main63111-89116iLN60,61,YN60,61..V,WG198405-198903

main63111-89117iLN60,61,YN60,61..V,WG198405-198903

W/MOON ROOF

64110PANEL ASSY, FRONT BODY BACK

main64101-89121iLN5#,60,65,YN5#,60,65..SJL,T1,T3198311-198808

main64101-89124iLN55,56,65,YN56..TW198312-198608

main64101-89128iLN56,65,YN56,65..TW198608-198808

sub64101-89129

64122ABAFFLE, DUST REAR BODY

main64122-95110iLN50,51,60,YN51,60..T1198311-198808

main65457-89101iLN55,56,YN56..SJL,T3198311-198808

64802FRAME SUB-ASSY, BACK WINDOW FIX

main64881-89104×2iLN60,65,YN60,65..(T1,TW)..SR198311-198808

64807GLASS SUB-ASSY, BACK WINDOW SLIDE

main64807-89105iLN6#,YN60..SR198311-198404

RH,*TEM,T=3.5

main64807-89106iLN6#,YN60..SR198311-198404

LH,*TEM,T=3.5

main64807-89115iLN60,65,YN60,65..(T1,TW)..SR198404-198808

sub64807-89117

main64807-89116iLN60,65,YN60,65..(T1,TW)..SR198404-198808

sub64807-89118

64808CHANNEL SUB-ASSY, BACK WINDOW SLIDE GLASS

main64808-89103iLN60,65,YN60,65..(T1,TW)..SR198311-198808

64810WINDOW ASSY, BACK

main64810-89104iLN60,65,YN60,65..(T1,TW)..SR198311-198808

sub64810-89105

64811GLASS, BACK WINDOW

main64811-89119iLN5#,65,YN5#,65..DLX,SDX198311-198808

sub64811-89120

64811BLOCK ASSY, BACK WINDOW

main69370-89102iLN60,65,YN60,65..(T1,TW)..SR198311-198808

64811CCATCH, BACK WINDOW LOCK

main69374-89102iLN60,65,YN60,65..(T1,TW)..SR198311-198808

64811DRETAINER, BACK WINDOW

main69375-89102×2iLN60,65,YN60,65..(T1,TW)..SR198311-198808

64811EPACKING, BACK WINDOW LOCK

main69376-89102×2iLN60,65,YN60,65..(T1,TW)..SR198311-198808

64812WEATHERSTRIP, BACK WINDOW GLASS, NO.1

main64812-89106iLN5#,60,65,YN5#,60,65..SJL,T1,T3,TW198311-198808

64812AWEATHERSTRIP, BACK WINDOW GLASS, NO.2

main64834-89101×2iLN60,65,YN60,65..SR198805-198808

main64837-89102×2iLN60,65,YN60,65..(T1,TW)..SR198311-198805

64813GLASS, BACK WINDOW CORNER, RH

main64813-89101iLN60,65,YN60,65..(T1,TW)..SR198311-198808

64814GLASS, BACK WINDOW CORNER, LH

main64814-89101iLN60,65,YN60,65..(T1,TW)..SR198311-198808

64833WEATHERSTRIP, BACK WINDOW CHANNEL

main64833-89104iLN60,65,YN60,65..(T1,TW)..SR198311-198808

LWR

main64833-89105iLN60,65,YN60,65..(T1,TW)..SR198311-198808

UPR

64833AWEATHERSTRIP, BACK WINDOW CENTER CHANNEL

main64833-89106iLN6#,YN60..SR198311-198404

LH

main64833-89110iLN60,65,YN60,65..(T1,TW)..SR198404-198808

RH

64837AWEATHERSTRIP, BACK WINDOW CORNER

main64837-89101×2iLN60,65,YN60,65..(T1,TW)..SR198311-198808

64839APACKING, BACK WINDOW

main64839-89102×2iLN60,65,YN60,65..(T1,TW)..SR198311-198808

LWR

main64839-89103iLN60,65,YN60,65..(T1,TW)..SR198311-198808

UPR RH

main64839-89104iLN60,65,YN60,65..(T1,TW)..SR198311-198808

UPR LH

64843WEATHERSTRIP, BACK WINDOW CHANNEL

main64833-89109iLN60,65,YN60,65..(T1,TW)..SR198311-198808

64851STOP, BACK WINDOW SLIDE GLASS

main64851-89102iLN60,65,YN60,65..(T1,TW)..SR198311-198808

9046707050

main90467-07050

9095001275

main90950-01275

9321924008

main93219-24008

9352054010

main93520-54010

9354064012

main93540-64012

32 parts on this diagram · 3 diagrams in section
