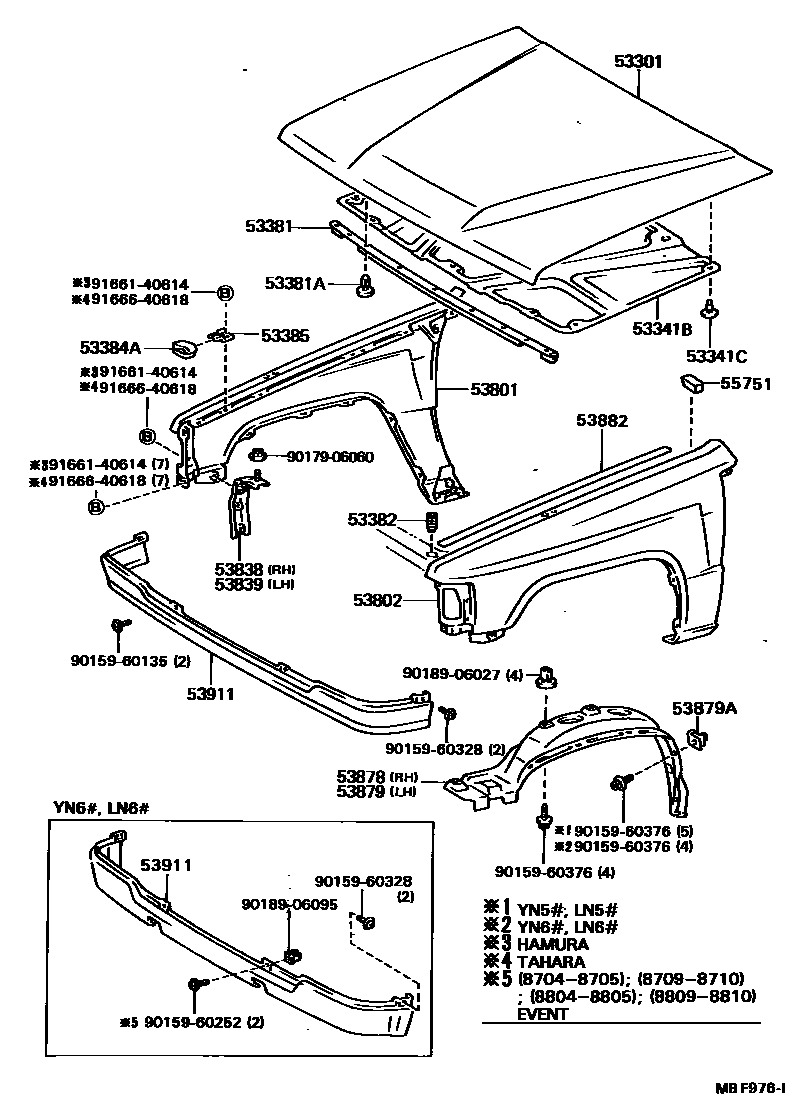

HOOD & FRONT FENDER

53301HOOD SUB-ASSY

main53301-89117iLN5#,6#,YN5#,6#198311-198608

main53301-89119iLN5#,6#,YN5#,6#198608-198903

53341BINSULATOR, HOOD

main53341-89102iLN5#,6#,YN5#..CBR,DSL198311-198508

main53341-89103iLN60..TD198411-198501

main53341-89104iLN5#,6#198508-198903

53341CCLIP(FOR HOOD INSULATOR)

main90467-09004-01×17iLN60..TD198501-198508

BLACK,BLACK

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-89103iLN5#,6#198311-198903

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×9iLN5#,6#198311-198903

53382BUMPER, HOOD, FRONT

main53382-89102×2iLN5#,6#,YN5#,6#198311-198903

53384ABUMPER, FENDER TO HOOD

main53384-14010×4iLN5#,6#,YN5#,6#198311-198903

53385RETAINER, HOOD, BUMPER

main53385-14010×2iLN5#,6#,YN5#,6#198311-198903

RH

main53386-14010×2iLN5#,6#,YN5#,6#198311-198903

LH

53801FENDER SUB-ASSY, FRONT RH

main53801-89169iLN5#,YN5#198311-198808

sub53801-89197

main53801-89172iLN6#,YN6#198608-198903

W/DOOR MIRROR

sub53801-89202

main53801-89174iLN6#,YN6#198311-198903

W/FENDER MIRROR

53802FENDER SUB-ASSY, FRONT LH

main53802-89163iLN5#,YN5#198311-198808

sub53802-89191

main53802-89166iLN6#,YN6#198311-198903

W/FENDER MIRROR

main53802-89173iLN6#,YN6#198608-198903

W/DOOR MIRROR

sub53802-89196

53838BRACE, FRONT FENDER, RH

main53835-89101iLN5#,YN5#198311-198808

main53835-89104iLN60,65,YN60,65198311-198808

main53905-89101iLN61,YN61198508-198903

53839BRACE, FRONT FENDER, LH

main53835-89101iLN5#,YN5#198311-198808

main53836-89102iLN60,65,YN60,65198311-198808

main53906-89101iLN61,YN61198508-198903

53878LINER, FRONT FENDER, RH

main53875-89103iLN5#,YN5#198311-198808

main53875-89104iLN6#,YN6#198311-198903

53879LINER, FRONT FENDER, LH

main53876-89103iLN5#,YN5#198311-198808

main53876-89104iLN6#,YN6#198311-198903

53879ARETAINER, FRONT FENDER LINER

main53879-22010×10iLN5#,YN5#198311-198808

53882PACKING, FRONT FENDER MAIN

main53882-89104×2iLN5#,6#,YN5#,6#198311-198903

main53882-89105×2iLN5#,6#,YN5#,6#198311-198805

PLANT.A51-A54

53911PANEL, FRONT VALANCE

main53911-89106iLN5#,YN5#198311-198808

main53911-89107iLN60,65,YN60,65198311-198808

main53911-89109iLN61,YN61198508-198903

W/WINCH

sub53911-89112

main53911-89110iLN61,YN61198508-198903

sub53911-89113

55751SHIELD, COWL VENTILATOR SPLASH

main55751-89104×2iLN5#,6#,YN5#,6#198311-198903

9015960135

main90159-60135

9015960252

main90159-60252

9015960328

main90159-60328

9015960376

main90159-60376

9017906060

main90179-06060

9018906027

main90189-06027

9018906095

main90189-06095

9166140614

main91661-40614

9166640618

main91666-40618

27 parts on this diagram · 1 diagram in section
