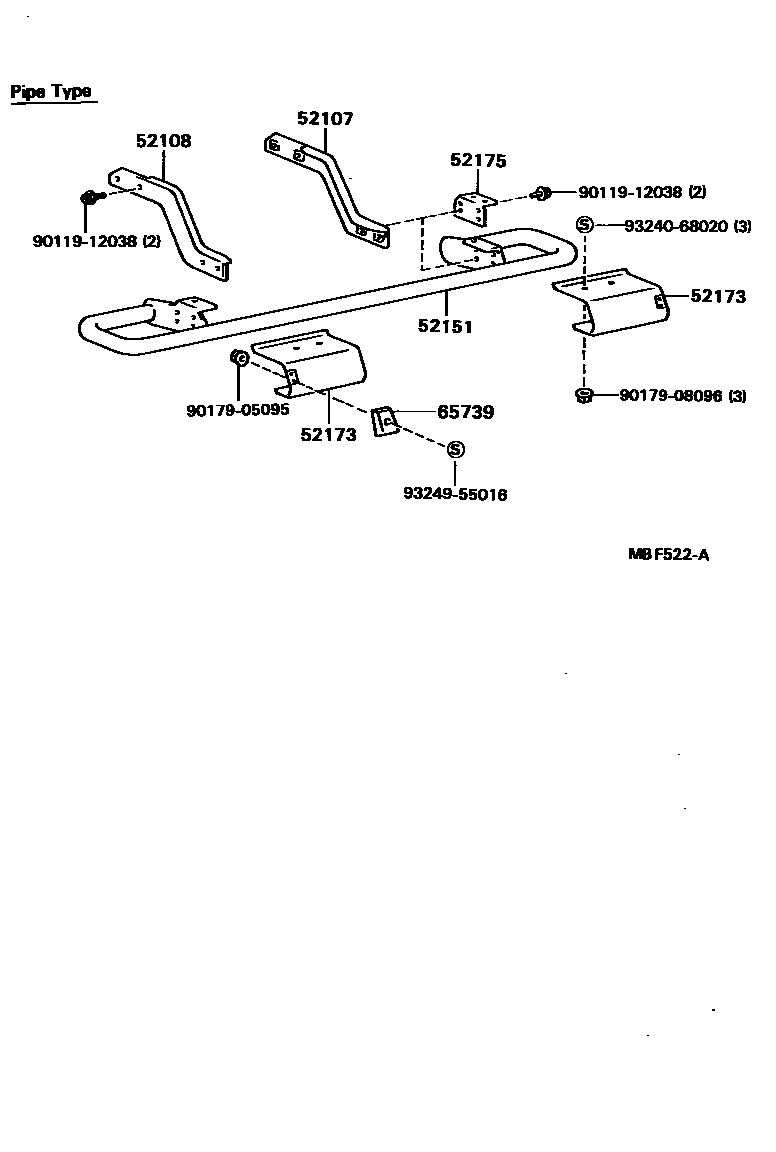

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52107STAY SUB-ASSY, REAR BUMPER, RH

main52015-89108iLN60,61,YN60,61..V,WG198405-198903

main52181-89111iLN60,YN60..T1198311-198808

52108STAY SUB-ASSY, REAR BUMPER, LH

main52016-89108iLN60,61,YN60,61..V,WG198405-198903

main52182-89108iLN60,YN60..T1198311-198808

52151BUMPER ASSY, REAR

main52105-89105iLN60,61,YN60,61..V198405-198608

sub52105-35904

main52105-89106iLN60,61,YN60,61..V,WG198405-198903

CHROME PLATED

main52105-89112iLN61,YN61..V198608-198903

main52105-95111iLN60,YN60..T1198311-198808

52173PLATE, REAR BUMPER, SIDE

main52163-89103iLN60,YN60..T1198311-198808

RH

main52164-89102iLN60,YN60..T1198311-198808

LH

52175BRACKET, REAR BUMPER ARM MOUNTING

main52175-95110iLN60,YN60..T1198311-198808

65739BUMPER, TAIL GATE

main65739-89101iLN60,YN60..T1198311-198808

9011912038

main90119-12038

9017905095

main90179-05095

9017908096

main90179-08096

9324068020

main93240-68020

9324955016

main93249-55016

11 parts on this diagram · 2 diagrams in section
