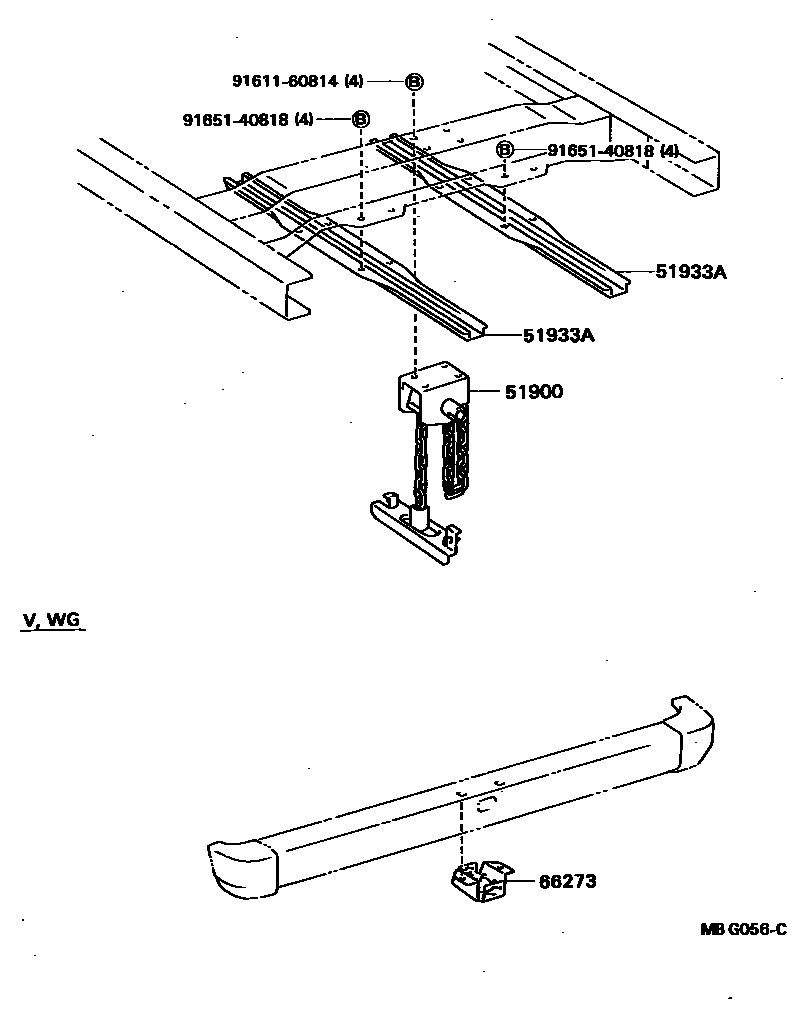

SPARE WHEEL CARRIER

0001 1 0002 1

51900CARRIER ASSY, SPARE WHEEL

main51900-35100iLN5#,YN5#198311-198508

main51900-35101iLN5#,YN5#198508-198808

main51900-35120iLN6#,YN6#198401-198508

main51900-35121iLN6#,YN6#198508-198903

sub51900-35390

main51900-35130iLN6#,YN6#198311-198401

main51903-89101iLN56,YN56..SJL198701-198808

W/DECK

51933ASTOPPER, SPARE WHEEL, NO.1

main51904-89102iLN56,YN56..SJL198701-198808

W/DECK

main51933-35040×2iLN5#,60,65,YN5#,60,65..SJL,T1,T3,TW198311-198808

sub51933-34010

main51933-35050×2iLN60,61,YN60,61..V,WG198405-198903

66273GUIDE, SPARE TIRE CARRIER

main52179-89107iLN60,61,YN60,61..V,WG198405-198903

9161160814

main91611-60814

9165140818

main91651-40818

5 parts on this diagram · 2 diagrams in section
