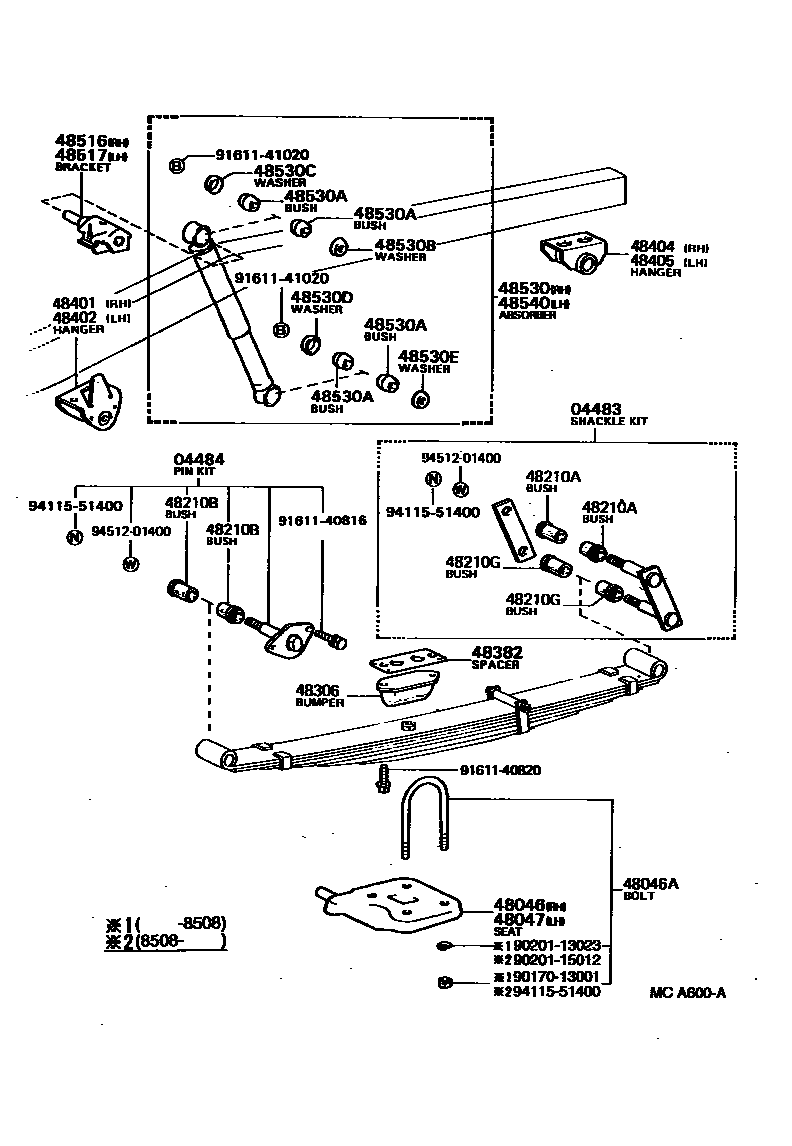

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

04483SHACKLE KIT, REAR SPRING

main04483-35040×2iLN5#,6#,YN5#,6#198311-198903

04484PIN KIT, REAR SPRING

main04482-35030×2iLN5#,6#,YN5#,6#198311-198903

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-35080iLN5#,YN5#198311-198508

main48046-35090iLN6#,YN6#198311-198508

main48046-35100iLN5#,YN5#..T1,T3,TW198508-198808

main48046-35120iLN61,YN61198803-198903

main48046-35130iLN56,YN56..SJL198701-198808

main48046-35170iLN60,65,YN60,65198803-198808

48046ABOLT, U(FOR REAR SPRING)

main90117-14007×4iLN61,YN61198808-198903

main90117-14008×4iLN60,65,YN60,65198608-198808

main90117-14042×4iLN61,YN61198608-198808

main90118-13215×4iLN5#,YN5#..T1,TW198311-198508

sub90117-13082

sub90170-13001

sub90201-13023

main90118-13216×4iLN5#,YN5#..T1198311-198508

6-LEAF SPRING

sub90117-13063

sub90170-13001

sub90201-13023

main90118-14204×4iLN56,YN56..SJL198701-198808

sub90117-14050

sub94115-51400

sub94611-11400

main90118-14211×4iLN60,YN60..V198405-198408

main90118-14214×4iLN60,65,YN60,65..T1,TW198311-198608

main90118-14222×4iLN60,YN60..V198408-198508

sub90201-15012

sub94115-51400

main90118-14226×4iLN5#,YN5#..T1,TW198508-198808

sub90117-14040

main90118-14227×4iLN56,YN56..T3198508-198808

6-LEAF SPRING

sub90117-14041

main90118-14230×4iLN61,YN61198508-198608

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48046-35080iLN5#,YN5#198311-198508

main48046-35090iLN6#,YN6#198311-198508

main48046-35100iLN5#,YN5#..T1,T3,TW198508-198808

main48046-35120iLN61,YN61198803-198903

main48046-35130iLN56,YN56..SJL198701-198808

main48046-35170iLN60,65,YN60,65198803-198803

48210SPRING ASSY, REAR RH

main48210-35250iLN5#,YN5#..T1198311-198508

main48210-35251iLN5#,YN5#..T1198508-198808

main48210-35290iLN55,YN56..T3198311-198508

main48210-35291iLN56,YN56..T1..IV198802-198808

TECS(FRPDECK)

main48210-35300iLN5#,YN5#..T1,TW198311-198508

main48210-35301iLN5#,YN5#..T1,TW198508-198808

main48210-35310iLN5#,YN5#..T1,TW198311-198508

W/185R14 TIRE

main48210-35311iLN5#,YN5#..T1,TW198508-198808

main48210-35320iLN6#,YN6#..T1,TW198311-198508

main48210-35350iLN60,YN60..V198405-198406

main48210-35380iLN60,YN60..V198406-198508

main48210-35450iLN60,65,YN60,65198508-198808

main48210-35480iLN61,YN61..V198508-198808

main48210-35481iLN61,YN61..V198808-198903

main48210-35570iYN61..EFI198608-198808

main48210-35571iYN61..EFI198808-198903

main48210-35580iLN56,YN56..SJL198701-198808

48210ABUSH(FOR REAR SPRING SHACKLE UPPER)

main90385-18046×4iLN5#,6#,YN5#,6#198311-198903

48210BBUSH(FOR REAR SPRING PIN)

main90385-18046×4iLN5#,6#,YN5#,6#198311-198903

48210GBUSH(FOR REAR SPRING SHACKLE LOWER)

main90385-18046×4iLN5#,6#,YN5#,6#198311-198903

48306BUMPER SUB-ASSY, REAR SPRING

main48306-35050×2iLN6#,YN6#..T1,TW198311-198508

main48306-35060×2iLN60,YN60..V198405-198406

main48306-35070×2iLN60,YN60..V198406-198508

main48306-35090×2iLN6#,YN6#198508-198903

main48341-35030×2iLN5#,YN5#..T1,TW198311-198508

H=70

main48341-35031×2iLN5#,YN5#..T1,TW198508-198808

H=70

main48341-35040×2iLN5#,YN5#198311-198508

H=80

main48341-35041×2iLN56,YN56..T1..IV198802-198808

TECS(FR PDECK)

48382SPACER, BUMPER BLOCK

main48382-35020×2iLN55,YN56..T3198311-198508

main48382-35021×2iLN56,YN56..T3198508-198808

main48382-35030×2iLN56,YN56..SJL198701-198808

48401BRACKET SUB-ASSY, REAR SPRING, FRONT RH

main48414-35070iLN5#,YN5#..T1,TW198311-198508

main48414-35071iLN5#,YN5#..T1,TW198508-198808

main48414-35100iLN55,YN56..T3198311-198508

main48414-35101iLN56,YN56..T3198508-198808

48402BRACKET SUB-ASSY, REAR SPRING, FRONT LH

main48414-35070iLN5#,YN5#..T1,TW198311-198508

main48414-35071iLN5#,YN5#..T1,TW198508-198808

main48414-35100iLN55,YN56..T3198311-198508

main48414-35101iLN56,YN56..T3198508-198808

48404BRACKET SUB-ASSY, REAR SPRING, REAR RH

main48416-35050iLN5#,YN5#..T1,TW198311-198508

main48416-35051iLN5#,YN5#..T1,TW198508-198808

main48416-35060iLN55,YN56..T3198311-198508

main48416-35061iLN56,YN56..T3198508-198808

48405BRACKET SUB-ASSY, REAR SPRING, REAR LH

main48416-35050iLN5#,YN5#..T1,TW198311-198508

main48416-35051iLN5#,YN5#..T1,TW198508-198808

main48416-35060iLN55,YN56..T3198311-198508

main48416-35061iLN56,YN56..T3198508-198808

48516BRACKET, REAR SHOCK ABSORBER, UPPER RH

main48505-35010iLN6#,YN6#198311-198508

main48505-35011iLN6#,YN6#198508-198811

main48505-35020iLN5#,YN56198311-198407

main48505-35021iLN5#,YN5#198407-198808

main48505-35040iLN61,YN61198811-198903

48517BRACKET, REAR SHOCK ABSORBER, UPPER LH

main48506-35010iLN6#,YN6#198311-198903

main48506-35020iLN5#,YN56198311-198407

main48506-35021iLN5#,YN5#198407-198808

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-39605iLN5#,YN5#198311-198808

sub48531-39606

main48531-39675iLN60,65,YN60,65..T1,TW198311-198903

sub48531-39676

main48531-39695iLN60,YN60..V198405-198508

sub48531-39696

main48531-39895iLN61,YN61198508-198903

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16007×8iLN5#,YN5#198311-198808

main90385-19002×8iLN6#,YN6#198312-198903

main90385-19057×8iLN6#,YN6#198311-198312

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03004×2iLN5#,YN5#198311-198808

main90948-03015×2iLN6#,YN6#198311-198903

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-03011×2iLN6#,YN6#198311-198903

main90948-03012×2iLN5#,YN5#198311-198903

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03011×2iLN6#,YN6#198311-198903

main90948-03012×2iLN5#,YN5#198311-198903

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004×2iLN5#,YN5#198311-198903

main90948-03015×2iLN6#,YN6#198311-198903

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-39605iLN5#,YN5#198311-198903

sub48531-39606

main48541-39025iLN60,65,YN60,65..T1,TW198311-198903

sub48541-39026

main48541-39035iLN60,YN60..V198405-198508

sub48541-39036

main48541-39055iLN61,YN61198508-198903

sub48541-39056

9017013001

main90170-13001

9020113023

main90201-13023

9020115012

main90201-15012

9161140816

main91611-40816

9161140820

main91611-40820

9161141020

main91611-41020

9411551400

main94115-51400

9451201400

main94512-01400

32 parts on this diagram · 6 diagrams in section
