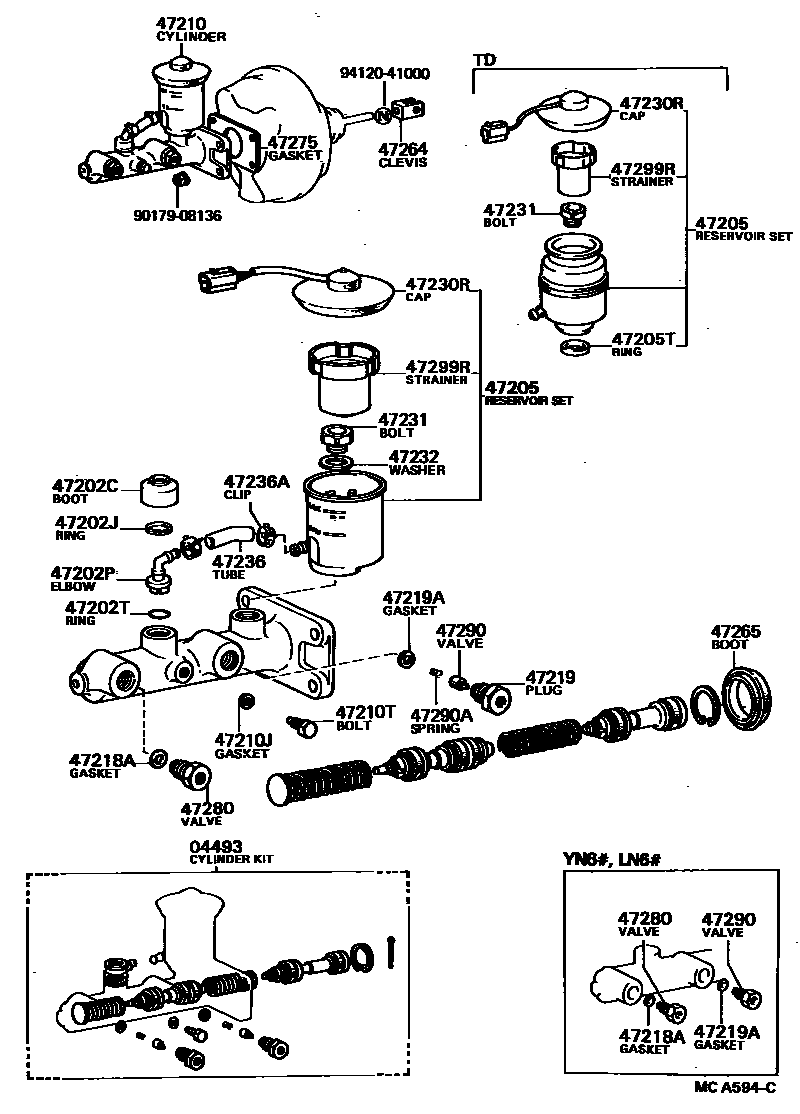

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-35130iLN6#,YN6#198311-198408

main04493-35150iLN5#,YN5#198311-198808

main04493-35190iLN6#,YN6#..CBR,DSL198408-198903

sub04493-35200

main04493-35200iLN60,61..TD198411-198903

47202CBOOT, RESERVOIR, NO.1(FOR BRAKE MASTER CYLINDER SIDE)

main47265-20060iLN5#,6#,YN5#,6#198311-198903

47202JRING, SNAP(FOR BRAKE MASTER CYLINDER SIDE)

main96151-02000iLN5#,6#,YN5#,6#198311-198903

47202PUNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE)

main90407-10003iLN5#,6#,YN5#,6#..CBR,DSL,EFI198311-198903

sub90407-10004

main90407-10004iLN60,61..TD198411-198903

47202TRING(FOR BRAKE MASTER CYLINDER RESERVOIR, NO.1)

main90301-14001iLN5#,6#,YN5#,6#198311-198903

47205RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE)

main47202-14270iLN5#,YN5#198311-198808

main47202-35060iLN6#,YN6#..CBR,DSL,EFI198311-198903

main47202-35160iLN60,61..TD198411-198903

47205TRING(FOR BRAKE MASTER CYLINDER RESERVOIR, NO.2)

main90562-18151iLN60,61..TD198411-198903

47210CYLINDER ASSY, MASTER, W/O BOOSTER

main47201-35340iLN6#,YN6#198311-198408

sub47201-35450

main47201-35370iLN5#,YN5#198311-198808

main47201-35440iLN61198411-198903

main47201-35450iLN60,65,YN6#198408-198903

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iLN5#,6#,YN5#,6#198311-198903

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iLN5#,6#,YN5#,6#198311-198903

47218AGASKET(FOR FLUID OUTLET PLUG)

main90430-09253iLN5#,6#,YN5#,6#198311-198903

47219PLUG, MASTER CYLINDER FLUID OUTLET(FOR REAR SIDE)

main47218-30030iLN5#,YN5#198311-198808

47219AGASKET(FOR FLUID OUTLET PLUG REAR SIDE)

main90430-09253iLN6#,YN6#198311-198903

main90430-11001iLN5#,YN5#198311-198808

47230RCAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE)

main84460-12011iLN5#,6#,YN5#,6#198311-198903

47231BOLT, BRAKE MASTER CYLINDER RESERVOIR SET

main47231-20010iLN60,61..TD198411-198903

main47231-30010iLN5#,6#,YN5#,6#..CBR,DSL,EFI198311-198903

47232WASHER, BRAKE RESERVOIR SET BOLT

main47232-30010iLN5#,6#,YN5#,6#..CBR,DSL,EFI198311-198903

47236TUBE, RESERVOIR BRAKE

main47234-14010iLN5#,6#,YN5#,6#198311-198903

47236ACLIP(FOR RESERVOIR TUBE)

main90467-16001iLN5#,6#,YN5#,6#198311-198903

sub96134-51500

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-22010iLN5#,6#,YN5#,6#198311-198903

47265BOOT, MASTER CYLINDER

main47265-20050iLN5#,6#,YN5#,6#198311-198903

47275GASKET, BRAKE MASTER CYLINDER

main47275-22010iLN60,61..TD198411-198903

main47275-24010iLN5#,60,65,YN5#,6#198311-198903

47280VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK

main47280-14010iLN60,61..TD198411-198903

main47280-30030iLN5#,6#,YN5#,6#..CBR,DSL198311-198903

sub47280-14010

47290VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE)

main47280-14010iLN60,61..TD198411-198903

main47280-30030iLN60,65,YN6#198311-198903

sub47280-14010

main47281-30020iLN5#,YN5#198311-198808

47290ASPRING, COMPRESSION(FOR FLUID OUTLET REAR SIDE)

main90504-05001iLN5#,YN5#198311-198808

47299RSTRAINER, MASTER CYLINDER RESERVOIR, REAR

main47299-14010iLN5#,6#,YN5#,6#198311-198903

9017908136

main90179-08136

9412041000

main94120-41000

27 parts on this diagram · 1 diagram in section
