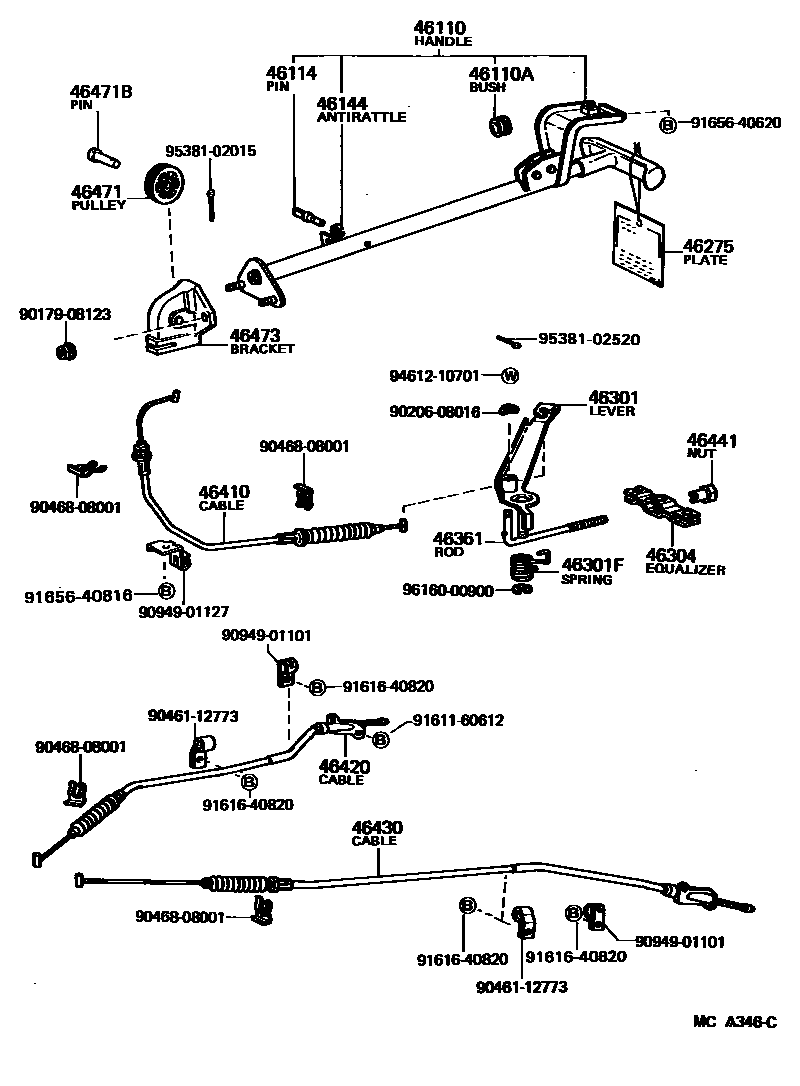

PARKING BRAKE & CABLE

0001 1 0002 1

46110HANDLE ASSY, PARKING BRAKE CONTROL

main46110-35150iLN5#,6#,YN56,6#198311-198408

main46110-35190iLN5#,6#,YN5#,6#198408-198903

46110ABUSH OR RING, O (FOR PARKING BRAKE PLUNGER)

main90386-12048iLN5#,6#,YN5#,6#198311-198903

46114PIN, PARKING BRAKE PLUNGER

main46114-20010iLN5#,6#,YN5#,6#198311-198903

46144ANTI-RATTLE, PARKING BRAKE PLUNGER

main46144-20010iLN5#,6#,YN5#,6#198311-198903

46275PLATE, PARKING BRAKE RELEASE CAUTION

main46275-26010iLN5#,6#,YN5#,6#198411-198903

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46301-35130iLN5#,YN5#198311-198808

main46301-35140iLN60,65,YN60,65198311-198808

main46301-35150iLN61,YN61198508-198903

46301FSPRING, TORSION(FOR PARKING BRAKE INTERMEDIATE LEVER)

main90508-32008iLN5#,YN5#198311-198808

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-22020iLN5#,YN5#198311-198808

main46341-35030iLN6#,YN6#198311-198903

46361ROD, PARKING BRAKE PULL

main46361-35050iLN5#,YN5#198311-198808

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-35230iYN5#198311-198808

main46410-35240iLN5#198311-198808

main46410-35270iYN65198311-198808

main46410-35280iYN60198311-198808

main46410-35290iLN65198311-198808

main46410-35300iLN60198311-198808

main46410-35350iYN61198508-198903

main46410-35360iLN61198508-198903

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-35230iLN55,56,YN56..T1,T3,TW198311-198808

main46420-35240iLN50,51,YN51198411-198808

main46420-35250iLN60,65,YN60,65..T1,TW198311-198808

main46420-35280iLN60,YN60..V198405-198508

main46420-35310iLN61,YN61198508-198903

main46420-35330iLN56,YN56..SJL198701-198704

sub46420-35331

main46420-35331iLN56,YN56..SJL198704-198808

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-35200iLN55,56,YN56..T1,T3,TW198311-198808

main46430-35210iLN50,51,YN51198411-198808

main46430-35240iLN56,YN56..SJL198701-198808

46441NUT, WIRE ADJUSTING, NO.1

main46441-30030iLN6#,YN6#198311-198903

main46441-35010iLN5#,YN5#198311-198808

46471PULLEY, WIRE

main46471-20010iLN5#,6#,YN5#,6#198311-198903

46471BPIN, W/HOLE(FOR WIRE PULLEY SET)

main90240-08070iLN5#,6#,YN5#,6#198311-198903

46473BRACKET, PULLEY

main46473-35020iLN5#,6#,YN5#,6#198311-198903

9017908123

main90179-08123

9020608016

main90206-08016

9046112773

main90461-12773

9046808001

main90468-08001

9094901101

main90949-01101

9094901127

main90949-01127

9161160612

main91611-60612

9161640820

main91616-40820

9165640620

main91656-40620

9165640816

main91656-40816

9461210701

main94612-10701

9538102015

main95381-02015

9538102520

main95381-02520

9616000900

main96160-00900

30 parts on this diagram · 2 diagrams in section
