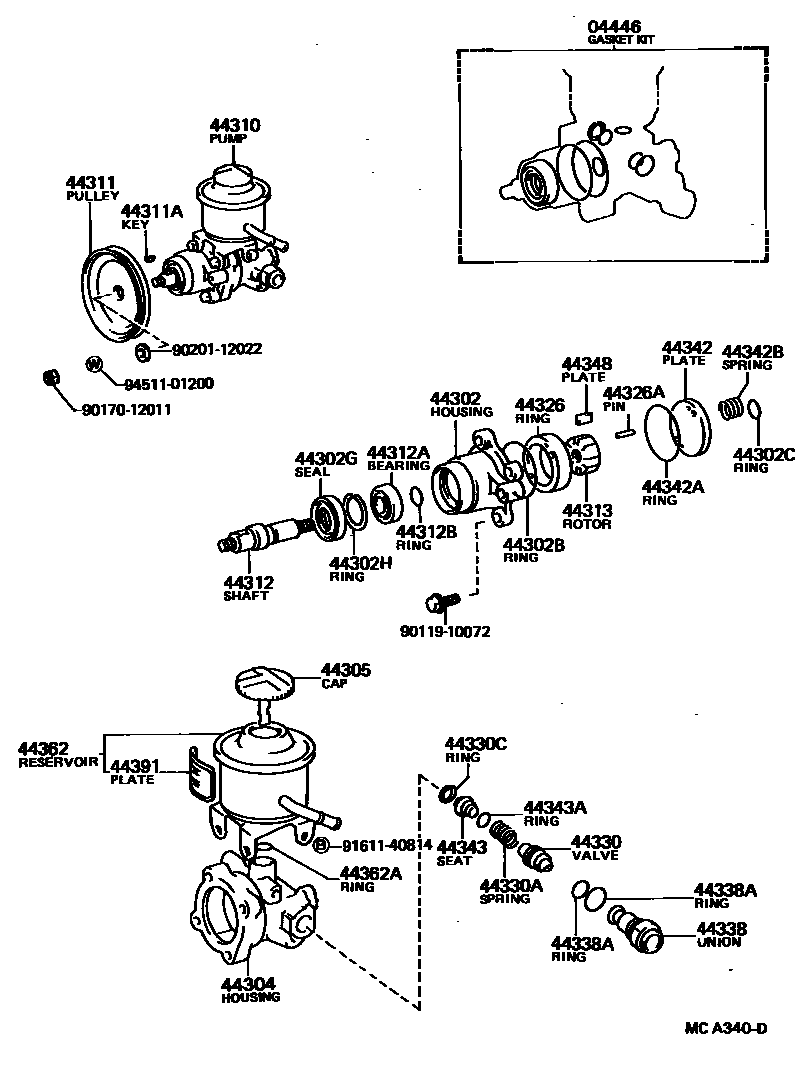

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1

04446GASKET KIT, POWER STEERING PUMP

main04446-35010iYN6#198311-198903

sub04446-30030

main04446-35030iLN6#..SR198311-198508

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-14010iYN6#198311-198903

main44302-22020iLN6#..SR,SSR198508-198903

main44302-30020iLN6#..SR198311-198508

44302BRING, O, NO.1(FOR VANE PUMP HOUSING)

main90301-60001iYN65;LN6#,YN60,61..SR,SSR198311-198903

main90301-69170iLN6#..SR198311-198508

44302CRING, O, NO.2(FOR VANE PUMP HOUSING)

main96711-19016iYN6#198311-198903

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90311-24001iYN65;LN6#,YN60,61..SR,SSR198311-198903

44302HRING, SNAP, NO.1(FOR VANE PUMP HOUSING)

main90521-44002iYN6#198311-198903

44304HOUSING SUB-ASSY, VANE PUMP, REAR

main44304-27010iYN6#198311-198312

sub44304-27011

sub90105-10092

main44304-27011iYN6#198312-198508

sub44304-28020

main44304-28011iYN61..EFI198608-198610

sub44304-28012

sub44343-12040

sub90501-12103

main44304-28012iYN61..EFI198610-198903

main44304-28020iYN6#..CBR198508-198610

sub44304-28021

sub44343-12040

sub90501-12103

main44304-28021iYN6#..CBR198610-198903

main44304-30040iLN6#..SR198311-198508

main44304-30050iLN6#198508-198610

sub44304-30051

sub44343-12040

sub90501-12103

main44304-30051iLN6#198610-198903

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-22040iLN61,YN61198810-198903

sub44305-22060

main44305-30020iLN6#,YN6#198311-198810

sub44305-22040

44310PUMP ASSY, VANE

main44320-35050iLN6#..SR..DSL198311-198508

main44320-35060iYN6#198311-198312

sub44320-35061

sub90105-10092

main44320-35061iYN6#198312-198608

main44320-35150iLN60..TD198411-198508

main44320-35170iLN6#..SR,SSR198508-198903

main44320-35190iYN6#..CBR198608-198903

main44320-35200iYN61..EFI198608-198903

44311PULLEY, VANE PUMP

main44311-12010iYN6#198311-198903

main44311-30040iLN6#..SR,SSR198311-198903

44311AKEY, VANE PUMP PULLEY

main90280-05008iLN6#,YN6#198311-198903

44312SHAFT, VANE PUMP

main44312-12010iYN65;LN6#,YN60,61..SR,SSR198311-198903

44312ABEARING(FOR VANE PUMP SHAFT)

main90363-17004iYN6#198311-198903

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90520-15001iYN6#198311-198903

44313ROTOR, VANE PUMP

main44313-12010iYN6#198311-198810

sub44313-22040

main44313-12020iYN6#198311-198810

sub44313-22050

main44313-12030iLN6#,YN6#198311-198810

sub44313-22060

main44313-12040iYN6#198311-198810

sub44313-22070

main44313-12050iYN6#198311-198810

sub44313-22080

main44313-22040iLN61,YN61198810-198903

main44313-22050iLN61,YN61198810-198903

main44313-22060iLN61,YN61198810-198903

main44313-22070iLN61,YN61198810-198903

main44313-22080iLN61,YN61198810-198903

44326RING, CAM(FOR VANE PUMP)

main44325-12010iYN65;LN6#,YN60,61..SR,SSR198311-198903

main44325-12020iLN6#,YN6#198311-198903

main44325-12030iYN65;LN6#,YN60,61..SR,SSR198311-198903

main44325-12040iYN65;LN6#,YN60,61..SR,SSR198311-198903

main44325-12050iLN6#,YN6#198311-198903

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main90250-05008iYN6#198311-198903

44330VALVE ASSY, FLOW CONTROL

main44330-35010iLN6#..SR198311-198508

MARK A

main44330-35020iLN6#..SR198311-198508

MARK B

main44330-35030iLN6#..SR198311-198508

MARK C

main44330-35040iLN6#..SR198311-198508

MARK D

main44330-35050iLN6#..SR198311-198508

MARK E

main44330-35060iLN6#..SR198311-198508

MARK F

main44330-35070iYN6#198311-198903

sub44330-32070

main44330-35080iYN65;LN6#,YN60,61..SR,SSR198311-198903

sub44330-32080

main44330-35090iYN65;LN6#,YN60,61..SR,SSR198311-198903

sub44330-32090

main44330-35100iYN65;LN6#,YN60,61..SR,SSR198311-198903

sub44330-32100

main44330-35110iYN65;LN6#,YN60,61..SR,SSR198311-198903

sub44330-32110

main44330-35120iYN65;LN6#,YN60,61..SR,SSR198311-198903

sub44330-32120

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-12103iLN6#,YN6#198610-198903

main90501-12447iYN65;LN6#,YN60,61..SR,SSR198311-198610

44330CRING, SNAP(FOR FLOW CONTROL VALVE)

main96151-01700iYN65;LN60,65,YN60..SR198311-198903

44338UNION, PRESSURE PORT

main44308-35020iYN65;LN6#,YN60,61..SR,SSR198311-198903

main44308-60010iLN6#..SR198311-198508

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-22001iYN6#198311-198903

main96711-19014iLN6#,YN6#198311-198903

main96711-19014iYN6#198311-198508

44342PLATE, VANE PUMP SIDE, REAR

main44341-12010iYN6#198311-198903

main44341-30020iLN6#..SR198311-198508

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90301-53002iYN6#198311-198903

44342BSPRING, COMPRESSION(FOR VANE PUMP SIDE PLATE REAR)

main90501-23014iLN6#,YN6#198311-198903

44343SEAT, FLOW CONTROL SPRING

main44343-12010iYN65;LN6#,YN60,61..SR,SSR198311-198610

main44343-12040iLN6#,YN6#198610-198903

44343ARING, O(FOR FLOW CONTROL SPRING SEAT)

main96711-19014iYN65;LN6#,YN60,61..SR,SSR198311-198903

44348PLATE, VANE PUMP

main44345-12010iLN6#,YN6#198311-198903

main44345-12020iLN6#,YN6#198311-198903

main44345-12030iLN6#,YN6#198311-198903

main44345-12040iYN6#198311-198903

main44345-12050iYN6#198311-198903

44362RESERVOIR, OIL(FOR VANE PUMP)

main44306-35040iYN6#198311-198608

main44306-35090iYN6#198608-198810

sub44306-35140

sub44305-22040

main44306-35140iYN61198810-198903

main44360-35041iLN6#198311-198903

44362ARING, O(FOR VANE PUMP OIL RESERVOIR)

main96711-19013iYN6#198311-198903

44391PLATE, POWER STEERING OIL RESERVOIR CAUTION

main44391-14010iLN6#,YN6#198610-198810

main44391-30020iYN65;LN6#,YN60,61..SR,SSR198311-198610

9011910072

main90119-10072

9017012011

main90170-12011

9020112022

main90201-12022

9161140814

main91611-40814

9451101200

main94511-01200

36 parts on this diagram · 3 diagrams in section
