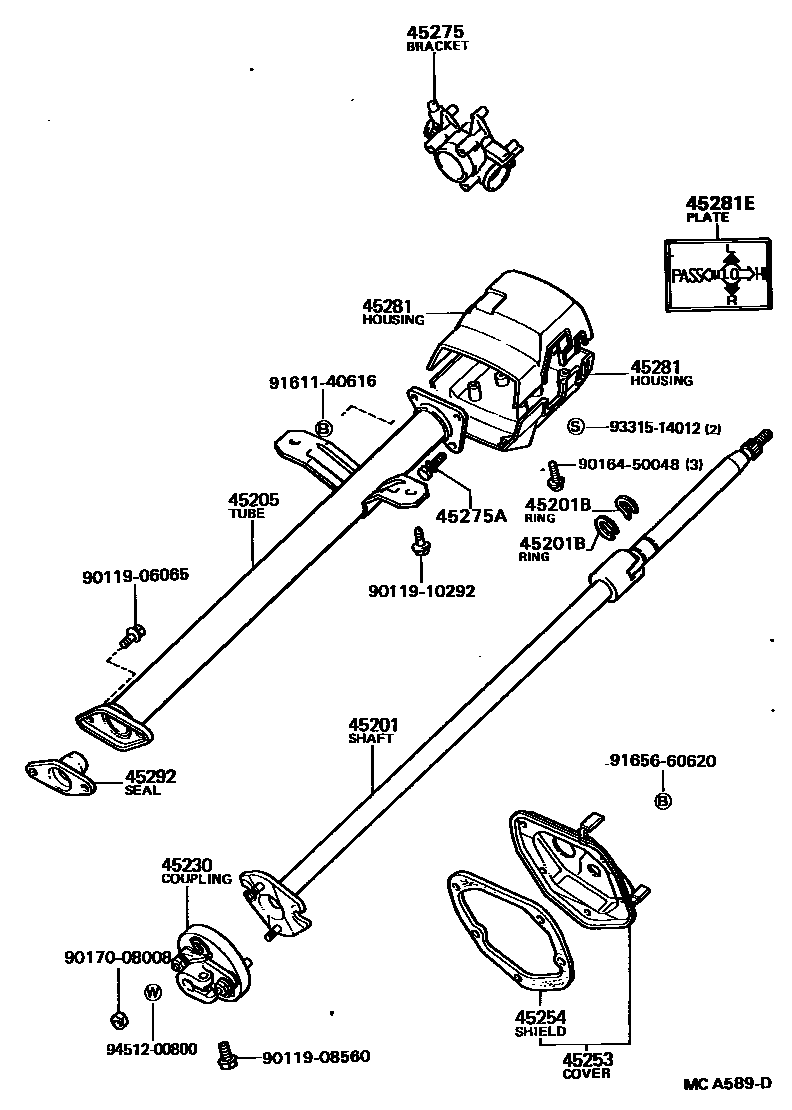

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

45201SHAFT SUB-ASSY, STEERING MAIN

main45201-35170iLN5#,YN5#198311-198808

main45210-22050iLN6#,YN6#..SR,SSR198311-198903

main45210-35110iLN65,YN65..DLX198311-198508

main45210-35111iLN65,YN65..DLX198508-198808

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iLN5#,6#,YN5#,6#198311-198903

main90520-17269iLN5#,65,YN5#,65..DLX,SDX198311-198903

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-35190iLN5#,YN5#198311-198808

main45205-35200iLN65,YN65..DLX198311-198508

main45205-35201iLN65,YN65..DLX198508-198808

main45205-35210iLN6#,YN60..SR198311-198508

main45205-35211iLN6#,YN6#..(SR,SSR)..(CBR,DSL,TD)198508-198903

main45870-35081iYN61..EFI198608-198903

45230COUPLING ASSY, FLEXIBLE

main45230-35020iLN5#,YN5#198311-198808

main45230-35040iLN6#,YN6#198311-198508

45253COVER, STEERING COLUMN HOLE

main45025-35060iLN6#,YN6#198311-198508

main45025-35061iLN6#,YN6#..CBR,DSL,TD198508-198903

main45025-35080iLN5#,YN5#..MTM198311-198510

sub45025-35081

main45025-35081iLN5#,YN5#..5H198510-198808

main45025-35090iLN56..4FC198311-198510

main45025-35091iLN56..4FC198510-198808

main45025-35130iYN61..EFI198608-198903

45254SHIELD, STEERING COLUMN HOLE

main45254-35010iYN61..EFI198608-198903

main45254-35020iLN6#,YN6#..CBR,DSL,TD198311-198903

main45254-35030iLN5#,YN5#198311-198808

45275BRACKET, STEERING COLUMN, UPPER

main45280-28040iLN6#,YN6#..SR,SSR198311-198708

main45280-28041iLN6#,YN6#..SR,SSR198708-198903

sub45280-28090

main45280-35150iLN5#,65,YN5#,65..DLX,SDX198311-198708

main45280-35151iLN5#,65,YN5#..DLX,SDX198708-198808

45275ABOLT, HEXAGON(FOR STEERING COLUMN BRACKET)

main45897-12030iLN56..4FC198608-198808

45281HOUSING, STEERING COLUMN

main45286-35190iLN56,65,YN65..(4FC,5F)..(DLX,SDX)198311-198608

UPR

main45286-35190-03iLN56,65..(4FC,5F)..(DLX,SDX)198608-198808

UPR,GRAY,GRAY,TRIM1#

sub45286-35190

main45286-35190-04iLN56,65..(4FC,5F)..(DLX,SDX)198608-198808

UPR,BLUE,BLUE,TRIM8#

sub45286-35190

main45286-35190-05iLN56,65..(4FC,5F)..(DLX,SDX)198608-198808

UPR,BEIGE,BEIGE,TRIM4#

sub45286-35190

main45286-35200iYN5#..4H198411-198508

UPR

main45286-35210iLN5#,YN5#..MTM198311-198608

UPR

main45286-35210-03iLN5#,YN5#..5H198608-198808

UPR,GRAY,GRAY,TRIM1#

sub45286-35210

main45286-35210-04iLN5#,YN5#..5H198608-198808

UPR,BLUE,BLUE,TRIM8#

sub45286-35210

main45286-35210-05iLN5#,YN5#..5H198608-198808

UPR,BEIGE,BEIGE,TRIM4#

sub45286-35210

main45286-35240iLN6#,YN60,61..SR,SSR198311-198608

UPR

main45286-35240-03iLN6#,YN6#..SR,SSR198608-198903

UPR,GRAY,GRAY,TRIM1#

sub45286-35240

main45286-35240-04iLN60,65,YN60..SR198608-198903

UPR,BLUE,BLUE,TRIM8#

sub45286-35240

main45286-35240-05iLN61,YN61..SSR198608-198903

UPR,BEIGE,BEIGE,TRIM4#

sub45286-35240

main45287-35140iLN6#,YN60,61..SR,SSR198311-198608

LWR

main45287-35140-03iLN6#,YN6#..SR,SSR198608-198903

LWR,GRAY,GRAY,TRIM1#

sub45287-35140

main45287-35140-04iLN60,65,YN60..SR198608-198903

LWR,BLUE,BLUE,TRIM8#

sub45287-35140

main45287-35140-05iLN61,YN61..SSR198608-198903

LWR,BEIGE,BEIGE,TRIM4#

sub45287-35140

main45287-35150iLN56,65,YN65..(4FC,5F)..(DLX,SDX)198311-198608

LWR

main45287-35150-03iLN56,65..(4FC,5F)..(DLX,SDX)198608-198808

LWR,GRAY,GRAY,TRIM1#

sub45287-35150

main45287-35150-04iLN56,65..(4FC,5F)..(DLX,SDX)198608-198808

LWR,BLUE,BLUE,TRIM8#

sub45287-35150

main45287-35150-05iLN56,65..(4FC,5F)..(DLX,SDX)198608-198808

LWR,BEIGE,BEIGE,TRIM4#

sub45287-35150

main45287-35160iLN5#,YN5#..MTM198311-198608

LWR

main45287-35160-03iLN5#,YN5#..5H198608-198808

LWR,GRAY,GRAY,TRIM1#

sub45287-35160

main45287-35160-04iLN5#,YN5#..5H198608-198808

LWR,BLUE,BLUE,TRIM8#

sub45287-35160

main45287-35160-05iLN5#,YN5#..5H198608-198808

LWR,BEIGE,BEIGE,TRIM4#

sub45287-35160

45281EPLATE, SAFETY CAUTION

main45283-22010iLN5#,6#,YN5#,6#198311-198903

45292SEAL, MAIN SHAFT LOWER DUST

main45292-35021iLN50,55,56,YN5#198311-198808

main45292-35030iLN6#,YN6#198311-198508

main45292-60050iLN6#,YN6#..CBR,DSL,TD198508-198903

9011906065

main90119-06065

9011908560

main90119-08560

9011910292

main90119-10292

9016450048

main90164-50048

9017008008

main90170-08008

9161140616

main91611-40616

9165660620

main91656-60620

9331514012

main93315-14012

9451200800

main94512-00800

20 parts on this diagram · 6 diagrams in section
