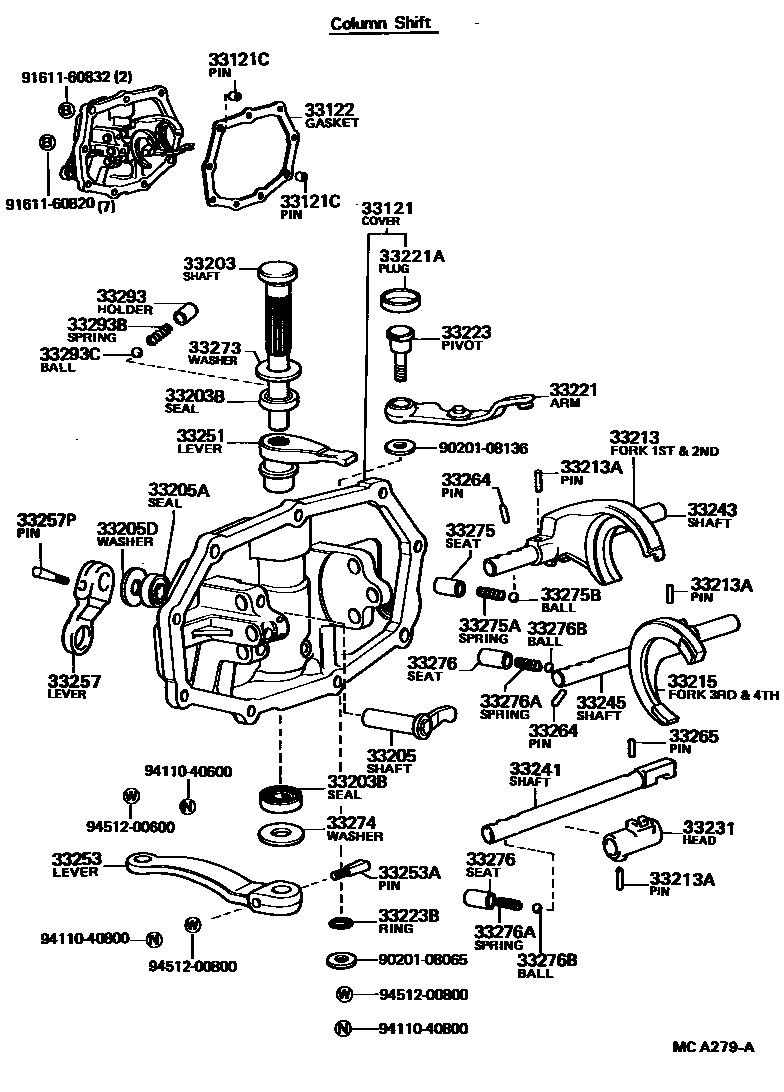

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1 0002 1LPG PACKAGE 0003 1 0004 1 0005 1

33121COVER, MANUAL TRANSMISSION CASE

main33102-35040iYN5#..4H198311-198508

33121CPIN(FOR TRANSMISSION CASE COVER)

main90253-11001×2iYN5#..4H198311-198508

33122GASKET, MANUAL TRANSMISSION CASE COVER

main33122-30020iYN5#..4H198311-198508

33203SHAFT SUB-ASSY, SHIFT LEVER, NO.1

main33261-30020iYN5#..4H198311-198508

33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)

main90311-13050iYN5#..4H198311-198508

UPR

main90311-18002iLN5#,YN5#..5H198311-198808

main90312-15003iYN5#..4H198311-198508

LWR

33205SHAFT SUB-ASSY, SELECT LEVER

main33262-26010iYN5#..4H198311-198508

main33262-28020iLN5#,YN5#..5H198311-198808

33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)

main90313-13001iLN5#,YN5#..MTM198311-198808

33205DWASHER(FOR OUTER LEVER OIL SETTING)

main94612-11300iLN51,55,56,YN5#..MTM198311-198808

33213FORK, 1ST & 2ND SHIFT

main33212-22020iLN60,61..TD198411-198903

sub33212-30050

main33212-26030iLN5#,YN5#..5H198501-198808

main33212-28010iYN5#..4H198311-198508

main33212-28021iLN50,55,YN5#..5H198311-198501

sub90105-06143

main33212-35022iLN6#,YN6#..CBR,DSL198311-198501

sub90105-06143

main33212-35023iLN6#,YN6#..5F..(CBR,DSL,EFI)198501-198903

33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)

main90254-05001×5iLN5#,6#,YN5#,6#..MTM..(CBR,DSL,EFI)198311-198903

main90254-05016iLN60,61..TD198411-198903

33215FORK, 3RD & 4TH SHIFT

main33213-22030iLN60,61..TD198411-198903

sub33213-22040

main33213-26020iYN5#..4H198311-198508

main33213-28011iLN5#,YN5#..5H198311-198808

sub33220-26010

sub33364-26020

main33213-35031iLN6#,YN6#..CBR,DSL198311-198501

sub33213-35033

sub33364-26020

sub90105-06143

main33213-35032iLN6#,YN6#..5F..(CBR,DSL,EFI)198501-198903

sub33213-35033

sub33364-26020

33221ARM, REVERSE SHIFT

main33221-22010iLN60,61..TD198411-198511

main33221-22011iLN61..TD198511-198903

main33221-28010iLN5#,6#,YN5#,6#..(5F,5H)..(CBR,DSL,EFI)198311-198903

main33221-30010iYN5#..4H198311-198508

33221APLUG, TIGHT(FOR REVERSE SHIFT ARM)

main96411-12500iYN5#..4H198311-198508

sub96411-42500

33223PIVOT, SHIFT ARM

main33223-30011iYN5#..4H198311-198508

33223BRING, O(FOR SHIFT ARM PIVOT)

main90301-08001iYN5#..4H198311-198508

33231HEAD, REVERSE SHIFT

main33231-22010iLN60,61..TD198411-198510

main33231-22011iLN61..TD198510-198903

main33231-26010iYN5#..4H198311-198508

main33231-28010iLN5#,YN5#..5H198311-198808

sub33231-28020

sub33220-26010

sub33232-28020

sub33364-26020

main33231-35040iLN6#,YN6#..5F..(CBR,DSL,EFI)198311-198903

sub33231-35070

sub33214-35040

sub33244-35050

sub33245-35080

sub33395-26020

sub90105-06143

33241SHAFT, REVERSE SHIFT FORK

main33241-26010iYN5#..4H198311-198508

main33244-22020iLN60,61..TD198411-198903

main33244-28010iLN5#,YN5#..5H198311-198805

main33244-28011iLN5#,YN5#..5H198805-198808

main33244-35020iLN6#,YN6#..5F..(CBR,DSL,EFI)198311-198805

main33244-35021iLN6#,YN61..5F..(CBR,DSL,EFI)198805-198903

sub33244-35050

sub33214-35040

sub33231-35070

sub33245-35080

sub33395-26020

sub90105-06143

33243SHAFT, 1ST & 2ND SHIFT FORK

main33242-22020iLN60,61..TD198411-198903

main33242-26010iYN5#..4H198311-198508

main33242-26020iLN5#,YN5#..5H198501-198808

main33242-28010iLN50,55,YN5#..5H198311-198501

sub90105-06143

main33242-35020iLN6#,YN6#..CBR,DSL198311-198501

main33242-35021iLN6#,YN6#..5F..(CBR,DSL,EFI)198501-198805

main33242-35022iLN6#,YN61..5F..(CBR,DSL,EFI)198805-198903

33245SHAFT, 3RD & 4TH SHIFT FORK

main33240-22020iLN60,61..TD198411-198903

sub33240-22021

main33243-26010iYN56198311-198410

main33243-35040iLN6#,YN6#..CBR,DSL198311-198501

main33243-35041iLN6#,YN6#..5F..(CBR,DSL,EFI)198501-198805

main33243-35042iLN6#,YN61..5F..(CBR,DSL,EFI)198805-198903

main33243-35050iLN5#,YN5#..5H198311-198805

main33243-35051iLN5#,YN5#..5H198805-198808

main33243-35060iYN5#..4H198410-198508

33251LEVER, SHIFT & SELECT

main33251-26010iYN5#..4H198311-198508

main33251-28011iLN5#,YN5#..5H198311-198808

sub33251-28012

main33251-35070iLN60,61..TD198411-198903

sub33251-35071

sub90109-08305

main33261-35080iLN6#,YN6#..5F..(CBR,DSL,EFI)198311-198903

sub33261-35081

sub90109-08305

33253LEVER, SHIFT OUTER, NO.1

main33253-35060iYN5#..4H198311-198508

main33253-35070iLN5#,YN5#..5H198311-198808

33253APIN, LEVER LOCK (FOR SHIFT OUTER LEVER)

main33281-16020iYN5#..4H198412-198508

main33281-30010iYN5#..4H198311-198412

33257LEVER, SELECT OUTER

main33257-35060iYN5#..4H198311-198508

main33257-35070iLN5#,YN5#..5H198311-198808

33257PPIN, SELECT OUTER LEVER LOCK

main33282-35010iYN5#..4H198311-198508

33264PIN, OR BALL, SHIFT INTERLOCK, NO.1

main33264-22010iLN60,61..TD198411-198903

main33264-30010×2iYN5#..4H198311-198508

main90360-10003iLN5#,6#,YN5#,6#..(5F,5H)..(CBR,DSL,EFI)198311-198903

main90361-10002iLN5#,6#,YN5#,6#..(5F,5H)..(CBR,DSL,EFI)198311-198903

main90361-10003iLN5#,6#,YN5#,6#..(5F,5H)..(CBR,DSL,EFI)198311-198903

33265PIN, SHIFT INTERLOCK, NO.2

main33265-22010iLN60,61..TD198411-198903

main33265-30010iYN5#..4H198311-198508

main33266-22010iLN60,61..TD198411-198903

main90250-05020×2iLN5#,6#,YN5#,6#..MTM..(CBR,DSL,EFI)198311-198903

main90250-06007iLN60,61..TD198411-198903

33273WASHER, SHIFT LEVER SHAFT HOUSING, NO.1

main90201-15137iYN5#..4H198311-198508

33274WASHER, SHIFT LEVER SHAFT HOUSING, NO.2

main94612-11300iYN5#..4H198311-198508

33275SEAT, SHIFT DETENT BALL SPRING, NO.1

main33275-10010iYN5#..4H198311-198508

main90341-12004iLN60,61..TD198411-198710

main90341-12008×5iLN5#,6#,YN5#,6#..(5F,5H)..(CBR,DSL,EFI)198311-198903

main90341-12014iLN61..TD198710-198903

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main90501-10061iLN6#,YN6#..5F..(CBR,DSL,EFI)198311-198903

main90501-13004iLN60,61..TD198411-198903

sub90501-14123

main90501-14061iLN5#,6#,YN5#,6#..(5F,5H)..(CBR,DSL,EFI)198311-198903

sub90501-14123

main90501-14062×3iLN5#,6#,YN5#,6#..(5F,5H)..(CBR,DSL,EFI)198311-198903

sub90501-14132

main90501-14090iYN56..4H198410-198508

main90501-14638iYN56198311-198410

33275BBALL, SHAFT DETENT

main90360-10003×5iLN5#,6#,YN5#,6#..MTM198311-198903

33276SEAT, SHIFT DETENT BALL SPRING, NO.2

main33275-10010×2iYN5#..4H198311-198508

main90341-12005×2iLN60,61..TD198411-198903

sub90341-12018

33276ASPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)

main90501-13004×2iLN60,61..TD198411-198903

sub90501-14123

main90501-14090×2iYN5#..4H198410-198508

main90501-14638×2iYN56198311-198410

33276BBALL, SHIFT DETENT, NO.2

main90360-10003×2iLN60,61,YN5#..(4H,5F)..(CBR,TD)198311-198903

33293HOLDER, REVERSE RESTRICT BALL

main33276-10010iYN5#..4H198311-198508

33293BSPRING, COMPRESSION (FOR REVERSE RESTRICT BALL)

main90501-14007iYN5#..4H198311-198508

33293CBALL (FOR REVERSE RESTRICT)

main90360-10003iYN5#..4H198311-198508

9020108065

main90201-08065

9020108136

main90201-08136

9161160820

main91611-60820

9161160832

main91611-60832

9411040600

main94110-40600

9411040800

main94110-40800

9451200600

main94512-00600

9451200800

main94512-00800

45 parts on this diagram · 5 diagrams in section
