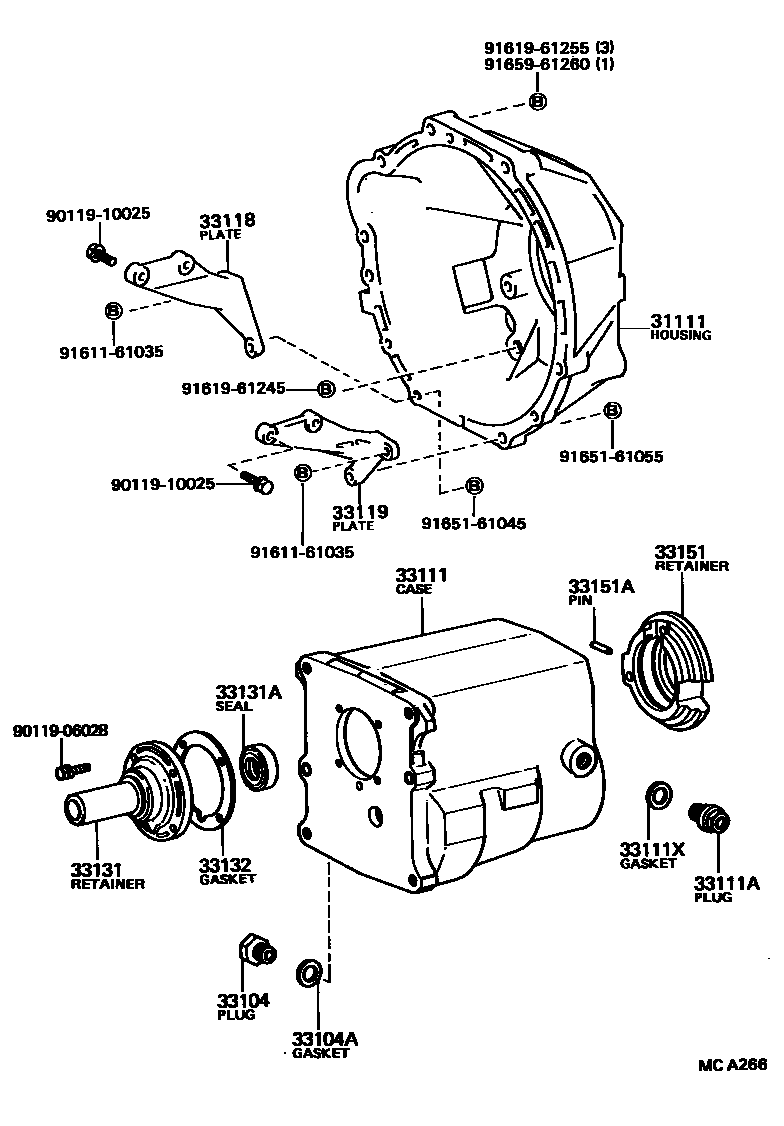

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1 0004 1 0005 1

31111HOUSING, CLUTCH

main31111-22111iLN5#..5H198311-198808

sub31111-22112

main31111-28010iYN5#..4H198311-198508

main31111-30180iYN5#,6#..5F,5H198311-198903

main31111-35030iLN6#198508-198903

sub31111-35031

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18021iLN50,51,55,YN5#..5H198502-198808

main90341-18057iLN50,55,6#,YN5#,6#198311-198903

33104AGASKET, DRAIN PLUG(MTM)

main90430-18007iLN55,6#,YN56,6#198311-198408

sub90430-18008

main90430-18008iLN5#,6#,YN5#,6#..MTM198408-198903

33111CASE, MANUAL TRANSMISSION

main33101-22030iLN60,61..TD198411-198903

sub33101-22031

main33101-28010iLN5#,YN5#..5H198311-198808

sub33101-35060

main33101-35020iLN6#,YN6#..5F..(CBR,DSL,EFI)198311-198808

sub33101-35070

main33101-35070iLN61,YN61..5F..(CBR,DSL,EFI)198808-198903

main33111-35031iYN5#..4H198311-198508

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18002iLN60,61..TD198411-198903

main90341-18006iLN5#,YN5#..MTM198311-198808

main90341-18019iLN6#,YN6#..5F..(CBR,DSL,EFI)198311-198903

33111XGASKET, TRANSMISSION CASE PLUG

main90430-18007iLN55,6#,YN56,6#198311-198408

sub90430-18008

main90430-18008iLN61..TD198408-198903

33118PLATE, STIFFENER, RH(MTM)

main33118-25020iLN50,55,6#198311-198808

main33118-28010iYN5#,6#..MTM198311-198903

main33118-35030iLN6#198508-198903

sub33118-35031

33119PLATE, STIFFENER, LH(MTM)

main33119-25020iLN5#,6#..MTM198311-198903

main33119-28010iYN5#,6#..MTM198311-198903

33131RETAINER, BEARING, FRONT(MTM)

main33131-20050iYN5#..4H198311-198508

main33131-22020iLN60,61..TD198411-198808

sub33131-22021

main33131-22021iLN61..TD198808-198903

main33131-26020iLN5#,6#,YN5#,6#..(5F,5H)..(CBR,DSL,EFI)198401-198903

main33131-28010iLN55,6#,YN6#198311-198312

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30010iLN61,YN61..5F..(CBR,DSL,EFI)198808-198903

sub90311-30014

main90311-30115iLN5#,6#,YN5#,6#..5F,5H198311-198903

main90311-32106iYN5#..4H198311-198508

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-22010iLN60,61..TD198411-198808

main33132-28010iLN5#,6#,YN5#,6#..(5F,5H)..(CBR,DSL,EFI)198311-198903

main33132-30030iYN5#..4H198311-198508

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33107-22010iLN60,61..TD198411-198903

main33151-26010iYN5#..4H198311-198508

main33151-28010iLN5#,6#,YN5#,6#..(5F,5H)..(CBR,DSL,EFI)198311-198808

main33151-35030iLN61,YN61..5F..(CBR,DSL,EFI)198808-198903

33151APIN, SLOTTED SPRING(FOR OUTPUT SHAFT REAR BEARING RETAINER)

main90254-05005iYN5#..4H198311-198508

9011906028

main90119-06028

9011910025

main90119-10025

9161161035

main91611-61035

9161961245

main91619-61245

9161961255

main91619-61255

9165161045

main91651-61045

9165161055

main91651-61055

9165961260

main91659-61260

21 parts on this diagram · 4 diagrams in section
