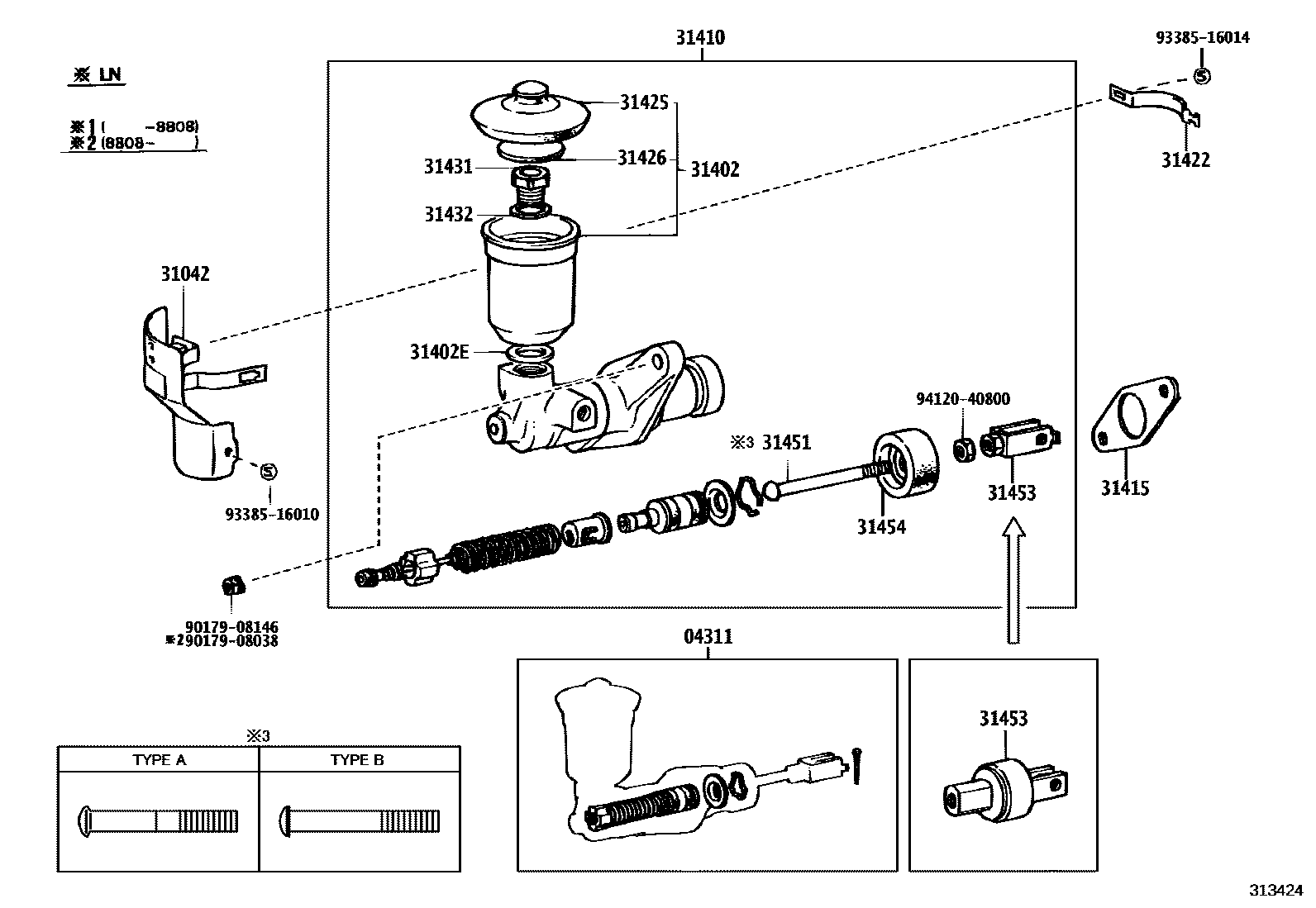

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-14011iLN50,55,6#,YN5#,6#..CBR,DSL198311-198611

main04311-14030iLN5#,6#,YN5#,6#..MTM198611-198704

sub04311-14031

main04311-14031iLN5#,6#,YN5#,6#..MTM198704-198710

sub04311-14032

main04311-14032iLN5#,6#,YN5#,6#..MTM198710-198903

sub04311-28010

main04311-30080iLN5#,6#,YN6#..MTM198411-198611

sub04311-14020

31042INSULATOR SUB-ASSY, MASTER CYLINDER HEAT

main31042-35010iLN60,61..TD198411-198903

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-30030iLN5#,6#,YN5#,6#..MTM..(CBR,DSL,EFI)198311-198903

main31402-35020iLN60,61..TD198411-198903

sub31402-30061

31402ERING(FOR CLUTCH MASTER CYLINDER RESERVOIR)

main90562-18151iLN60,61..TD198411-198903

31410CYLINDER ASSY, CLUTCH MASTER

main31410-22140iLN5#,6#,YN6#..MTM..(CBR,DSL,EFI)198508-198704

main31410-24012iLN50,55,6#..DSL198311-198508

sub31410-22140

main31410-35130iYN5#,6#198311-198704

sub31410-35131

main31410-35131iYN5#198704-198710

sub31410-35132

main31410-35132iYN5#198710-198808

sub31410-35142

main31410-35150iLN60,61..TD198411-198704

sub31410-35151

main31410-35151iLN61..TD198704-198710

sub31410-35152

main31410-35152iLN61..TD198710-198903

sub31410-35153

main31410-35180iYN61..EFI198704-198710

main31410-35181iYN61..EFI198710-198903

sub31410-22142

main31410-35240iLN5#,6#,YN6#..MTM..(CBR,DSL)198706-198903

sub31410-35241

main31410-35241iLN5#,6#..MTM..DSL198710-198903

sub31410-22240

31415GASKET, CLUTCH MASTER CYLINDER

main31415-10010iLN61,YN61198808-198903

main31415-30030iLN5#,6#,YN5#,6#..MTM198311-198808

31422BRACKET, CLUTCH RESERVOIR

main31422-35010iLN60,61..TD198411-198903

31425CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iLN5#,6#,YN5#,6#..MTM198311-198903

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iLN5#,6#,YN5#,6#..MTM198311-198903

31431BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-30010iLN5#,6#,YN5#,6#..MTM198311-198903

31432WASHER, CLUTCH RESERVOIR SET BOLT

main47232-30010iLN5#,6#,YN5#,6#..MTM..(CBR,DSL,EFI)198311-198903

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-20050iYN5#,6#198311-198611

main31451-22060iYN5#198611-198808

main31451-22070iLN5#,6#,YN6#..MTM198611-198903

main31451-30060iLN5#,6#,YN6#..MTM198311-198611

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-28011iYN61..EFI198411-198809

sub31404-28012

main31404-28012iYN61..EFI198809-198903

main31404-30041iLN50,55,6#..DSL198311-198508

main31404-30050iLN5#,6#,YN6#..MTM..(CBR,DSL,TD)198706-198903

sub31404-30051

main31453-22010iYN5#,6#198311-198509

sub31453-35010

main31453-35010iYN5#198509-198808

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iYN5#,6#198311-198808

main31454-24010iLN50,55,6#198311-198903

9017908038

main90179-08038

9017908146

main90179-08146

9338516010

main93385-16010

9338516014

main93385-16014

9412040800

main94120-40800

19 parts on this diagram · 1 diagram in section
