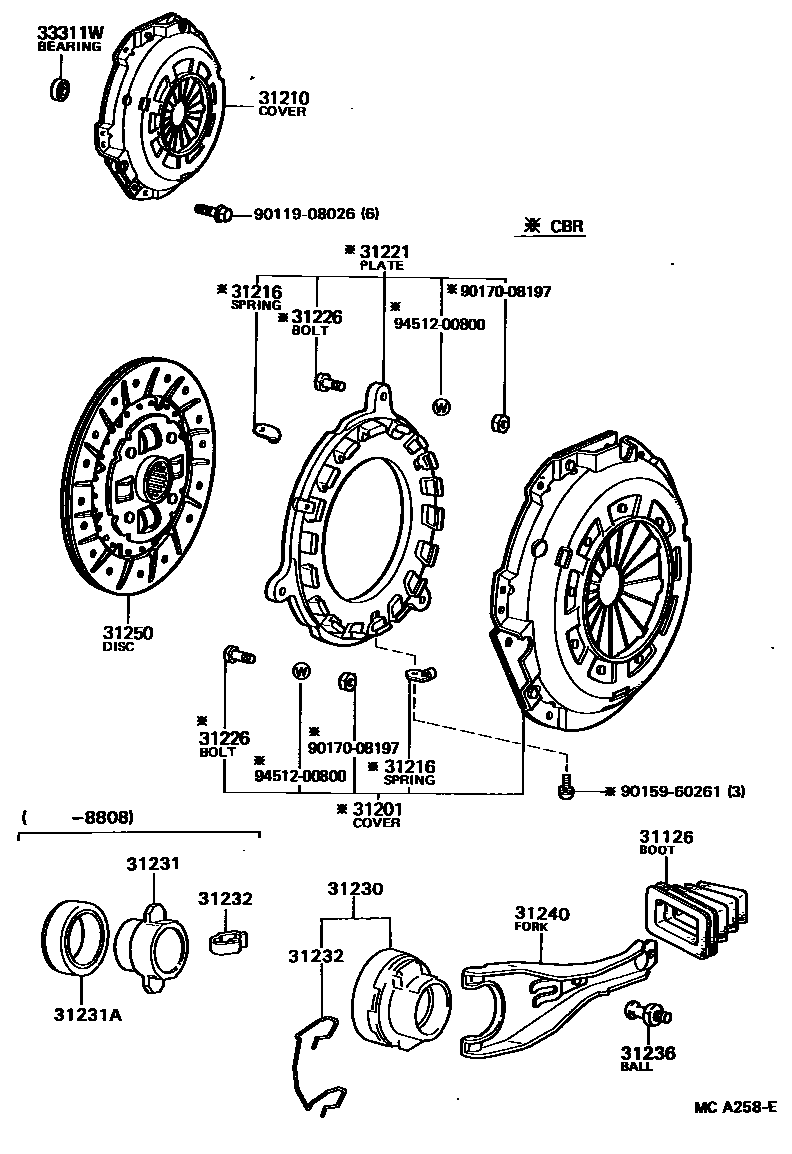

CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20060iYN5#,6#..MTM198311-198903

main31126-20070iLN5#,6#..MTM198311-198903

31201COVER SUB-ASSY, CLUTCH

main31201-19095iLN51,56,6#..MTM..DSL198311-198808

sub31201-14110

main31201-29085iLN50,55,YN5#198311-198702

sub31201-26010

main31201-29115iLN60,61..TD198411-198808

sub31201-24010

main31201-39146iYN6#..CBR198311-198701

sub31201-30121

31210COVER ASSY, CLUTCH

main31210-14130iLN51,56,6#..MTM..DSL198311-198903

sub31210-35090

main31210-24010iLN60,61..TD198411-198903

sub31210-24011

main31210-30191iYN6#..CBR198311-198701

sub31210-26050

main31210-35060iYN61..5F..EFI198608-198701

sub31210-26100

main31210-35080iYN5#198702-198808

sub31210-22120

main31210-36029iLN50,55,YN5#198311-198702

sub31210-36200

31216SPRING, CLUTCH RETRACTING

main31216-14010×3iYN6#..CBR198311-198701

main31216-30010×3iLN5#,6#,YN5#..MTM198311-198702

31221PLATE, CLUTCH PRESSURE

main31221-39056iLN5#,6#,YN5#..MTM..(CBR,DSL)198311-198808

sub31221-36025

main31221-39115iLN60,61..TD198411-198808

sub31221-30100

main31221-39135iYN6#..CBR198311-198811

sub31221-30120

31226BOLT, CLUTCH PRESSURE PLATE

main90101-08022×3iLN5#,6#,YN5#,6#..MTM..(CBR,DSL,TD)198311-198701

31230BEARING ASSY, CLUTCH RELEASE

main31230-35070iLN61198808-198903

sub31230-35071

main31230-35090iYN61198808-198903

sub31230-35091

31231HUB, CLUTCH RELEASE BEARING

main31231-20090iLN5#,6#..MTM198311-198808

main31231-36070iYN5#,6#..MTM198311-198808

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40022iLN5#,6#,YN5#,6#..MTM198311-198808

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-22010×2iLN5#,6#,YN5#,6#..MTM198311-198808

main31232-35020iLN61,YN61198808-198903

NSK BEARING

main31232-35030iLN61198808-198903

KOYO BEARING

main31232-35040iYN61198808-198903

KOYO BEARING

31236BALL, RELEASE FORK

main31236-30060iLN5#,6#,YN5#,6#..MTM198311-198903

31240FORK ASSY, CLUTCH RELEASE

main31204-20070iYN5#,6#198311-198511

sub31204-20072

main31204-20071iYN5#,6#..MTM198511-198903

main31204-20090iLN5#,6#..MTM198311-198808

main31204-35050iLN61198808-198903

31250DISC ASSY, CLUTCH

main31250-20130iYN5#198311-198508

sub31250-20131

main31250-26090iYN5#198508-198702

main31250-26091iYN5#198702-198808

main31250-30350iLN5#,6#..MTM198411-198605

main31250-30351iLN5#,6#..MTM198605-198612

main31250-35101iLN6#198311-198411

main31250-35120iYN6#198311-198712

main31250-35121iYN6#198712-198903

sub31250-35380

main31250-35150iLN61..TD198612-198706

main31250-35151iLN61..TD198706-198903

sub31250-35200

main31250-35170iLN61..DSL198808-198903

sub31250-60151

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iLN5#,6#,YN5#,6#..MTM198311-198903

sub90363-12024

9011908026

main90119-08026

9015960261

main90159-60261

9017008197

main90170-08197

9451200800

main94512-00800

18 parts on this diagram · 2 diagrams in section
