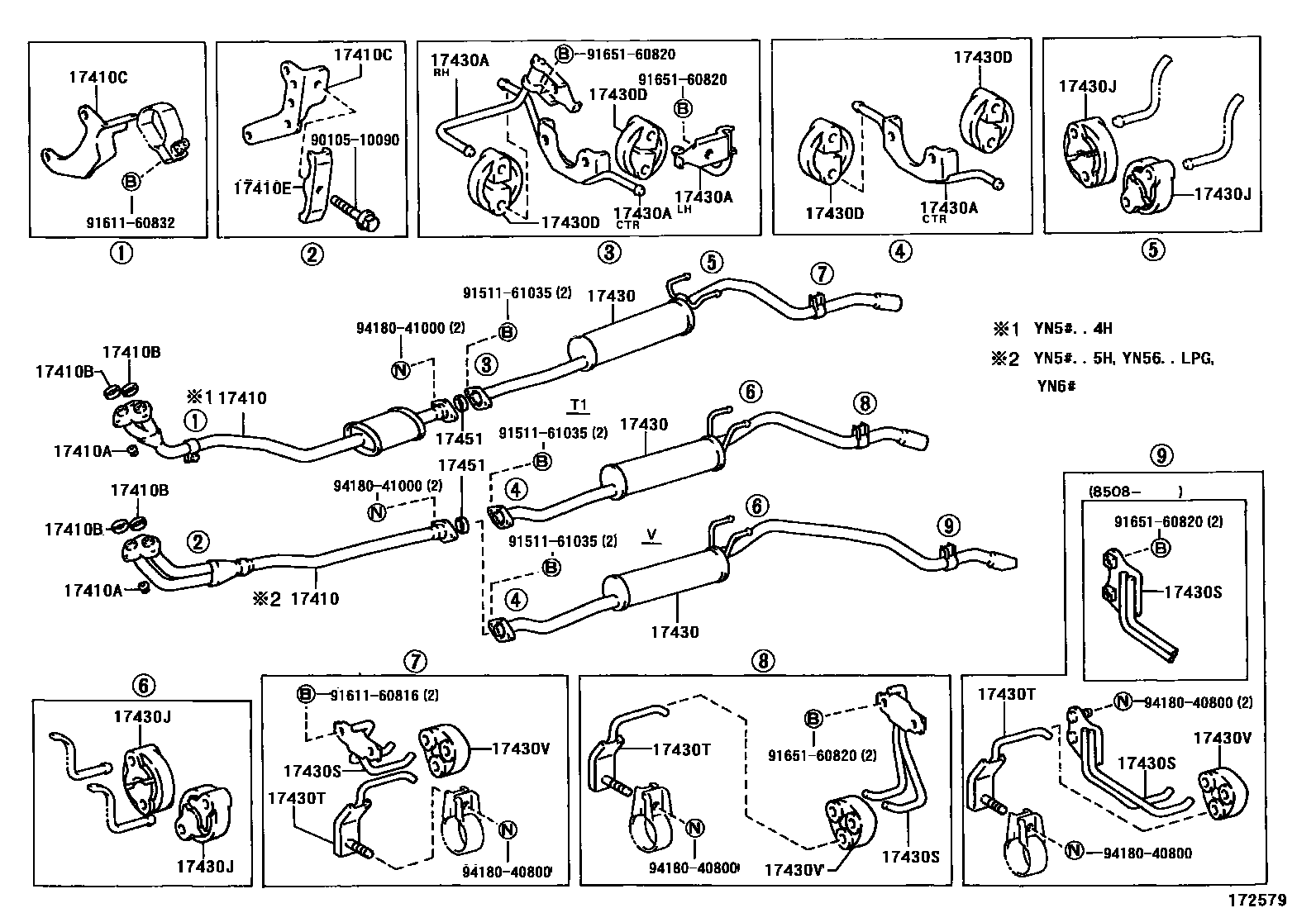

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-54290i2L..LN65198311-198903

main17410-54300i2L..LN60198311-198903

main17410-54310i2L..LN56198311-198508

main17410-54320iL..LN50,55198311-198808

main17410-54450i2LT..LN60198411-198508

main17410-54530i2L..LN61198508-198903

main17410-54550i2LT..LN61198508-198903

main17410-54580i2L..LN56..4FC198508-198808

main17410-71070i2YJ..YN5#..5H198311-198608

main17410-71080i2YJ..YN5#..4H198311-198508

main17410-72120i2YJ..YN5#198608-198808

sub17410-72121

main17410-73030i3YJ..YN65198311-198608

sub17410-73420

main17410-73040i3YJ..YN60198311-198608

main17410-73050i2YJ..YN56..LPG198411-198508

LPG PACKAGE,3YP

sub17410-73051

main17410-73051i2YJ..YN56..LPG198508-198611

LPG PACKAGE,3YP

main17410-73120i3YJ..YN61198508-198608

main17410-73160i2YJ..YN56..LPG198611-198808

LPG PACKAGE,3YP

main17410-73170i3YJ..YN65198608-198903

sub17410-73400

main17410-73180i3YJ..YN61198608-198903

sub17410-73370

main17410-73190i3YEU..YN61..5F198608-198903

sub17410-35550

main17410-73200i3YEU..YN61..4FC198608-198903

sub17410-35560

main17410-73210i3YJ..YN60198608-198903

sub17410-73410

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10010i2YJ..YN56..LPG198411-198508

LPG PACKAGE,3YP

main90179-10010iL,2L#,2YJ,3YJ..LN5#,6#,YN5#,6#198311-198508

main90179-10070i2YJ..YN56..LPG198508-198808

LPG PACKAGE,3YP

main90179-10070i2L#,2YJ,3Y#..LN5#,6#,YN5#,6#198508-198903

17410BGASKET, EXHAUST PIPE

main90917-06001i2YJ..YN56..LPG198411-198808

LPG PACKAGE,3YP

sub90917-06038

main90917-06001i2YJ,3Y#..YN5#,6#198311-198809

sub90917-06038

main90917-06004iL,2L..LN5#,6#198311-198903

sub90917-06039

main90917-06005i2LT..LN60,61198411-198903

sub90917-06042

main90917-06038i3Y#..YN61198809-198903

17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)

main17571-54130i2L..LN56..4FC198311-198808

main17571-54170i2L..LN61,65198311-198903

main17571-54180iL..LN50,55198311-198808

main17571-54220i2L..LN60198311-198903

main17571-54260i2LT..LN60198411-198508

main17571-54300i2LT..LN61198508-198903

main17571-71030i2YJ..YN56..LPG198411-198808

LPG PACKAGE,3YP

main17571-71030i2YJ..YN5#198311-198608

main17571-71050i2YJ..YN5#198608-198903

main17571-73040i3Y#..YN6#198311-198808

17410ECLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)

main90917-04030i3Y#..YN6#198311-198903

17430PIPE ASSY, EXHAUST, TAIL

main17430-54350i2L,3YJ..LN6#,YN6#..T1,TW198311-198508

sub17430-54351

main17430-54351i2L..LN60,65198508-198903

sub17430-54860

main17430-54580i2LT..LN60198411-198508

main17430-54740i2LT..LN61198508-198903

main17430-54780i2L..LN56..4FC198508-198808

main17430-54830i2L..LN61198508-198903

main17430-72050i2L..LN51198411-198808

sub17430-35701

main17430-72060i2YJ..YN56..LPG198411-198808

LPG PACKAGE,3YP

sub17430-72150

main17430-72060i2L..LN56..5H198311-198808

sub17430-72150

main17430-72161i2YJ..YN56198608-198808

sub17430-72162

main17430-72171i2YJ..YN51198608-198808

sub17430-72172

main17430-73050i2L,3YJ..LN60,YN60..V198405-198508

main17430-73070i3YJ..YN61198508-198608

main17430-73120i3YJ..YN60,65198608-198903

sub17430-73320

main17430-73130i3YJ..YN61198608-198903

main17430-73141i3YEU..YN61198608-198903

main17430-73220i3YJ..YN60,65198608-198608

17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)

main17503-35060i2YJ..YN5#198608-198808

CTR

main17503-35080i2L,3YJ..LN60,65,YN60,65198311-198608

main17503-35110i2L#,3YJ..LN61,YN61198508-198608

main17503-35120i2L,3YJ..LN60,65,YN60,65198608-198903

main17503-35130i2L#,3Y#..LN61,YN61198608-198903

main17503-54090i2LT..LN60198411-198508

main17503-71010i2YJ..YN56..LPG198411-198808

CTR,LPG PACKAGE,3YP

main17503-71010iL,2L,2YJ..LN5#,YN5#198311-198808

CTR

main17587-35010iL,2L,2YJ..LN55,56,YN56..T1,T3198311-198808

RH

main17587-35010i2YJ..YN56..LPG198411-198808

LH,LPG PACKAGE,3YP

main17587-35020iL,2L,2YJ..LN50,51,YN51198411-198808

RH

main17587-71020iL,2L,2YJ..LN55,56,YN56..TW198312-198808

RH

main17588-35010i2YJ..YN56..LPG198411-198808

RH,LPG PACKAGE,3YP

main17588-35010iL,2L,2YJ..LN5#,YN5#198311-198808

LH

17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)

main17563-35020i2YJ..YN56..LPG198411-198808

LPG PACKAGE,3YP

main17563-35020iL,2L#,2YJ,3Y#..LN5#,6#,YN5#,6#198311-198903

17430JBOLT OR RING, EXHAUST TAILPIPE(FOR CENTER)

main17565-35010i2YJ..YN56..LPG198411-198808

LPG PACKAGE,3YP

main17565-35010iL,2L#,2YJ,3Y#..LN5#,6#,YN5#,6#198311-198903

17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)

main17575-54020i2L,3YJ..LN60,65,YN60,65..T1,TW198311-198903

main17575-71030iL,2L,2YJ..LN5#,YN5#198311-198808

main17575-71030i2YJ..YN56..LPG198411-198808

LPG PACKAGE,3YP

main17575-73010i2L#,3YJ..LN60,YN60..V198405-198508

main17575-73020i2L#,3Y#..LN61,YN61198508-198903

17430TCUSHION, EXHAUST TAILPIPE (FOR REAR)

main17585-71010i2YJ..YN56..LPG198411-198808

LPG PACKAGE,3YP

main17585-71010iL,2L#,2YJ,3Y#..LN5#,6#,YN5#,6#198311-198903

17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)

main17566-35010i2YJ..YN56..LPG198411-198808

LPG PACKAGE,3YP

main17566-35010iL,2L#,2YJ,3Y#..LN5#,6#,YN5#,6#198311-198903

main17566-35030i2L#,3Y#..LN61,YN61198808-198903

17451GASKET, EXHAUST PIPE

main90917-06004iL,2L,2YJ..LN5#,YN5#198311-198808

sub90917-06039

main90917-06004i2YJ..YN56..LPG198411-198808

LPG PACKAGE,3YP

sub90917-06039

main90917-06008i2YJ..YN5#198608-198609

sub90917-06047

main90917-06012i3YEU..YN61198608-198809

RR

sub90917-06045

main90917-06012i2YJ..YN5#198411-198809

sub90917-06045

main90917-06023i3YEU..YN61198608-198809

FR

sub90917-06041

main90917-06025i2L,3YJ..LN6#,YN6#198311-198903

main90917-06041i3YEU..YN61198809-198903

FR

main90917-06045i2LT..LN61198809-198901

RR

main90917-06047i2LT..LN61198901-198903

RR

sub90917-06045

9010510090

main90105-10090

9151161035

main91511-61035

9161160816

main91611-60816

9161160832

main91611-60832

9165160820

main91651-60820

9418040800

main94180-40800

9418041000

main94180-41000

20 parts on this diagram · 4 diagrams in section
