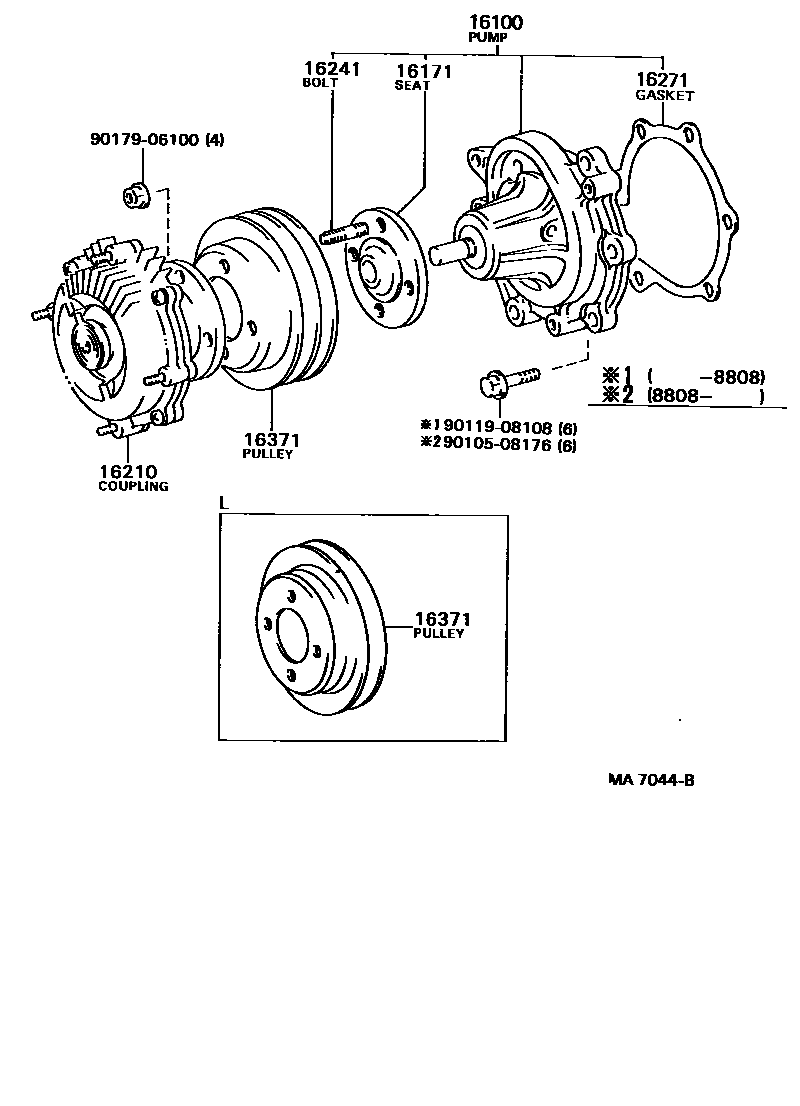

WATER PUMP

0001 1 0002 1

16100PUMP ASSY, ENGINE WATER

main16100-59127iL..LN50,55198311-198508

sub16100-59128

main16100-59137i2L#..LN51,56,6#198311-198903

sub16100-59138

main16100-79035i2YJ..YN56..LPG198411-198704

LPG PACKAGE,3YP

main16100-79036i2YJ,3Y#..YN5#,6#198704-198903

sub16100-79037

16171SEAT, WATER PUMP PULLEY

main16171-54011iL,2L#..LN5#,6#198311-198903

16210COUPLING ASSY, FLUID

main16210-31010i2YJ..YN56..LPG198411-198808

LPG PACKAGE,3YP

main16210-54070iL,2L#..LN5#,6#198311-198903

main16210-73010i3YEU..YN61198608-198903

16241BOLT, STUD(FOR WATER PUMP COUPLING)

main16192-70010×4i2YJ..YN56..LPG198411-198808

LPG PACKAGE,3YP

main16193-13020×4iL,2L#..LN5#,6#198311-198903

16271GASKET, WATER PUMP

main16271-54012iL,2L#..LN5#,6#198311-198903

sub16271-54013

16371PULLEY, FAN

main16371-54010iL..LN50,55198311-198508

main16371-54020i2L#..LN51,56,6#198311-198903

main16371-71010i2YJ..YN56..LPG198411-198808

LPG PACKAGE,3YP

sub16371-71021

main16371-73011i3YEU..YN61198608-198903

9010508176

main90105-08176

9011908108

main90119-08108

9017906100

main90179-06100

9 parts on this diagram · 2 diagrams in section
