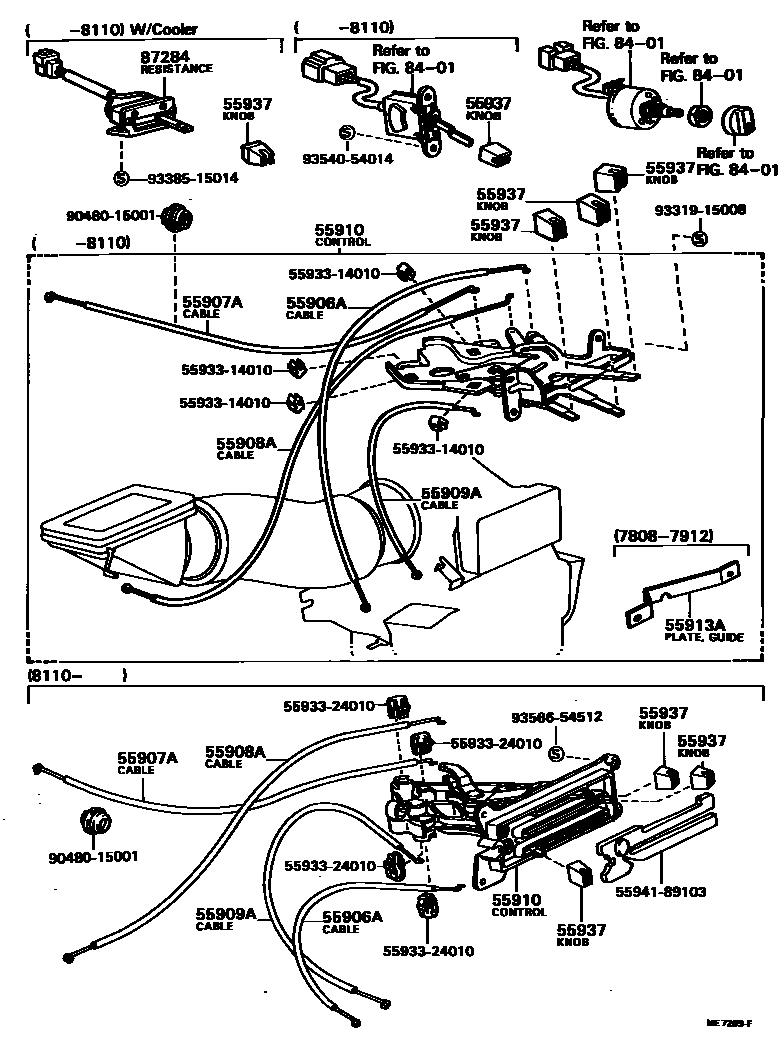

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1 0003 1

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-89104iLN30,40,RN3#,4#197808-198110

L=500

main55906-89105iLN3#,4#,RN3#,45198110-198809

L=500

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-89107iLN30,40,RN3#,4#197808-198110

L=440

main55907-89109iLN3#,4#,RN3#,45198110-198809

L=465

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-89102iLN30,40,RN3#,4#197808-198110

L=720

main55908-89103iLN3#,4#,RN3#,45198110-198809

L=690

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-89103iLN30,40,RN3#,4#197808-198110

L=365

main55909-89104iLN3#,4#,RN3#,45198110-198809

L=400

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-89109iLN30,40,RN3#,4#197808-198110

main55910-89113iLN3#,4#,RN3#,45198110-198809

55913APLATE, HEATER CONTROL LEVER GUIDE

main55913-89104iRN3#,40197808-197912

55937KNOB, HEATER CONTROL LEVER

main55905-12070×3iLN3#,4#,RN3#,45198110-198809

main55905-20140×5iLN30,40,RN3#,4#197808-198110

8401

87284RESISTOR SUB-ASSY, VARIABLE

main88622-89101iLN30,40,RN3#,4#197808-198110

5593314010GUIDE, LEVER, NO.2

main55933-14010

5593324010GUIDE, LEVER, NO.2

main55933-24010

5594189103BRACKET, HEATER CONTROL

main55941-89103

9048015001

main90480-15001

9331915008

main93319-15008

9338515014

main93385-15014

9354054014

main93540-54014

9356654512

main93566-54512

17 parts on this diagram · 3 diagrams in section
