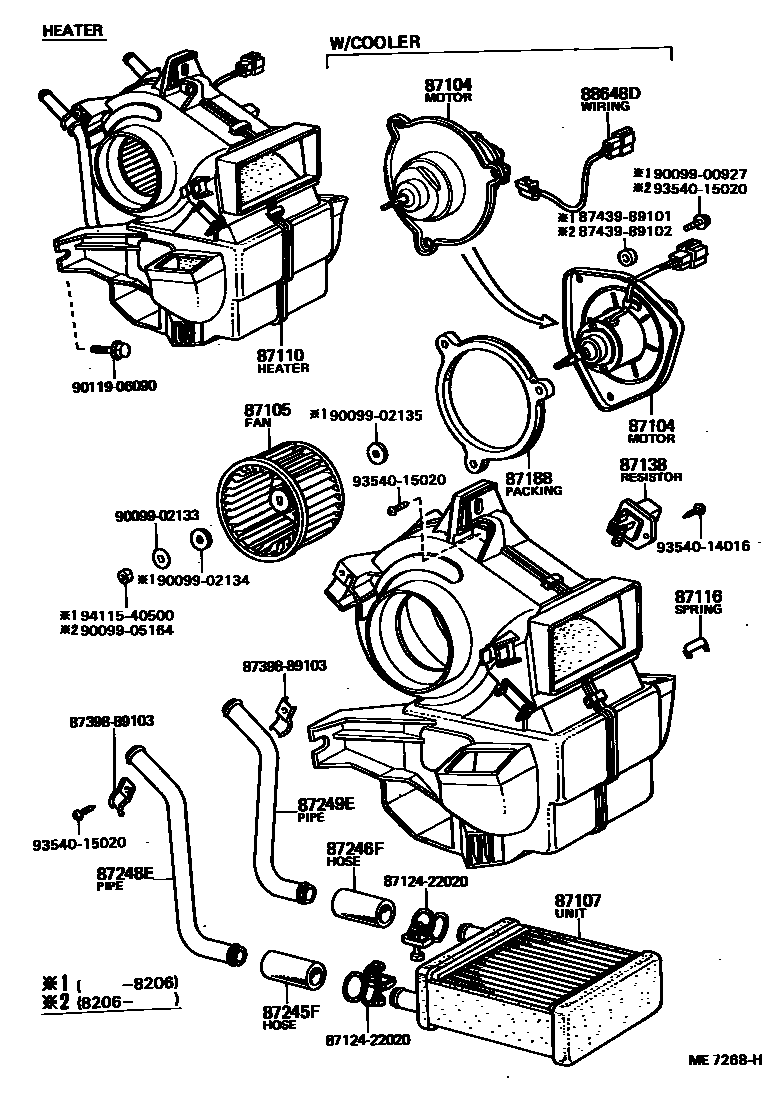

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

87104MOTOR SUB-ASSY, HEATER BLOWER

main87104-95400iLN30,40197912-198110

24V

main87104-95401iLN3#,4#,RN3#,4#197808-198809

12V

main87104-95403iLN3#,40,46,RN3#,4#197808-198809

12V,W/COOLER

87105FAN SUB-ASSY, HEATER BLOWER

main87105-12030iLN3#,4#,RN3#,4#197808-198809

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-89106iLN3#,4#,RN3#,4#197808-198809

sub87107-90D00

main87107-89107iLN41198508-198809

COLD SPEC

sub87107-90D00

87110HEATER ASSY

main87110-89127iLN30,40,RN3#,4#197808-198110

12V

sub87110-89128

main87110-89131iLN30,40197912-198110

24V

main87110-89132iLN41198508-198809

COLD SPEC

main87110-89135iLN3#,4#,RN3#,45198110-198809

sub87110-89132

87116SPRING, HEATER CASE FASTENING

main87116-14010iLN3#,4#,RN3#,4#197808-198809

87138RESISTOR, HEATER BLOWER

main87138-87003iLN30,40,RN3#,4#197808-198110

12V

main87138-87004iLN30,40,RN3#,4#197808-198110

12V,W/COOLER

main87138-89103iLN3#,4#,RN3#,45198110-198809

12V

main87138-95400iLN30,40197912-198110

24V

main88635-89102iLN3#,40,46,RN3#,45198110-198809

W/COOLER

87188PACKING, HEATER BLOWER MOTOR

main87128-22010iLN3#,4#,RN3#,4#197808-198809

87245FHOSE, HEATER WATER, INLET F

main99552-30040iLN30,40,RN3#,4#197808-198110

sub99552-30075

main99552-30100iLN3#,4#,RN3#,45198110-198809

sub99556-30100

87246FHOSE, HEATER WATER, OUTLET F

main99552-30040iLN30,40,RN3#,4#197808-198110

sub99552-30075

main99552-30100iLN3#,4#,RN3#,45198110-198809

sub99556-30100

87248EPIPE, HEATER WATER INLET, E

main87248-89114iLN3#,4#,RN3#,4#197808-198809

87249EPIPE, HEATER WATER OUTLET, E (FOR HEATER UNIT)

main87248-89115iLN3#,4#,RN3#,4#197808-198809

88648DWIRING, BLOWER MOTER

main88648-89101iLN3#,40,46,RN35,36,39,45197910-198809

W/COOLER

8712422020CLAMP, HEATER

main87124-22020

8739889103BAND ASSY (FOR COMBUSTION HEATER)

main87398-89103

8743989101

main87439-89101

8743989102

main87439-89102

9009900927

main90099-00927

9009902133

main90099-02133

9009902134

main90099-02134

9009902135

main90099-02135

9009905164

main90099-05164

9011906090

main90119-06090

9354014016

main93540-14016

9354015020

main93540-15020

9411540500

main94115-40500

25 parts on this diagram · 1 diagram in section
