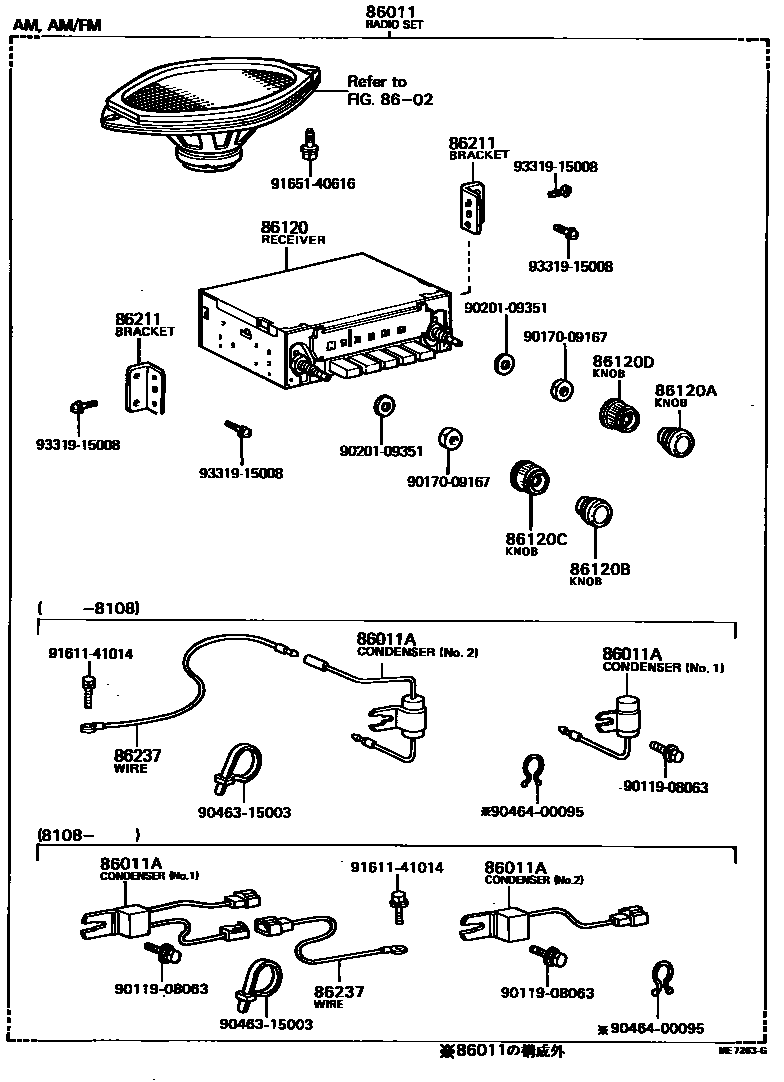

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1

86011RADIO & SETTING PARTS SET

main86011-39035iLN30,40,RN3#,4#197808-198110

12V,AM

main86011-39045iLN30,40,RN3#,4#197808-198110

12V,AM/FM

main86011-39145iLN3#,4#,RN3#,45198110-198809

AM

main86011-39155iLN3#,4#,RN3#,45198110-198809

AM/FM MULTIPLEX

86011ACONDENSER, RADIO SETTING

main90980-04011iLN30,40,RN3#,4#197808-198108

NO.1

main90980-04029iRN3#,4#197808-198108

NO.2

main90980-04038iRN43..DLX198108-198809

NO.1

main90980-04040iRN43..DLX198108-198809

NO.2

8602

86120RECEIVER ASSY, RADIO

main86120-90A00iLN3#,4#,RN3#,45198110-198809

AM

main86120-90A01iLN3#,4#,RN3#,45198110-198809

AM/FM MULTIPLEX

main86120-95400iLN30,40197912-198110

24V,AM

main86120-95A00iLN30,40,RN3#,4#197808-198110

12V,AM

main86120-95A02iLN30,40,RN3#,4#197808-198110

12V,AM/FM

86120AKNOB, RADIO RECEIVER SWITCH

main86125-89101iLN3#,4#,RN3#,45198110-198809

main86125-95A00iLN30,40,RN3#,4#197808-198110

86120BKNOB, RADIO RECEIVER TUNING, NO.1

main86125-89101iLN3#,4#,RN3#,45198110-198809

main86125-95A00iLN30,40,RN3#,4#197808-198110

86120CKNOB, RADIO RECEIVER TUNING, NO.2

main86124-89104iLN3#,4#,RN3#,45198110-198809

AM

main86124-95A00iLN30,40,RN3#,4#197808-198110

AM

86120DKNOB, RADIO RECEIVER TONE

main86124-89104iLN3#,4#,RN3#,45198110-198809

main86124-95A00iLN30,40,RN3#,4#197808-198110

86211BRACKET, RADIO, NO.1

main86211-89104iLN30,40,RN3#,4#197808-198110

main86211-89107iLN3#,4#,RN3#,45198110-198809

86237WIRE, CONDENSER

main86237-89101iRN3#,4#197808-198108

main86237-89103iRN43..DLX198108-198809

main86237-89104iRN39198110-198310

9011908063

main90119-08063

9017009167

main90170-09167

9020109351

main90201-09351

9046315003

main90463-15003

9046400095

main90464-00095

9161141014

main91611-41014

9165140616

main91651-40616

9331915008

main93319-15008

18 parts on this diagram · 3 diagrams in section
