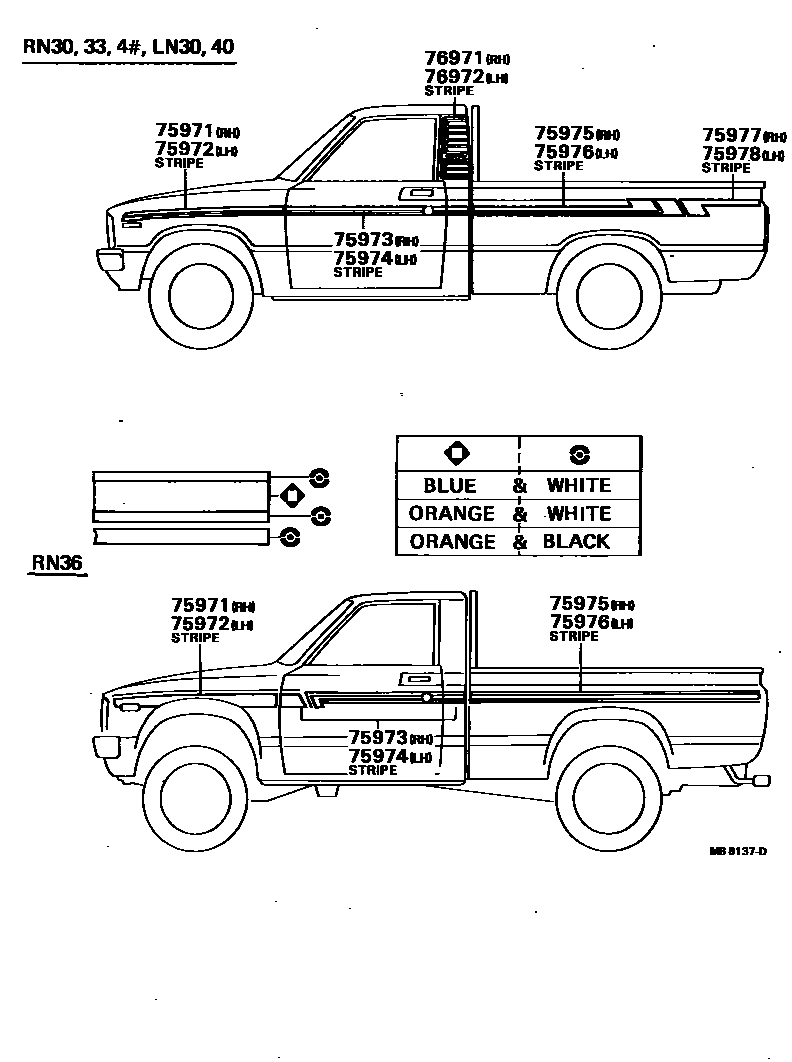

BODY STRIPE

0001 1 0002 1 0003 1 0004 1 0005 1

75971STRIPE, SIDE, RH NO.1

main75981-89107-04iLN30,40,RN30,33,4#197808-198110

BLUE & WHITE,BLUE

main75981-89107-06iLN30,40,RN30,33,4#197808-198110

ORANGE & BLACK,BROWN

main75981-89107-16iLN30,40,RN30,33,4#197808-198110

ORANGE & WHITE,BROWN

main75981-89110iLN30,40,41,RN35,45198110-198809

main75981-95110iRN36197910-198110

SR PACKAGE,WHITE

main75981-95111iRN36197910-198110

SR PACKAGE,RED

main75981-95115iRN36198106-198106

CALIFORNIA SR,YELLOW & ORANGE

sub75984-95110

main75981-95116iRN36198006-198007

THE BLACK SR

main75981-95117iLN36,46,RN39198110-198310

SR PACKAGE,TYPE A

main75981-95118iLN36,46,RN39198110-198310

SR PACKAGE,TYPE B

75972STRIPE, SIDE, LH NO.1

main75982-89106-04iLN30,40,RN30,33,4#197808-198110

BLUE & WHITE,BLUE

main75982-89106-06iLN30,40,RN30,33,4#197808-198110

ORANGE & BLACK,BROWN

main75982-89106-16iLN30,40,RN30,33,4#197808-198110

ORANGE & WHITE,BROWN

main75982-89109iLN30,40,41,RN35,45198110-198809

main75982-95110iRN36197910-198110

SR PACKAGE,WHITE

main75982-95111iRN36197910-198110

SR PACKAGE,RED

main75982-95115iRN36198106-198106

CALIFORNIA SR,YELLOW & ORANGE

sub75983-95110

main75982-95116iRN36198006-198007

THE BLACK SR

main75982-95117iLN36,46,RN39198110-198310

SR PACKAGE,TYPE A

main75982-95118iLN36,46,RN39198110-198310

SR PACKAGE,TYPE B

75973STRIPE, SIDE, RH NO.2

main75983-95110iRN36198106-198106

CALIFORNIA SR,YELLOW & ORANGE

main75985-89108-04iLN30,40,RN30,33,4#..DLX,STD197808-198110

BLUE & WHITE,BLUE

main75985-89108-06iLN30,40,RN30,33,4#..DLX,STD197808-198110

ORANGE & BLACK,BROWN

main75985-89108-16iLN30,40,RN30,33,4#..DLX,STD197808-198110

ORANGE & WHITE,BROWN

main75985-89109-04iLN40,RN4#..SDX197808-198110

BLUE & WHITE,BLUE

main75985-89109-06iLN40,RN4#..SDX197808-198110

ORANGE & BLACK,BROWN

main75985-89109-16iLN40,RN4#..SDX197808-198110

ORANGE & WHITE,BROWN

main75985-89113iLN30,40,41,RN35,45..T1..(DLX,STD)198110-198809

main75985-89114iLN40,RN45..SDX198110-198310

main75985-89115iLN40,RN45..TW198110-198310

main75985-95110iRN36197910-198110

SR PACKAGE,WHITE

main75985-95111iRN36197910-198110

SR PACKAGE,RED

main75985-95114iRN36198006-198007

THE BLACK SR

main75985-95115iLN36,46,RN39..T1198110-198310

SR PACKAGE,TYPE A

main75985-95116iLN36,46,RN39..T1198110-198310

SR PACKAGE,TYPE B

main75985-95117iLN46..TW198110-198310

SR PACKAGE,TYPE A

main75985-95118iLN46..TW198110-198310

SR PACKAGE,TYPE B

75974STRIPE, CENTER PILLAR, LH NO.2

main75984-95110iRN36198106-198106

CALIFORNIA SR,YELLOW & ORANGE

main75986-89108-04iLN30,40,RN30,33,4#..DLX,STD197808-198110

BLUE & WHITE,BLUE

main75986-89108-06iLN30,40,RN30,33,4#..DLX,STD197808-198110

ORANGE & BLACK,BROWN

main75986-89108-16iLN30,40,RN30,33,4#..DLX,STD197808-198110

ORANGE & WHITE,BROWN

main75986-89109-04iLN40,RN4#..SDX197808-198110

BLUE & WHITE,BLUE

main75986-89109-06iLN40,RN4#..SDX197808-198110

ORANGE & BLACK,BROWN

main75986-89109-16iLN40,RN4#..SDX197808-198110

ORANGE & WHITE,BROWN

main75986-89113iLN30,40,41,RN35,45..T1..(DLX,STD)198110-198809

main75986-89114iLN40,RN45..SDX198110-198310

main75986-89115iLN40,RN45..TW198110-198310

main75986-95110iRN36197910-198110

SR PACKAGE,WHITE

main75986-95111iRN36197910-198110

SR PACKAGE,RED

main75986-95114iRN36198006-198007

THE BLACK SR

main75986-95115iLN36,46,RN39..T1198110-198310

SR PACKAGE,TYPE A

main75986-95116iLN36,46,RN39..T1198110-198310

SR PACKAGE,TYPE B

main75986-95117iLN46..TW198110-198310

SR PACKAGE,TYPE A

main75986-95118iLN46..TW198110-198310

SR PACKAGE,TYPE B

75975STRIPE, SIDE, RH UPR NO.3

main75985-95113iRN36198106-198106

CALIFORNIA SR,YELLOW & ORANGE

main75987-95112iLN46..TW198110-198310

SR PACKAGE,TYPE A

main75987-95113iLN46..TW198110-198310

SR PACKAGE,TYPE B

main75988-89101iLN30,RN35198110-198809

main75988-89103iLN40,41,RN45..T1..DLX198110-198809

main75988-89104iLN40,RN45..SDX198110-198310

main75988-89105iLN40,RN45..TW198110-198310

main75996-89106-04iLN30,RN30,33197808-198110

BLUE & WHITE,BLUE

main75996-89106-06iLN30,RN30,33197808-198110

ORANGE & BLACK,BROWN

main75996-89106-16iLN30,RN30,33197808-198110

ORANGE & WHITE,BROWN

main75996-89107-04iLN40,RN4#..DLX,STD197808-198110

BLUE & WHITE,BLUE

main75996-89107-06iLN40,RN4#..DLX,STD197808-198110

ORANGE & BLACK,BROWN

main75996-89107-16iLN40,RN4#..DLX,STD197808-198110

ORANGE & WHITE,BROWN

main75996-89109-04iLN40,RN4#..SDX197808-198110

BLUE & WHITE,BLUE

main75996-89109-06iLN40,RN4#..SDX197808-198110

ORANGE & BLACK,BROWN

main75996-89109-16iLN40,RN4#..SDX197808-198110

ORANGE & WHITE,BROWN

main75996-95110iRN36197910-198110

SR PACKAGE,WHITE

main75996-95112iRN36197910-198110

SR PACKAGE,RED

main75996-95118iLN36,RN39198110-198310

SR PACKAGE,TYPE A

main75996-95119iLN36,RN39198110-198310

SR PACKAGE,TYPE B

main75996-95120iLN46..T1198110-198310

SR PACKAGE,TYPE A

main75996-95121iLN46..T1198110-198310

SR PACKAGE,TYPE B

75976STRIPE, SIDE, LH UPR

main75986-95113iRN36198106-198106

CALIFORNIA SR,YELLOW & ORANGE

main75988-95112iLN46..TW198110-198310

SR PACKAGE,TYPE A

main75988-95113iLN46..TW198110-198310

SR PACKAGE,TYPE B

main75989-89101iLN30,RN35198110-198809

main75989-89103iLN40,41,RN45..T1..DLX198110-198809

main75989-89104iLN40,RN45..SDX198110-198310

main75989-89105iLN40,RN45..TW198110-198310

main75997-89106-04iLN30,RN30,33197808-198110

BLUE & WHITE,BLUE

main75997-89106-06iLN30,RN30,33197808-198110

ORANGE & BLACK,BROWN

main75997-89106-16iLN30,RN30,33197808-198110

ORANGE & WHITE,BROWN

main75997-89107-04iLN40,RN4#..DLX,STD197808-198110

BLUE & WHITE,BLUE

main75997-89107-06iLN40,RN4#..DLX,STD197808-198110

ORANGE & BLACK,BROWN

main75997-89107-16iLN40,RN4#..DLX,STD197808-198110

ORANGE & WHITE,BROWN

main75997-89109-04iLN40,RN4#..SDX197808-198110

BLUE & WHITE,BLUE

main75997-89109-06iLN40,RN4#..SDX197808-198110

ORANGE & BLACK,BROWN

main75997-89109-16iLN40,RN4#..SDX197808-198110

ORANGE & WHITE,BROWN

main75997-95110iRN36197910-198110

SR PACKAGE,WHITE

sub75996-95110

main75997-95112iRN36197910-198110

SR PACKAGE,RED

sub75996-95112

main75997-95118iLN36,RN39198110-198310

SR PACKAGE,TYPE A

main75997-95119iLN36,RN39198110-198310

SR PACKAGE,TYPE B

main75997-95120iLN46..T1198110-198310

SR PACKAGE,TYPE A

main75997-95121iLN46..T1198110-198310

SR PACKAGE,TYPE B

75977STRIPE, SIDE, RH NO.4

main75996-89110-04iLN30,40,RN30,33,4#197808-198110

BLUE & WHITE,BLUE

main75996-89110-06iLN30,40,RN30,33,4#197808-198110

ORANGE & BLACK,BROWN

main75996-89110-16iLN30,40,RN30,33,4#197808-198110

ORANGE & WHITE,BROWN

main75996-95122iLN46..TW198110-198310

SR PACKAGE,TYPE A

main75996-95123iLN46..TW198110-198310

SR PACKAGE,TYPE B

main75998-89101iLN30,RN35198110-198809

main75998-89104iLN40,41,RN45198110-198809

75978STRIPE, SIDE, LH NO.4

main75997-89110-04iLN30,40,RN30,33,4#197808-198110

BLUE & WHITE,BLUE

main75997-89110-06iLN30,40,RN30,33,4#197808-198110

ORANGE & BLACK,BROWN

main75997-89110-16iLN30,40,RN30,33,4#197808-198110

ORANGE & WHITE,BROWN

main75997-95122iLN46..TW198110-198310

SR PACKAGE,TYPE A

main75997-95123iLN46..TW198110-198310

SR PACKAGE,TYPE B

main75999-89101iLN30,RN35198110-198809

main75999-89104iLN40,41,RN45198110-198809

76971STRIPE, SIDE, RH NO.5

main75993-89101iLN40,RN4#..SDX197808-198310

main76993-95110iLN36,46,RN39198110-198310

SR PACKAGE,TYPE A

main76993-95111iLN36,46,RN39198110-198310

SR PACKAGE,TYPE B

76972STRIPE, QUARTER, REAR LH

main75994-89103iLN40,RN4#..SDX197808-198310

10 parts on this diagram · 5 diagrams in section
