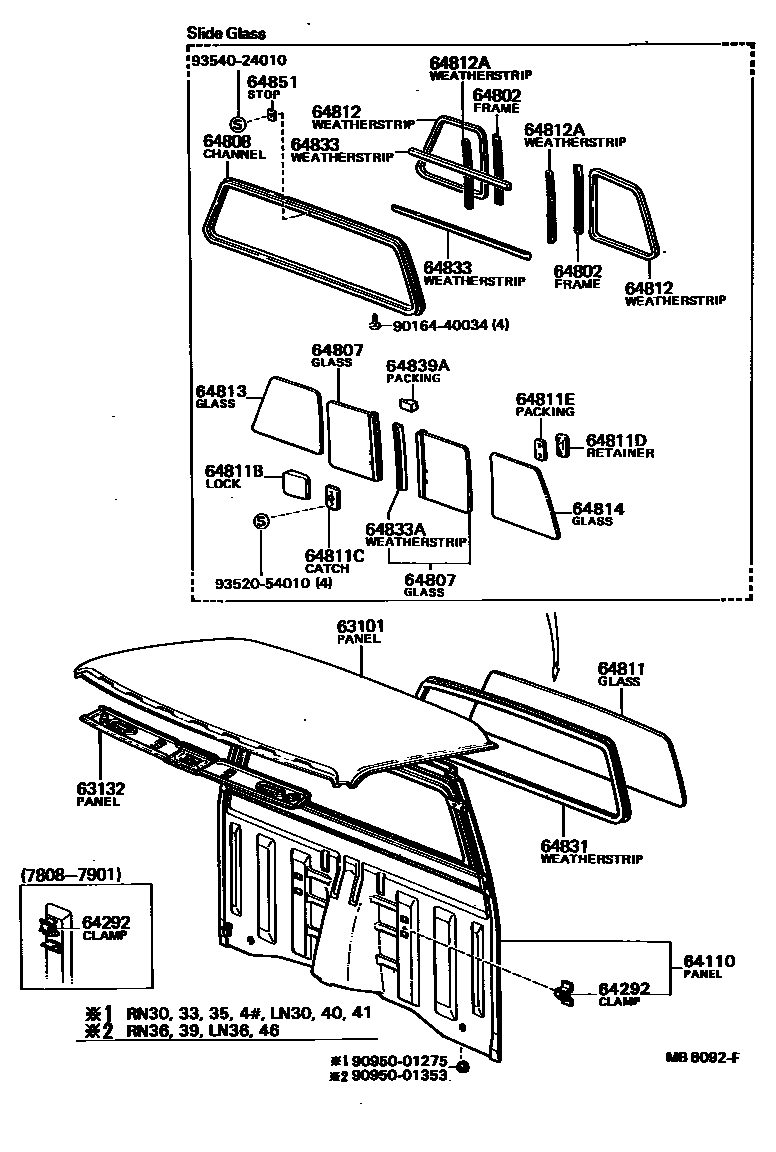

ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1

63101PANEL SUB-ASSY, ROOF

main63111-89104iLN30,40,41,RN30,33,35,4#..T1..(DLX,STD)197808-198809

main63111-89105iLN36,46,RN36,39..T1197808-198310

main63111-89107iLN4#,RN45..TW198110-198310

63132PANEL, WINDSHIELD HEADER, INNER

main63102-89101iLN3#,4#,RN3#,4#197808-198809

64110PANEL ASSY, FRONT BODY BACK

main64101-89110iRN30,40197808-197901

sub64101-89115

main64101-89113iLN4#,RN45..TW198110-198310

sub64101-89119

main64101-89114iRN30,33,35,4#..T1197901-198407

sub64101-89116

main64101-89116iLN30,40,41197912-198809

main64101-89119iLN40,RN45..TW198209-198310

main64101-95116iLN36,46,RN36,39..T1197910-198310

main64101-95118iLN46..TW198209-198310

64292CLAMP, JACK HANDLE

main58706-89101iLN3#,4#,RN3#,4#..T1197901-198809

main64292-12010iRN30,40197808-197901

main64292-89102iLN4#,RN45..TW198110-198310

64802FRAME SUB-ASSY, BACK WINDOW FIX

main64881-89101iRN36198106-198106

CALIFORNIA SR,RH

main64881-89101iLN36,46,RN39198110-198310

RH

main64881-89102iLN36,46,RN39198110-198310

LH

main64881-89102iRN36198106-198106

CALIFORNIA SR,LH

64807GLASS SUB-ASSY, BACK WINDOW SLIDE

main64807-89101iRN36198106-198106

EVENT,SLIDE GLASS,RH,*TT,T=4.0

sub64807-89103

main64807-89101iLN36,46,RN39198110-198310

SLIDE GLASS,RH,*TT,T=4.0

sub64807-89103

main64807-89102iLN36,46,RN39198110-198310

SLIDE GLASS,LH,*TT,T=4.0

sub64807-89104

main64807-89102iRN36198106-198106

EVENT,SLIDE GLASS,LH,*TT,T=4.0

sub64807-89104

64808CHANNEL SUB-ASSY, BACK WINDOW SLIDE GLASS

main64808-89102iLN36,46,RN39198110-198310

main64808-89102iRN36198106-198106

CALIFORNIA SR

64811GLASS, BACK WINDOW

main64811-89107iLN3#,4#,RN3#,4#197808-198809

*TEM,T=4.0

64811BLOCK ASSY, BACK WINDOW

main69370-89101iRN36198106-198106

CALIFORNIA SR

main69370-89101iLN36,46,RN39198110-198310

64811CCATCH, BACK WINDOW LOCK

main69374-89101iRN36198106-198106

CALIFORNIA SR

main69374-89101iLN36,46,RN39198110-198310

64811DRETAINER, BACK WINDOW

main69375-89102iLN36,46,RN39198110-198310

main69375-89102iRN36198106-198106

CALIFORNIA SR

64811EPACKING, BACK WINDOW LOCK

main69376-89101iRN36198106-198106

CALIFORNIA SR

main69376-89101iLN36,46,RN39198110-198310

64812WEATHERSTRIP, BACK WINDOW GLASS, NO.1

main64812-89102iRN36198106-198106

CALIFORNIA SR

main64812-89102iLN36,46,RN39198110-198310

64812AWEATHERSTRIP, BACK WINDOW GLASS, NO.2

main64812-89103iRN36198106-198106

CALIFORNIA SR

main64812-89103iLN36,46,RN39198110-198310

64813GLASS, BACK WINDOW CORNER, RH

main64811-89110iLN36,46,RN39198110-198310

FIXED GLASS,*TT,T=4.0

sub64811-89114

main64811-89110iRN36198106-198106

EVENT,FIXED GLASS,*TT,T=4.0

sub64811-89114

64814GLASS, BACK WINDOW CORNER, LH

main64811-89111iRN36198106-198106

EVENT,FIXED GLASS,*TT,T=4.0

sub64811-89115

main64811-89111iLN36,46,RN39198110-198310

FIXED GLASS,*TT,T=4.0

sub64811-89115

64831WEATHERSTRIP, BACK WINDOW GLASS

main64812-89101iLN3#,4#,RN3#,4#197808-198809

64833WEATHERSTRIP, BACK WINDOW CHANNEL

main64833-89101iLN36,46,RN39198110-198310

LWR

main64833-89101iRN36198106-198106

CALIFORNIA SR,LWR

main64833-89102iLN36,46,RN39198110-198310

UPR

main64833-89102iRN36198106-198106

CALIFORNIA SR,UPR

64833AWEATHERSTRIP, BACK WINDOW CENTER CHANNEL

main64833-89103iRN36198106-198106

CALIFORNIA SR

main64833-89103iLN36,46,RN39198110-198310

64839APACKING, BACK WINDOW

main64839-89101iRN36198106-198106

CALIFORNIA SR

main64839-89101iLN36,46,RN39198110-198310

64851STOP, BACK WINDOW SLIDE GLASS

main64851-89101iRN36198106-198106

CALIFORNIA SR

main64851-89101iLN36,46,RN39198110-198310

9016440034

main90164-40034

9095001275

main90950-01275

9095001353

main90950-01353

9352054010

main93520-54010

9354024010

main93540-24010

26 parts on this diagram · 3 diagrams in section
