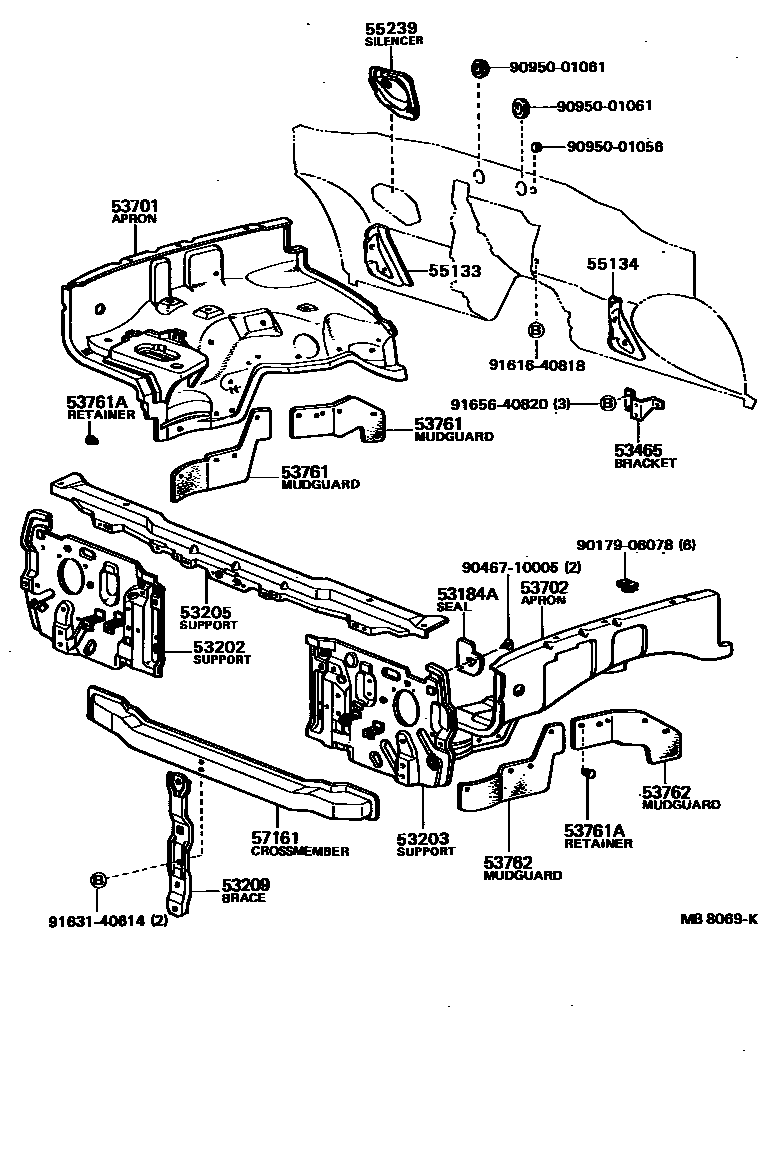

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

53184ASEAL, HEADLAMP COVER, LH

main53184-89101iLN30,40197912-198108

COLD SPEC

main53184-89102iLN3#,4#198108-198809

COLD SPEC

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-89109iLN30,40,RN30,33,4#197808-198110

main53202-89113iLN30,40,41,RN35,45198110-198809

main53202-95112iRN36197910-198110

sub53202-95117

main53202-95117iLN36,46,RN39198110-198310

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-89109iLN30,40,RN30,33,4#197808-198008

main53203-89114iLN30,40,RN33,43198008-198110

main53203-89118iLN30,40,41,RN35,45198110-198809

main53203-95110iRN36197910-198008

sub53203-95114

main53203-95119iRN36198008-198110

sub53203-95124

main53203-95124iLN36,46,RN39198110-198310

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-89108iRN30,40197808-197909

sub53205-89110

main53205-89109iLN36,46197912-198310

COLD SPEC

sub53205-89115

main53205-89110iLN36,46,RN36,39197909-198310

sub53205-89114

main53205-89114iLN30,40,41,RN33,35,4#198108-198809

sub53205-89116

main53205-89115iLN30,40,41198110-198809

COLD SPEC

53209BRACE SUB-ASSY, HOOD LOCK

main53217-89105iLN30,40,RN30,33,4#197808-198110

main53217-89106iLN30,40,41,RN35,45198110-198809

main53217-95110iLN36,46,RN36,39197910-198310

53465BRACKET,WASHER TANK

main74465-89102iLN30,40,41197912-198809

COLD SPEC

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-89115iRN30,33,35,4#197808-198809

main53701-89117iLN30,40,41197912-198809

main53701-89118iLN30,40,41197912-198809

COLD SPEC

main53701-95111iRN36197910-198008

sub53701-95123

main53701-95123iRN36,39198008-198310

main53701-95128iLN36,46198110-198310

COLD SPEC

main53701-95129iLN36,46198110-198310

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-89132iRN30,33,4#197808-198110

sub53702-89156

main53702-89150iLN30,40,41197912-198809

main53702-89156iRN35,45198110-198809

main53702-95124iRN36197910-198008

sub53702-95130

main53702-95130iRN36198008-198110

main53702-95138iRN39198110-198310

main53702-95139iLN36,46198110-198310

53761MUDGUARD, RH

main53736-89105iLN30,40,RN30,33,4#197808-198108

FR

sub53736-89106

main53736-89106iLN30,40,41,RN33,35,4#198108-198809

FR

main53736-95110iLN36,46,RN36,39197910-198310

main53737-89102iLN30,40,41,RN30,33,35,4#197808-198809

RR

53761ARETAINER(FOR MUDGUARD)

main90467-10005iLN36,46,RN36,39197808-198809

sub90467-06017

53762MUDGUARD, LH

main53736-89105iLN30,40,RN30,33,4#197808-198110

FR

sub53736-89106

main53736-89106iLN30,40,41,RN35,45198110-198809

FR

main53737-89102iRN30,33,35,4#197808-198809

RR

main53737-89103iLN30,40,41197912-198809

RR

main53737-95112iLN36,46,RN36,39197910-198310

sub53736-95110

55133PLATE, FRONT FENDER APRON SET, LOWER RH

main55133-89101iLN3#,4#,RN3#,4#197910-198809

55134PLATE, FRONT FENDER APRON SET, LOWER LH

main55134-89101iLN3#,4#,RN3#,4#197910-198809

55239SILENCER, STEERING COLUMN HOLE COVER

main55210-89126iLN30,40,41,RN30,33,35,4#..4F,5F197808-198809

main55210-89127iLN30,40,41,RN30,33,35,4#..4H,5H197808-198809

main55210-95112iLN36,46,RN36,39197910-198310

57161CROSSMEMBER, FRONT

main57104-89101iLN30,40,41,RN30,33,35,4#197808-198809

sub57104-89102

main57104-95110iLN36,46,RN36,39197910-198310

9017906078

main90179-06078

9046710005

main90467-10005

9095001056

main90950-01056

9095001061

main90950-01061

9161640818

main91616-40818

9163140614

main91631-40614

9165640820

main91656-40820

22 parts on this diagram · 2 diagrams in section
