HOOD & FRONT FENDER

53301HOOD SUB-ASSY

main53301-89115iLN30,40,41,RN3#,4#197808-198809

main53301-95110iLN36,46198110-198310

sub53301-95111

53341BINSULATOR, HOOD

main53341-89101iLN3#,4#197912-198508

main53341-89105iLN41198508-198809

53341CCLIP(FOR HOOD INSULATOR)

main90467-09004-01iLN30,40197912-198809

BLACK

sub90467-09004

53349RETAINER, HOOD SILENCER

main53349-89101iLN3#,4#198101-198809

53382BUMPER, HOOD, FRONT

main53382-20011iLN3#,4#,RN3#,4#197808-198809

sub53382-90A00

53387SEAL, HOOD TO RADIATOR SUPPORT

main53381-89102iLN3#,4#197912-198809

COLD SPEC

53387BPACKING, HOOD FRONT SEAL

main88893-89113iLN3#,4#197912-198809

COLD SPEC

53387CCLIP, HOOD FRONT SEAL

main90467-08011iLN3#,4#197912-198809

COLD SPEC

53801FENDER SUB-ASSY, FRONT RH

main53801-89140iLN30,40,RN30,33,4#197808-198110

main53801-89148iLN30,40,41,RN35,45198110-198809

main53801-95111iLN36,46,RN36,39197910-198310

sub53801-92300

53802FENDER SUB-ASSY, FRONT LH

main53802-89135iLN30,40,RN30,33,4#197808-198110

main53802-89141iLN30,40,41,RN35,45198110-198809

main53802-95115iLN36,46,RN36,39197910-198310

sub53802-92300

53878LINER, FRONT FENDER, RH

main53875-89102iLN30,40,41,RN30,33,35,4#197808-198809

main53875-95110iRN36197910-198108

sub53875-95112

main53875-95112iLN36,46,RN36,39198108-198310

53879LINER, FRONT FENDER, LH

main53876-89102iLN30,40,41,RN30,33,35,4#197808-198809

main53876-95110iRN36197910-198108

sub53876-95112

main53876-95112iLN36,46,RN36,39198108-198310

53879ARETAINER, FRONT FENDER LINER

main53879-22010iLN30,40,41,RN30,33,35,4#197808-198809

53881BUMPER, FENDER TO HOOD

main53384-89101iLN3#,4#,RN3#,4#197808-198809

53882PACKING, FRONT FENDER MAIN

main53882-89103iLN3#,40,46,RN3#,4#197808-198809

53911PANEL, FRONT VALANCE

main53161-95110iRN36197910-198008

sub53161-95112

main53161-95112iLN36,46,RN36,39198008-198310

main53911-89103iLN30,40,RN30,33,4#197808-198008

sub53911-89104

main53911-89104iLN30,40,RN33,43198008-198110

main53911-89105iLN30,40,41,RN35,45198110-198809

53919CUSHION, VALANCE PANEL

main53919-95110iLN36,46,RN36,39197910-198310

9015950077

main90159-50077

9015960008

main90159-60008

9015960078

main90159-60078

9015960110

main90159-60110

9018905017

main90189-05017

9018906001

main90189-06001

9018906005

main90189-06005

9163140614

main91631-40614

9163140616

main91631-40616

9166140612

main91661-40612

9412040800

main94120-40800

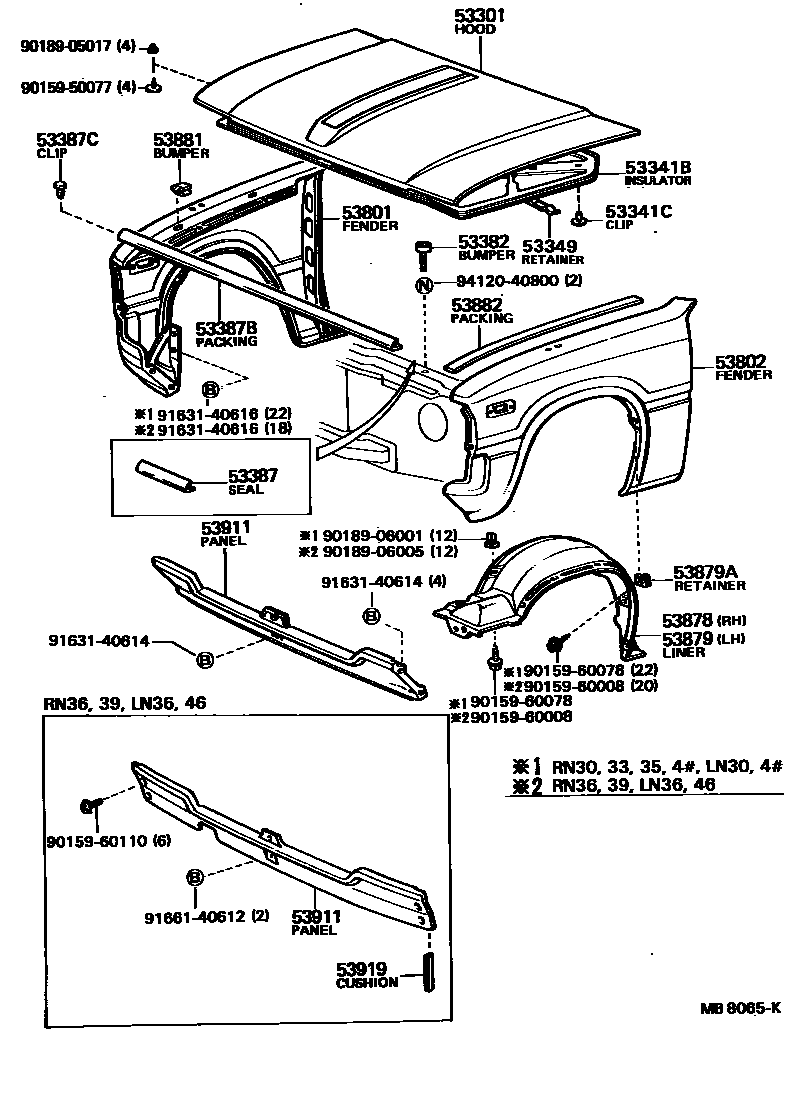

28 parts on this diagram · 1 diagram in section
