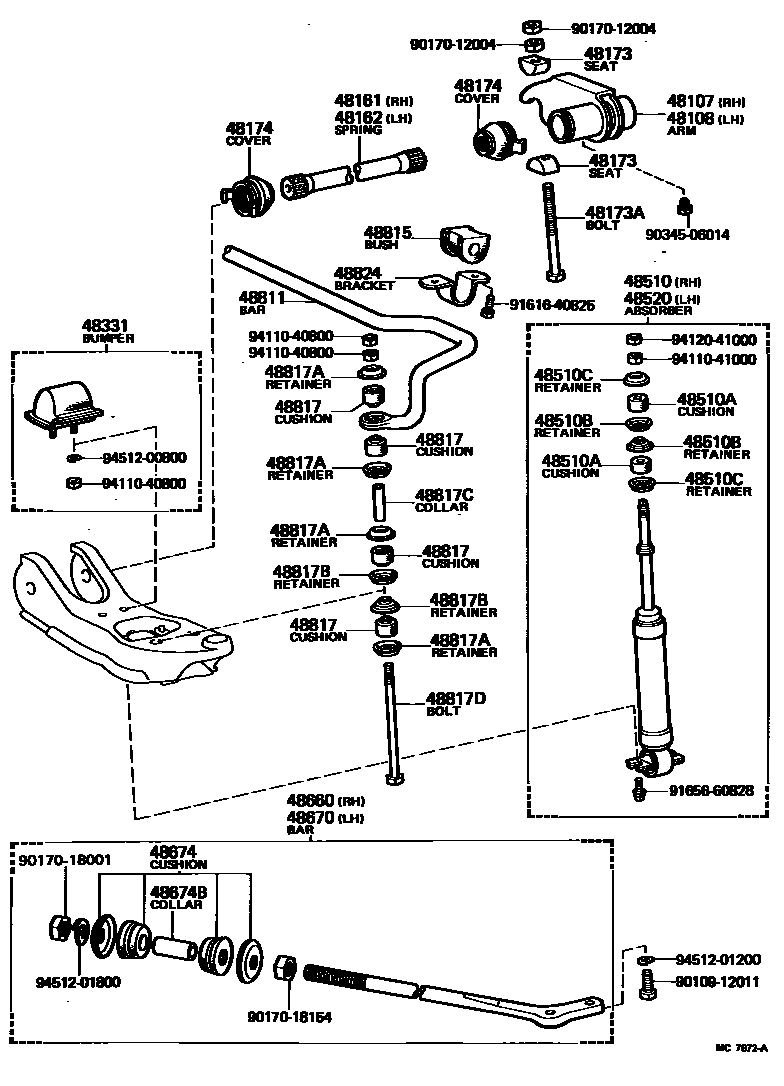

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1

48107ARM SUB-ASSY, ANCHOR, RH

main48107-35010iLN30,40,RN30,33,4#197808-198105

sub90345-06014

main48107-35011iLN30,40,RN33,35,4#198105-198308

main48107-35012iLN30,40,41,RN35,45198308-198809

48108ARM SUB-ASSY, ANCHOR, LH

main48108-35010iLN30,40,RN30,33,4#197808-198105

sub90345-06014

main48108-35011iLN30,40,RN33,35,4#198105-198308

main48108-35012iLN30,40,41,RN35,45198308-198809

48161SPRING, TORSION BAR, RH

main48161-35010iLN30,40,RN30,33,4#197808-198110

main48161-35030iLN30,40,41198110-198809

48162SPRING, TORSION BAR, LH

main48162-35010iLN30,40,RN30,33,4#197808-198110

main48162-35030iLN30,40,41198110-198809

48173SEAT, ANCHOR ARM ADJUSTER

main48173-35010×4iLN30,40,41,RN30,33,35,4#197808-198809

48173ABOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING)

main90101-12038×2iLN30,40,41,RN30,33,35,4#197808-198809

48174COVER, TORSION BAR DUST

main48174-35010×4iLN30,40,RN30,33,4#197808-198105

main48174-35020×2iLN30,40,41,RN33,35,4#198105-198809

RR

48331BUMPER, FRONT SPRING, NO.1

main48304-35040×2iRN36197910-198001

sub48304-35100

main48304-35070×2iRN36,39198011-198310

sub48304-35110

main48304-39045×2iLN30,40,41,RN30,33,35,4#197808-198809

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-39015iRN36,39197910-198310

sub48510-39016

main48510-39045iLN36,46198110-198310

main48511-39245iRN30,40197808-197904

main48511-39246iRN30,40197904-197905

main48511-39247iLN30,40,RN30,33,4#197905-198008

main48511-39315iLN30,40,41,RN33,35,4#198008-198809

sub48511-39316

48510ACUSHION, FRONT SHOCK ABSORBER

main90948-01002×4iLN30,40,41,RN30,33,35,4#197808-198809

main90948-01003×4iLN36,46,RN36,39197910-198310

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02002×4iLN36,46,RN36,39197910-198310

main90948-02005×4iLN30,40,41,RN30,33,35,4#197808-198809

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main90948-02004×4iLN30,40,41,RN30,33,35,4#197808-198809

main90948-02007×2iLN36,46,RN36,39197910-198310

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-39015iRN36,39197910-198310

sub48510-39016

main48510-39045iLN36,46198110-198310

main48511-39245iRN30,40197808-197904

main48511-39246iRN30,40197904-197905

main48511-39247iLN30,40,RN30,33,4#197905-198008

main48511-39315iLN30,40,41,RN33,35,4#198008-198809

sub48511-39316

48660BAR ASSY, STRUT, RH

main48661-39025iRN30,33,35,4#197808-198809

main48661-39035iLN30,40,41197912-198809

48670BAR ASSY, STRUT, LH

main48671-39015iRN30,33,35,4#197808-198809

main48671-39025iLN30,40,41197912-198809

48674CUSHION, STRUT BAR

main48674-29026×4iLN30,40,41197912-198809

main48674-39035×4iRN30,33,35,4#197808-198809

48674BCOLLAR(FOR STRUT BAR CUSHION)

main90387-18002×2iLN30,40,41,RN30,33,35,4#197808-198809

48811BAR, STABILIZER, FRONT

main48811-35080iRN30,33,35,4#197808-198809

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-16010×2iRN30,33,35,4#197808-198809

48817CUSHION, FRONT STABILIZER

main48817-30010×8iRN30,33,35,4#197808-198809

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02032×8iRN30,33,35,4#197808-198809

48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

main90948-02015×4iRN30,33,35,4#197808-198809

48817CCOLLAR(FOR STABILIZER BAR)

main90387-09004×2iRN30,33,35,4#197808-198809

48817DBOLT(FOR FRONT STABILIZER)

main90101-08038×2iRN30,33,35,4#197808-198809

48824BRACKET, STABILIZER, FRONT

main48824-35030×2iRN30,33,35,4#197808-198809

9010912011

main90109-12011

9017012004

main90170-12004

9017018001

main90170-18001

9017018154

main90170-18154

9034506014

main90345-06014

9161640825

main91616-40825

9165660828

main91656-60828

9411040800

main94110-40800

9411041000

main94110-41000

9412041000

main94120-41000

9451200800

main94512-00800

9451201200

main94512-01200

9451201800

main94512-01800

38 parts on this diagram · 3 diagrams in section
