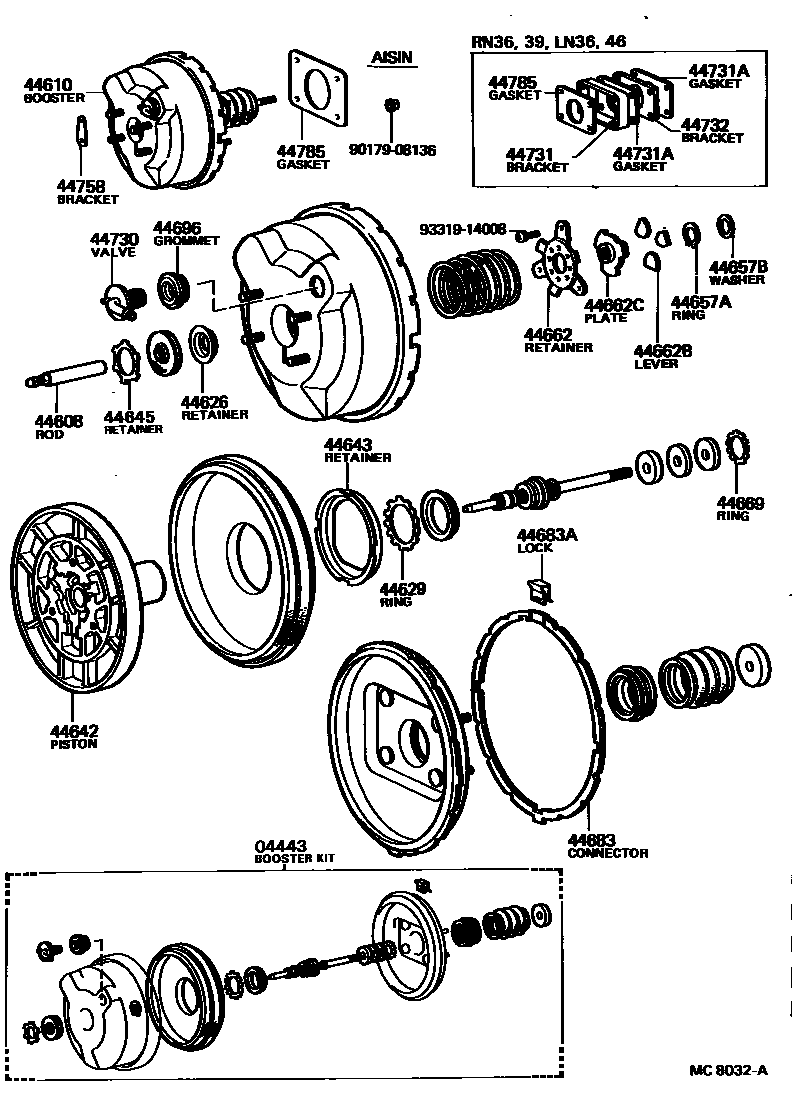

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

04443BOOSTER KIT, BRAKE

main04443-35060iRN30,40197808-197912

main04443-35061iRN33,35,4#197912-198809

main04443-35140iRN36,39197910-198310

main04443-35220iLN30,40,41197912-198809

main04443-35270iLN36,46198110-198310

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-35100iLN3#,4#,RN3#,4#197808-198809

44610BOOSTER ASSY, BRAKE

main44610-35100iRN30,40..STD197808-197912

main44610-35101iRN33,35,43..STD197912-198809

main44610-35110iRN30,40..DLX,SDX197808-197912

main44610-35111iRN33,35,4#..DLX,SDX197912-198809

main44610-35250iRN36,39197910-198310

main44610-35290iLN30,40,41197912-198809

main44610-35410iLN36,46198110-198310

44626RETAINER, BOOSTER ROD CUP

main44626-60010iLN3#,4#,RN3#,4#197808-198809

44629RING, CIRCULAR INTERNAL

main44629-30090iLN3#,4#,RN3#,4#197808-198809

44642PISTON, BRAKE BOOSTER

main44642-14170iLN3#,4#,RN3#,4#197808-198809

44643RETAINER, DIAPHRAGM

main44643-60010iLN3#,4#,RN3#,4#197808-198809

44645RETAINER, BOOSTER PUSH ROD SEAL

main44628-60010iLN3#,4#,RN3#,4#197808-198809

44657ARING, SNAP(FOR BOOSTER AIR VALVE STOPPER)

main96150-01600iLN3#,4#,RN3#,4#197808-198809

44657BWASHER, PLATE(FOR BOOSTER AIR VALVE STOPPER)

main44645-20100iLN3#,4#,RN3#,4#197808-198809

44662RETAINER, REACTION, NO.1

main44662-20100iLN3#,4#,RN3#,4#..DLX,SDX197808-198809

main44662-35100iRN30,33,35,40,43..STD197808-198809

44662BLEVER, REACTION

main44661-35100iLN3#,4#,RN3#,4#197808-198809

44662CPLATE, REACTION, NO.1

main44607-35100iRN30,33,35,40,43..STD197808-198809

main44653-12100iLN36,46,RN36,39197910-198310

main44653-20150iLN30,40,41,RN30,33,35,4#..DLX,SDX197808-198809

44669RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER)

main44669-60010iLN3#,4#,RN3#,4#197808-198809

44683CONNECTOR, BOOSTER BODY

main44682-20150iLN3#,4#,RN3#,4#197808-198809

44683ALOCK, CONNECTOR

main44683-20100iLN3#,4#,RN3#,4#197808-198809

44696GROMMET, CHECK VALVE

main90480-24439iRN36,39197808-198310

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20010iRN33,35,4#197912-198809

main44730-20030iRN36,39197910-198310

main44730-20060iRN30,40197808-197912

main44730-60040iLN3#,4#197912-198809

44731BRACKET, BRAKE BOOSTER, FRONT

main44731-35060iLN36,46,RN36,39197910-198310

44731AGASKET, BRAKE BOOSTER BRACKET

main44785-35011iLN36,46,RN36,39197910-198310

44732BRACKET, BRAKE BOOSTER, REAR

main44732-35040iLN36,46,RN36,39197910-198310

44758BRACKET, VACUUM CHECK VALVE

main44758-20060iRN3#,40197808-198310

main44758-35060iRN33,35,4#197912-198809

44785GASKET, BRAKE BOOSTER

main44785-35010iRN30,40197808-197910

sub44785-35011

main44785-35011iLN3#,4#,RN3#,4#197910-198809

9017908136

main90179-08136

9331914008

main93319-14008

25 parts on this diagram · 3 diagrams in section
