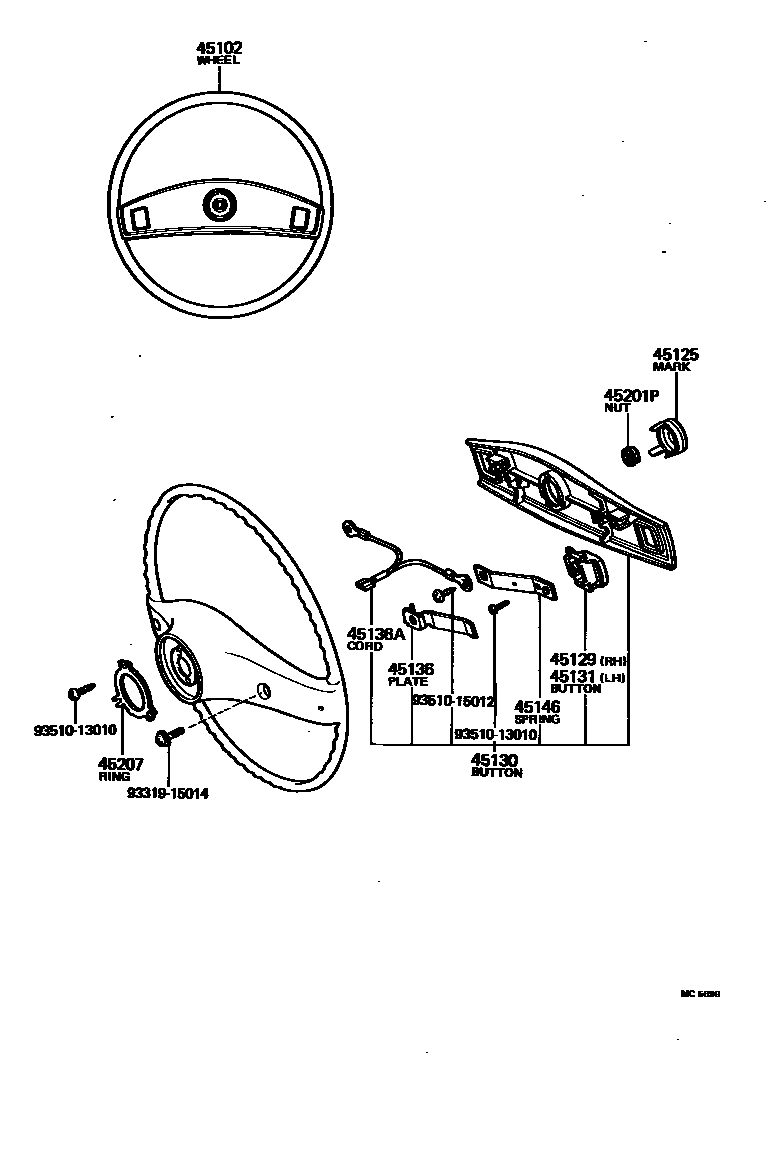

STEERING WHEEL

0001 1 0002 1 0003 1 0004 1

45102WHEEL SUB-ASSY, STEERING

main45100-35140-01iLN30,40,RN30,33,4#..DLX,STD197808-198110

BLACK,BLACK,TRIM2#

main45100-35140-04iLN30,40,RN30,33,4#..DLX,STD197808-198110

BLUE,BLUE,TRIM8#

main45100-35140-05iLN30,40,RN30,33,4#..DLX197808-198110

BEIGE,BEIGE,TRIM4#

main45100-35170iRN36;RN4#..SDX197808-198110

3-SPOKE,URETHANE

main45100-35171-01iLN36,46,RN39;LN40,RN45..SDX198110-198310

3-SPOKE,URETHANE,BLACK,BLACK,TRIM2#

main45100-35171-04iLN40,RN45..SDX198110-198310

3-SPOKE,URETHANE,BLUE,BLUE,TRIM8#

main45100-35171-06iLN36,46,RN39;LN40,RN45..SDX198110-198310

3-SPOKE,URETHANE,BROWN,BROWN,TRIM4#

main45100-35180iRN36197910-198110

2-SPOKE,BLACK,TRIM2#

main45100-35181-01iLN36,46,RN39198110-198310

2-SPOKE,BLACK,BLACK,TRIM2#

main45100-35181-06iLN36,46,RN39198110-198310

2-SPOKE,BROWN,BROWN,TRIM4#

main45100-35200-01iLN30,40,41,RN35,45..DLX,STD198110-198809

BLACK,BLACK,TRIM2#

main45100-35200-04iLN30,40,41,RN35,45..DLX,STD198110-198809

BLUE,BLUE,TRIM8#

main45100-35200-06iLN30,40,41,RN35,45..DLX198110-198809

BROWN,BROWN,TRIM4#

45125MARK, STEERING WHEEL PAD

main45125-35030iLN30,40,RN30,33,4#..DLX,STD197808-198110

main45125-35050iRN36;RN4#..SDX197808-198110

3-SPOKE

main45125-35051-01iLN36,46,RN39;LN40,RN45..SDX198110-198310

3-SPOKE,BLACK,BLACK,TRIM2#

main45125-35051-04iLN36,46,RN39;LN40,RN45..SDX198110-198310

3-SPOKE,BLUE,BLUE,TRIM8#

main45125-35060-01iLN36,46,RN39198110-198310

2-SPOKE,BLACK,BLACK,TRIM2#

main45125-35060-05iRN36197910-198110

2-SPOKE,BEIGE,BEIGE,TRIM4#

main45125-35060-06iLN36,46,RN39198110-198310

2-SPOKE,BROWN,BROWN,TRIM4#

main45125-35070-01iLN30,40,41,RN35,45..DLX,STD198110-198809

BLACK,BLACK,TRIM2#

main45125-35070-04iLN30,40,41,RN35,45..DLX198110-198809

BLUE,BLUE,TRIM8#

main45125-35070-06iLN30,40,41,RN35,45..DLX198110-198809

BROWN,BROWN,TRIM4#

45129BUTTON, HORN, NO.2

main45129-35010iLN30,40,RN30,33,4#..DLX,STD197808-198110

main45131-14050iRN36;RN4#..SDX197808-198110

3-SPOKE

main45131-35090iLN36,46,RN39198110-198310

2-SPOKE

main45131-35110iLN30,40,41,RN35,45..DLX,STD198110-198809

45130BUTTON ASSY, HORN

main45130-35100-01iLN30,40,RN30,33,4#..DLX,STD197808-198110

BLACK,BLACK,TRIM2#

main45130-35100-04iLN30,40,RN30,33,4#..DLX,STD197808-198110

BLUE,BLUE,TRIM8#

main45130-35100-05iLN30,40,RN30,33,4#..DLX197808-198110

BEIGE,BEIGE,TRIM4#

main45130-35130iRN36;RN4#..SDX197808-198110

3-SPOKE

main45130-35131-01iLN36,46,RN39;LN40,RN45..SDX198110-198310

3-SPOKE,BLACK,BLACK,TRIM2#

main45130-35131-04iLN40,RN45..SDX198110-198310

BLUE,BLUE,TRIM8#

main45130-35131-06iLN36,46,RN39;LN40,RN45..SDX198110-198310

BROWN,BROWN,TRIM4#

main45130-35140iRN36197910-198110

2-SPOKE,BLACK,TRIM2#

main45130-35141-01iLN36,46,RN39198110-198310

2-SPOKE,BLACK,BLACK,TRIM2#

main45130-35141-06iLN36,46,RN39198110-198310

BROWN,BROWN,TRIM4#

main45130-35160-01iLN30,40,41,RN35,45..DLX,STD198110-198809

BLACK,BLACK,TRIM2#

main45130-35160-04iLN30,40,41,RN35,45..DLX,STD198110-198809

BLUE,BLUE,TRIM8#

main45130-35160-06iLN30,40,41,RN35,45..DLX198110-198809

BROWN,BROWN,TRIM4#

45131BUTTON, HORN, NO.1

main45129-35030iLN30,40,41,RN35,45..DLX,STD198110-198809

main45131-14050iLN36,46,RN39;LN40,RN45..SDX198110-198310

3-SPOKE

main45131-35070iLN30,40,RN30,33,4#..DLX,STD197808-198110

main45131-35090iRN36197910-198110

2-SPOKE

main45131-35091iLN36,46,RN39198110-198310

2-SPOKE

45136PLATE, HORN BUTTON CONTACT

main45136-14040×3iLN36,46,RN39;LN40,RN45..SDX198110-198310

3-SPOKE

main45136-26020×2iLN36,46,RN36,39197910-198310

2-SPOKE

main45136-35030iLN30,40,RN30,33,4#..DLX,STD197808-198110

RH

main45136-35040iLN30,40,41,RN35,45..DLX,STD198110-198809

RH

main45137-35030iLN30,40,RN30,33,4#..DLX,STD197808-198110

LH

main45137-35040iLN30,40,41,RN35,45..DLX,STD198110-198809

LH

45136ACORD(FOR HORN CONTACT RING)

main90945-02006iRN40..SDX197808-197908

3-SPOKE,L=120

main90945-02040×2iLN36,46,RN39198110-198310

2-SPOKE

main90945-02041iLN30,40,41,RN35,45..DLX,STD198110-198809

2-SPOKE

main90945-02046iLN36,46,RN39;LN40,RN45..SDX198110-198310

3-SPOKE,L=110

45146SPRING, HORN BUTTON CONTACT

main45146-14040×3iLN36,46,RN39;LN40,RN45..SDX198110-198310

3-SPOKE

main45146-35040×2iLN30,40,RN30,33,4#..DLX,STD197808-198110

main45146-35050×2iLN36,46,RN36,39197910-198310

2-SPOKE

main45146-35060×2iLN30,40,41,RN35,45..DLX,STD198110-198809

45201PNUT, STEERING WHEEL SET

main90179-12086iLN3#,4#,RN3#,4#197808-198809

45207RING, HORN CONTACT

main45176-20030iLN3#,4#,RN3#,4#197808-198809

9331915014

main93319-15014

9351013010

main93510-13010

9351015012

main93510-15012

13 parts on this diagram · 4 diagrams in section
