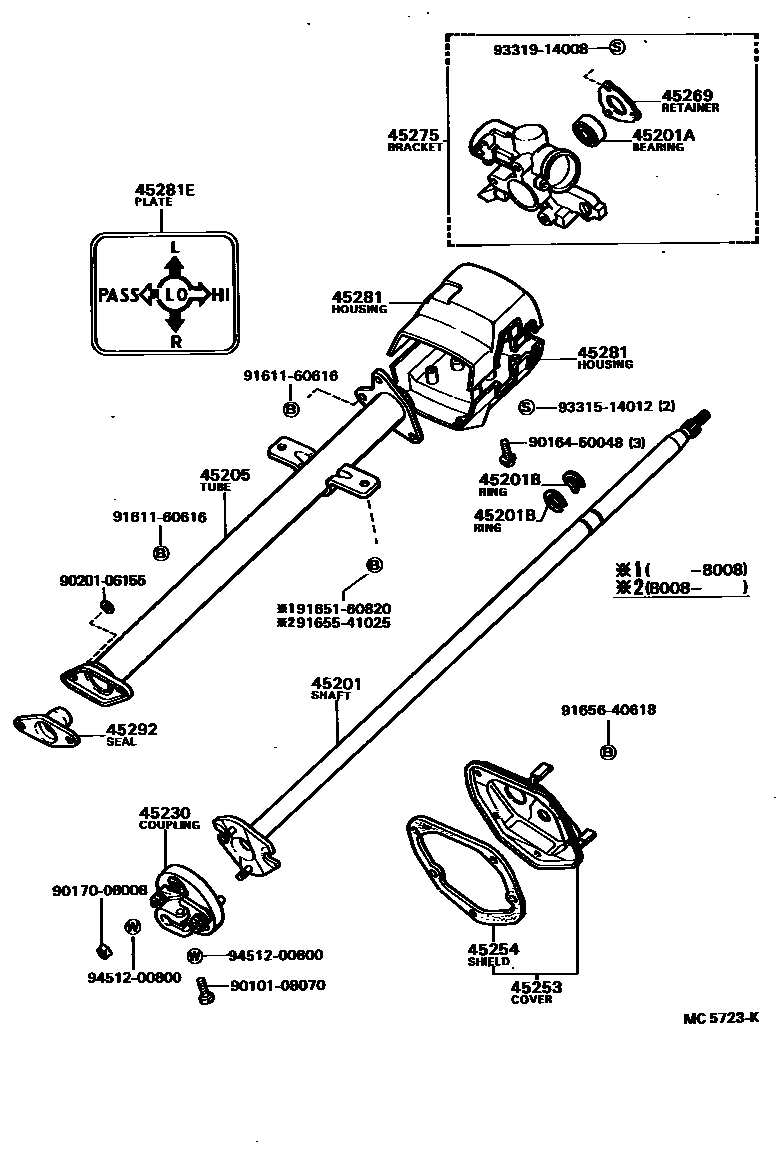

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1

45201SHAFT SUB-ASSY, STEERING MAIN

main45201-35090iRN30,33,35,40,43..STD197808-198809

W/O STEERING LOCK

sub45201-35100

main45201-35100iLN30,40,41,RN30,33,35,4#197808-198809

W/STEERING LOCK

main45210-22050iLN36,46,RN39198110-198310

W/TILT STEERING

main45210-35020iLN36,46,RN36,39197910-198310

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18001iLN36,46,RN39198110-198310

UPR,W/TILT STEERING

main90363-18038iLN36,46,RN36,39197910-198310

UPR

main90363-18038iLN30,40,41,RN30,33,35,4#197808-198809

main90363-28001iLN36,46,RN39198110-198310

CTR,W/TILT STEERING

main90363-30007iLN36,46,RN36,39197910-198310

LWR

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iLN3#,4#,RN3#,4#197808-198809

main90520-17269iLN3#,4#,RN3#,4#197808-198809

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-35060iLN30,40,RN30,33,4#..4F,4H,5F197808-198008

sub45205-35100

main45205-35061iLN30,40,41,RN33,35,4#..4F,4H,5F198008-198809

sub45205-35101

main45205-35080iRN36197910-198008

main45205-35081iLN36,46,RN36,39198008-198310

main45205-35090iLN36,46,RN39198110-198310

main45205-35100iLN30,40..5H197912-198008

main45205-35101iLN30,40..5H198008-198809

45230COUPLING ASSY, FLEXIBLE

main45230-35020iLN30,40,41,RN30,33,35,4#197808-198809

main45230-35030iLN36,46,RN36,39197910-198310

45253COVER, STEERING COLUMN HOLE

main45025-35020iLN36,46,RN36,39197910-198310

sub45025-35030

main45025-89101iLN30,40,RN30,33,35,4#..4F,5F197808-198809

main45025-89102iLN30,40,RN30,33,35,4#..4H,5H197808-198809

sub45025-89105

45254SHIELD, STEERING COLUMN HOLE

main45254-89101iLN3#,40,46,RN3#,4#197808-198809

45269RETAINER, MAIN SHAFT BEARING

main45269-35010iLN3#,4#,RN3#,4#197808-198809

45275BRACKET, STEERING COLUMN, UPPER

main45280-22181iLN36,46,RN39198110-198209

W/TILT STEERING

sub45280-60110

main45280-60110iLN36,46,RN39198209-198310

W/TILT STEERING

main45307-35040iRN30,33,35,40,43..STD197808-198208

W/O STEERING LOCK

sub45307-35041

main45307-35041iRN35..STD198208-198809

W/O STEERING LOCK

main45307-35050iLN3#,4#,RN3#,4#197808-198208

W/STEERING LOCK

sub45307-35051

main45307-35051iLN3#,4#,RN3#,45198208-198809

W/STEERING LOCK

45281HOUSING, STEERING COLUMN

main45286-35080-01iRN30,33,35,4#..4H197808-198508

UPR,W/STEERING LOCK,BLACK,BLACK,TRIM2#

main45286-35080-04iRN30,33,35,4#..4H197808-198508

UPR,W/STEERING LOCK,BLUE,BLUE,TRIM8#

main45286-35080-05iRN30,33,4#..4H..(DLX,SDX)197808-198110

UPR,W/STEERING LOCK,BEIGE,BEIGE,TRIM4#

main45286-35080-06iRN35,45..4H..(DLX,SDX)198110-198508

UPR,W/STEERING LOCK,BROWN,BROWN,TRIM4#

main45286-35090-01iRN30,33,35,40,43..STD197808-198508

UPR,W/O STEERING LOCK,BLACK,BLACK,TRIM2#

main45286-35090-04iRN35..STD197808-198809

UPR,W/O STEERING LOCK,BLUE,BLUE,TRIM8#

main45286-35100-01iLN30,40,41,RN3#,4#..4F,5F197808-198809

UPR,W/STEERING LOCK,BLACK,BLACK,TRIM2#

main45286-35100-04iLN30,40,41,RN3#,4#..4F,5F197808-198809

UPR,W/STEERING LOCK,BLUE,BLUE,TRIM8#

main45286-35100-05iLN30,40,RN3#,4#..4F,5F197808-198110

UPR,W/STEERING LOCK,BEIGE,BEIGE,TRIM4#

main45286-35100-06iLN3#,4#,RN3#,45..4F,5F198110-198809

UPR,W/STEERING LOCK,BROWN,BROWN,TRIM4#

main45286-35150-01iLN30,40..5H197912-198809

UPR,BLACK,BLACK,TRIM2#

sub45286-35150

main45286-35150-04iLN30,40..5H197912-198809

UPR,BLUE,BLUE,TRIM8#

sub45286-35150

main45286-35150-05iLN30,40..5H197912-198110

UPR,BEIGE,BEIGE,TRIM4#

sub45286-35150

main45286-35150-06iLN41,RN35,45..5H198110-198809

UPR,BROWN,BROWN,TRIM4#

sub45286-35150

main45286-35160-01iRN35..STD198508-198809

UPR,W/O STEERING LOCK,BLACK,BLACK,TRIM2#

sub45286-35160

main45286-35170-01iLN36,46,RN39198110-198310

UPR,W/TILT STEERING,BLACK,BLACK,TRIM2#

main45286-35170-06iLN36,46,RN39198110-198310

UPR,W/TILT STEERING,BROWN,BROWN,TRIM4#

main45287-35050-01iLN30,40,RN30,33,4#..4H,5H197808-198110

LWR,BLACK,BLACK,TRIM2#

main45287-35050-04iLN30,40,RN30,33,4#..4H,5H197808-198110

LWR,BLUE,BLUE,TRIM8#

main45287-35050-05iLN30,40,RN30,33,4#..(4H,5H)..(DLX,SDX)197808-198110

LWR,BEIGE,BEIGE,TRIM4#

main45287-35060-01iLN30,40,RN3#,4#..4F,5F197808-198110

LWR,BLACK,BLACK,TRIM2#

main45287-35060-04iLN30,40,RN3#,4#..4F,5F197808-198110

LWR,BLUE,BLUE,TRIM8#

main45287-35060-05iLN30,40,RN3#,4#..4F,5F197808-198110

LWR,BEIGE,BEIGE,TRIM4#

main45287-35090-01iLN3#,4#,RN3#,45..4F,5F198110-198809

LWR,BLACK,BLACK,TRIM2#

main45287-35090-04iLN3#,4#,RN3#,45..4F,5F198110-198809

LWR,BLUE,BLUE,TRIM8#

main45287-35090-06iLN3#,4#,RN3#,45..4F,5F198110-198809

LWR,BROWN,BROWN,TRIM4#

main45287-35100-01iLN30,40,RN35,45..4H,5H198110-198809

LWR,BLACK,BLACK,TRIM2#

main45287-35100-04iLN41,RN35,45..5H198110-198809

LWR,BLUE,BLUE,TRIM8#

main45287-35100-06iLN30,40,RN35,45..(4H,5H)..(DLX,SDX)198110-198809

LWR,BROWN,BROWN,TRIM4#

main45287-35120-01iLN36,46,RN39198110-198310

LWR,W/TILT STEERING,BLACK,BLACK,TRIM2#

main45287-35120-06iLN36,46,RN39198110-198310

LWR,W/TILT STEERING,BROWN,BROWN,TRIM4#

45281EPLATE, SAFETY CAUTION

main45283-22010iLN3#,4#,RN3#,4#197808-198809

45292SEAL, MAIN SHAFT LOWER DUST

main45292-35020iLN30,40,RN30,33,4#197808-198007

sub45292-35021

main45292-35021iLN30,40,41,RN33,35,4#198007-198809

main45292-35030iLN36,46,RN36,39197910-198310

9010108070

main90101-08070

9016450048

main90164-50048

9017008008

main90170-08008

9020106155

main90201-06155

9161160616

main91611-60616

9165160820

main91651-60820

9165541025

main91655-41025

9165640618

main91656-40618

9331514012

main93315-14012

9331914008

main93319-14008

9451200800

main94512-00800

23 parts on this diagram · 3 diagrams in section
