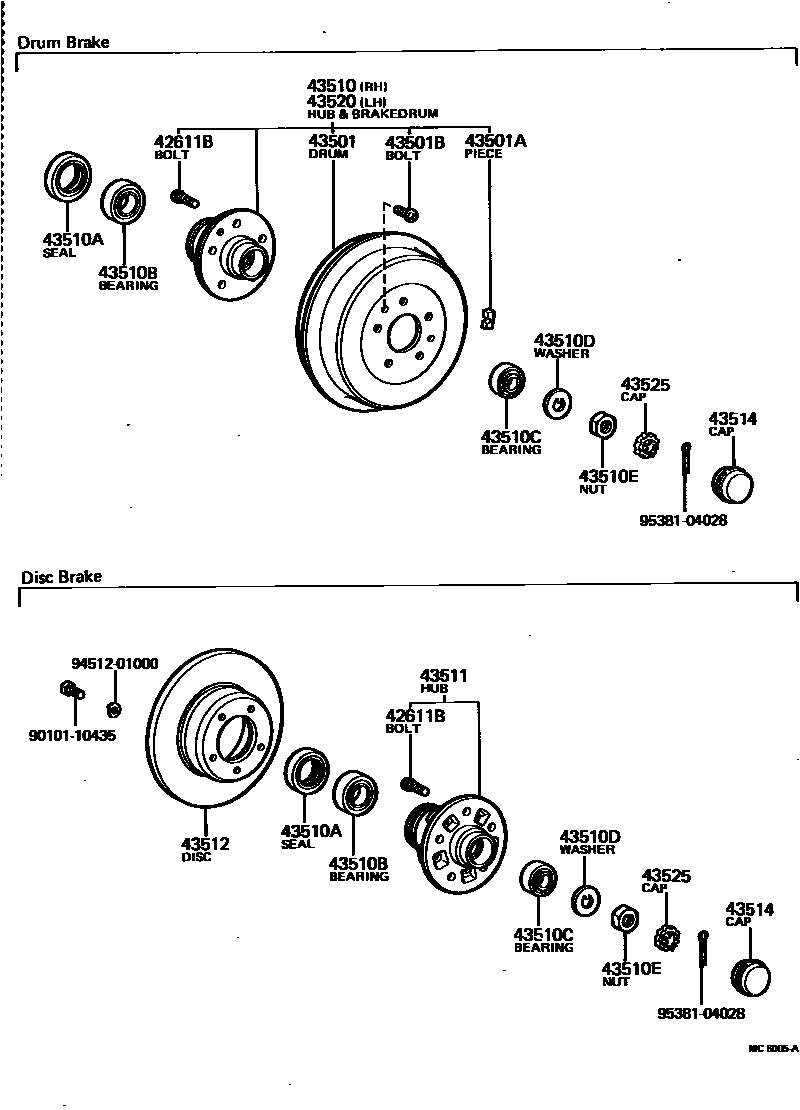

FRONT AXLE HUB

0001 1 0002 1

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02014×12iRN36197910-198008

L=38

main90942-02035×10iLN30,40,41,RN30,33,35,4#..DLX,SDX197808-198809

sub90942-02047

main90942-02037×10iRN30,33,35,40,43..STD197808-198809

sub90942-02049

main90942-02044×12iLN36,46,RN36,39198008-198310

L=52

sub90942-02053

43501DRUM SUB-ASSY, FRONT BRAKE

main43512-35030×2iRN30,33,35,40,43..STD197808-198809

43501APIECE, BALANCE (FOR FRONT BRAKE DRUM)

main90937-01100iRN30,33,35,40,43..STD197808-198809

main90937-01117iRN30,33,35,40,43..STD197808-198809

main90937-01118iRN30,33,35,40,43..STD197808-198809

main90937-01119iRN30,33,35,40,43..STD197808-198809

main90937-01146iRN30,33,35,40,43..STD197808-198809

43501BBOLT, SET (FOR FRONT BRAKE DRUM SETTING)

main90113-10035×2iRN30,33,35,40,43..STD197808-198809

43510HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH

main43510-35050iRN30,33,35,40,43..STD197808-198809

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-50136×2iLN30,40,41,RN30,33,35,4#197808-198809

main90311-62001×2iLN36,46,RN36,39197910-198310

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-34039×2iLN30,40,41,RN30,33,35,4#197808-198809

sub90368-34001

main90368-49084×2iLN36,46,RN36,39197910-198310

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-21065×2iLN30,40,41,RN30,33,35,4#197808-198809

sub90368-21001

main90368-45087×2iLN36,46,RN36,39197910-198310

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-20007×2iLN30,40,41,RN30,33,35,4#197808-198809

main90214-42030×2iLN36,46,RN36,39197910-198310

43510ENUT (FOR STEERING KNUCKLE)

main90170-19185×2iLN30,40,41,RN30,33,35,4#197808-198809

43511HUB, FRONT AXLE

main43502-26010×2iLN30,40,41,RN30,33,35,4#..DLX,SDX197808-198809

sub43502-26H00

main43502-60020×2iLN36,46,RN36,39198008-198310

sub43502-39095

main43511-60021×2iRN36197910-198008

43512DISC, FRONT

main43512-26030×2iRN30,40..DLX,SDX197808-197909

main43512-26031×2iLN30,40,41,RN30,33,35,4#..DLX,SDX197909-198809

main43512-35040×2iRN36197910-198008

main43512-35070×2iLN36,46,RN36,39198008-198310

43514CAP, FRONT HUB GREASE

main43423-60011×2iLN36,46,RN36,39197910-198310

sub43423-35010

main43514-35010×2iLN30,40,41,RN30,33,35,4#197808-198809

43520HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH

main43510-35050iRN30,33,35,40,43..STD197808-198809

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-22010×2iLN30,40,41,RN30,33,35,4#197808-198809

9010110435

main90101-10435

9451201000

main94512-01000

9538104028

main95381-04028

18 parts on this diagram · 2 diagrams in section
