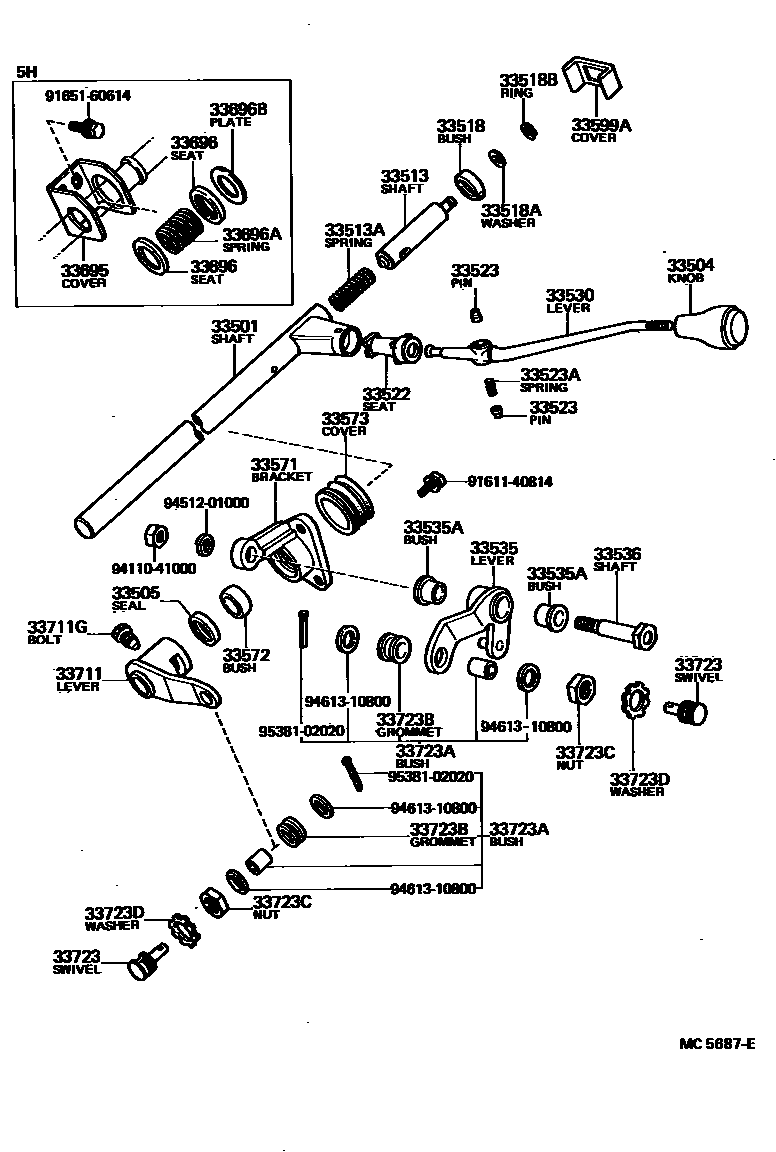

CONTROL SHAFT & CROSSSHAFT

0001 1 0002 1 0003 1 0004 1

33501SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)

main33501-35110iRN30,33,35,4#..4H197808-198508

main33501-35131iLN30,40..5H197912-198508

33504KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT)

main33504-30110iLN30,40,41,RN30,33,35,4#..4H,5H197808-198809

33505SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT)

main33505-30010iLN30,40,41,RN30,33,35,4#..4H,5H197808-198809

33513SHAFT, CONTROL SHAFT BRACKET, UPPER

main33513-35040iLN30,40,41,RN30,33,35,4#..4H,5H197808-198809

33513ASPRING, COMPRESSION (FOR BRACKET UPPER SHAFT)

main90501-16690iLN30,40,41,RN30,33,35,4#..4H,5H197808-198809

33518BUSH, UPPER CONTROL SHAFT PIECE

main33518-35010iLN30,40,41,RN30,33,35,4#..4H,5H197808-198809

33518AWASHER, PLATE (FOR UPPER CONTROL SHAFT PIECE BUSH)

main90201-08056iLN30,40,41,RN30,33,35,4#..4H,5H197808-198809

33518BRING, E (FOR UPPER CONTROL SHAFT PIECE BUSH)

main90523-06019iLN30,40,41,RN30,33,35,4#..4H,5H197808-198809

33522SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT)

main33522-30030iLN30,40,41,RN30,33,35,4#..4H,5H197808-198809

33523PIN, SHIFT LEVER (FOR COLUMN SHIFT)

main33523-30010×2iLN30,40,41,RN30,33,35,4#..4H,5H197808-198809

33523ASPRING, COMPRESSION

main90501-04062iLN30,40,41,RN30,33,35,4#..4H,5H197808-198809

33530LEVER ASSY, SHIFT (FOR COLUMN SHIFT)

main33541-35100iLN30,40,41,RN30,33,35,4#..4H,5H197808-198809

33535LEVER, CONTROL SELECT (FOR COLUMN SHIFT)

main33535-35060iLN30,40,RN30,33,35,4#..4H,5H197808-198401

main33535-35090iLN40..5H198401-198508

33535ABUSH (FOR CONTROL SELECT LEVER)

main90386-13007×2iLN30,40,41,RN30,33,35,4#..4H,5H197808-198809

33536SHAFT, CONTROL SELECT LEVER (FOR COLUMN SHIFT)

main33536-25010iLN30,40,41,RN30,33,35,4#..4H,5H197808-198809

33571BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT)

main33571-35070iLN30,40,41,RN30,33,35,4#..4H,5H197808-198809

33572BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT)

main33572-35020iLN30,40,41,RN30,33,35,4#..4H,5H197808-198809

33573COVER, CONTROL SHAFT DUST, LOWER

main33577-35010iLN30,40,41,RN30,33,35,4#..4H,5H197808-198809

33599ACOVER, UPPER BRACKET

main33599-35010iLN30,40,41,RN30,33,35,4#..4H,5H197808-198809

33695COVER, SELECTING SPRING (FOR COLUMN SHIFT)

main33695-35011iLN30,40..5H197912-198508

33696SEAT, SELECT SPRING

main33696-26010×2iLN30,40..5H197912-198508

33696ASPRING, COMPRESSION

main90501-20713iLN30,40..5H197912-198508

33696BPLATE, SELECT RETURN

main33255-26010iLN30,40..5H197912-198508

33711LEVER, CONTROL SHAFT (FOR COLUMN SHIFT)

main33527-35070iLN30,40,RN30,33,35,4#..4H,5H197808-198308

main33527-35090iLN30,40,41,RN35,45..4H,5H198308-198809

33711GBOLT, CONTROL SHAFT LEVER LOCK

main33218-35010iLN30,40,41,RN30,33,35,4#..4H,5H197808-198809

33723SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT)

main33723-12020×2iLN30,40,41,RN30,33,35,4#..4H,5H197808-198809

33723ABUSH (FOR COLUMN SHIFT CONTROL SHAFT)

main90999-99017×2iLN30,40,41,RN30,33,35,4#..4H,5H197808-198809

33723BGROMMET (FOR COLUMN SHIFT CONTROL SHAFT)

main90480-17177×2iLN30,40,41,RN30,33,35,4#..4H,5H197808-198809

33723CNUT, HEXAGON (FOR CONTROL ROD SETTING)

main90170-18159×2iLN30,40,41,RN30,33,35,4#..4H,5H197808-198809

33723DWASHER, TOOTHED (FOR CONTROL ROD SETTING)

main90205-18012×2iLN30,40,41,RN30,33,35,4#..4H,5H197808-198809

9161140814

main91611-40814

9165160614

main91651-60614

9411041000

main94110-41000

9451201000

main94512-01000

9461310800

main94613-10800

9538102020

main95381-02020

36 parts on this diagram · 4 diagrams in section
