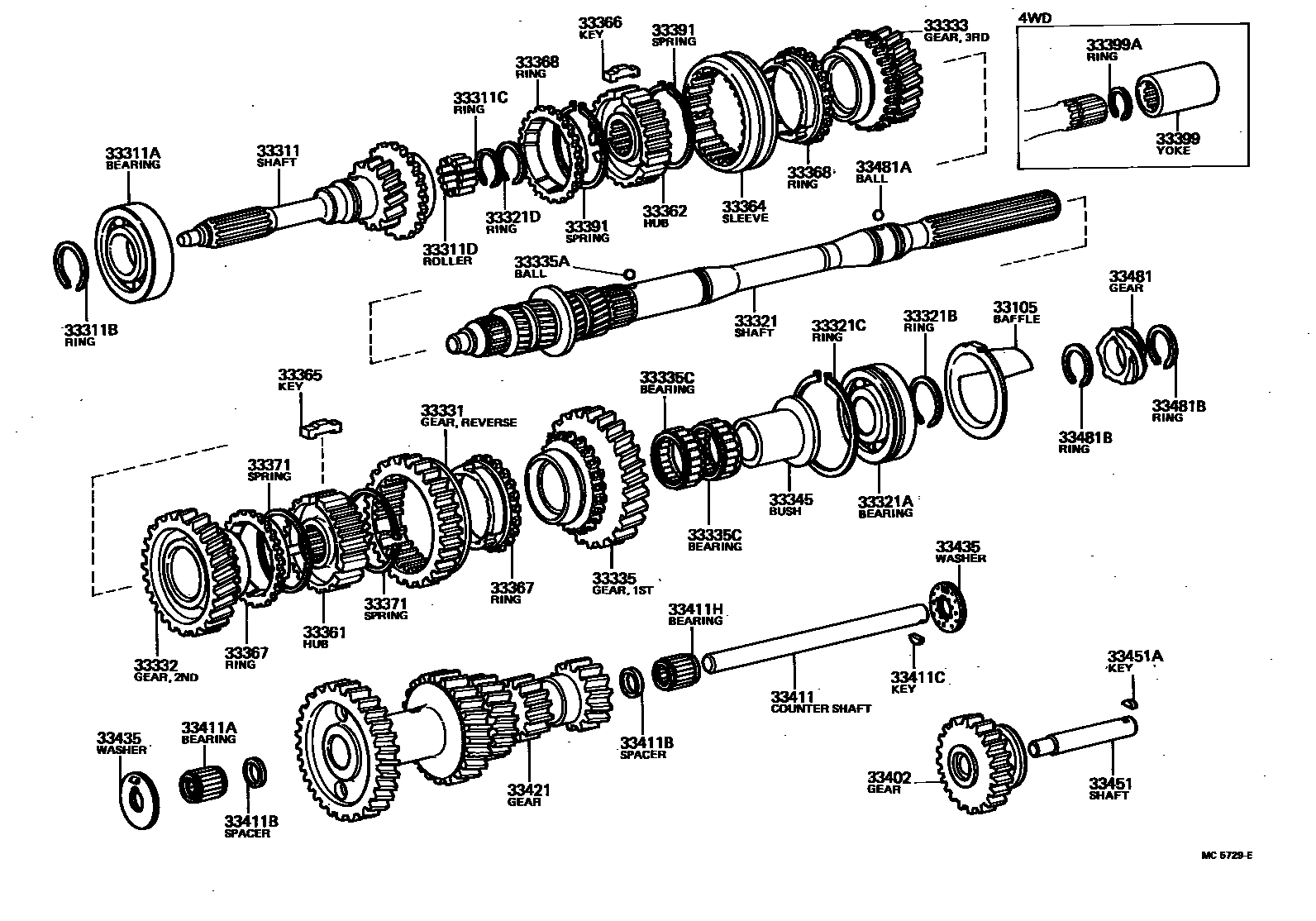

TRANSMISSION GEAR (MTM)
33105BAFFLE SUB-ASSY, EXTENSION HOUSING OIL
33311ABEARING (FOR INPUT SHAFT FRONT)
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
33311CRING, HOLE SNAP (FOR NEEDLE ROLLER)
33311DBEARING, INPUT SHAFT
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=1.89-1.94
T=1.95-2.00
T=2.01-2.06
T=2.07-2.12
T=2.13-2.18
T=2.19-2.24
T=2.25-2.30
33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)
33332GEAR, 2ND
N=28
N=28
N=29
N=33
33335ABALL, 1ST SHIFT RESTRICT
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33362HUB, TRANSMISSION CLUTCH, NO.2
33364SLEEVE, TRANSMISSION HUB, NO.2
33367RING, SYNCHRONIZER, NO.1
33368RING, SYNCHRONIZER, NO.2
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33399YOKE, TRANSMISSION SLEEVE (MTM)
33411COUNTERSHAFT
33411BSPACER(FOR COUNTER GEAR BEARING)
33411CKEY, WOODRUFF(FOR COUNTER GEAR SHAFT)
33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)
33435WASHER, COUNTER GEAR CASE SIDE THRUST
RR,T=2.25
RR,T=2.25
RR,T=2.35
RR,T=2.35
RR,T=2.45
RR,T=2.45
RR,T=2.55
RR,T=2.55
RR,T=2.65
RR,T=2.65
FR,T=2.21
33451AKEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT)
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=5
33481AKEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)
42 parts on this diagram · 4 diagrams in section
