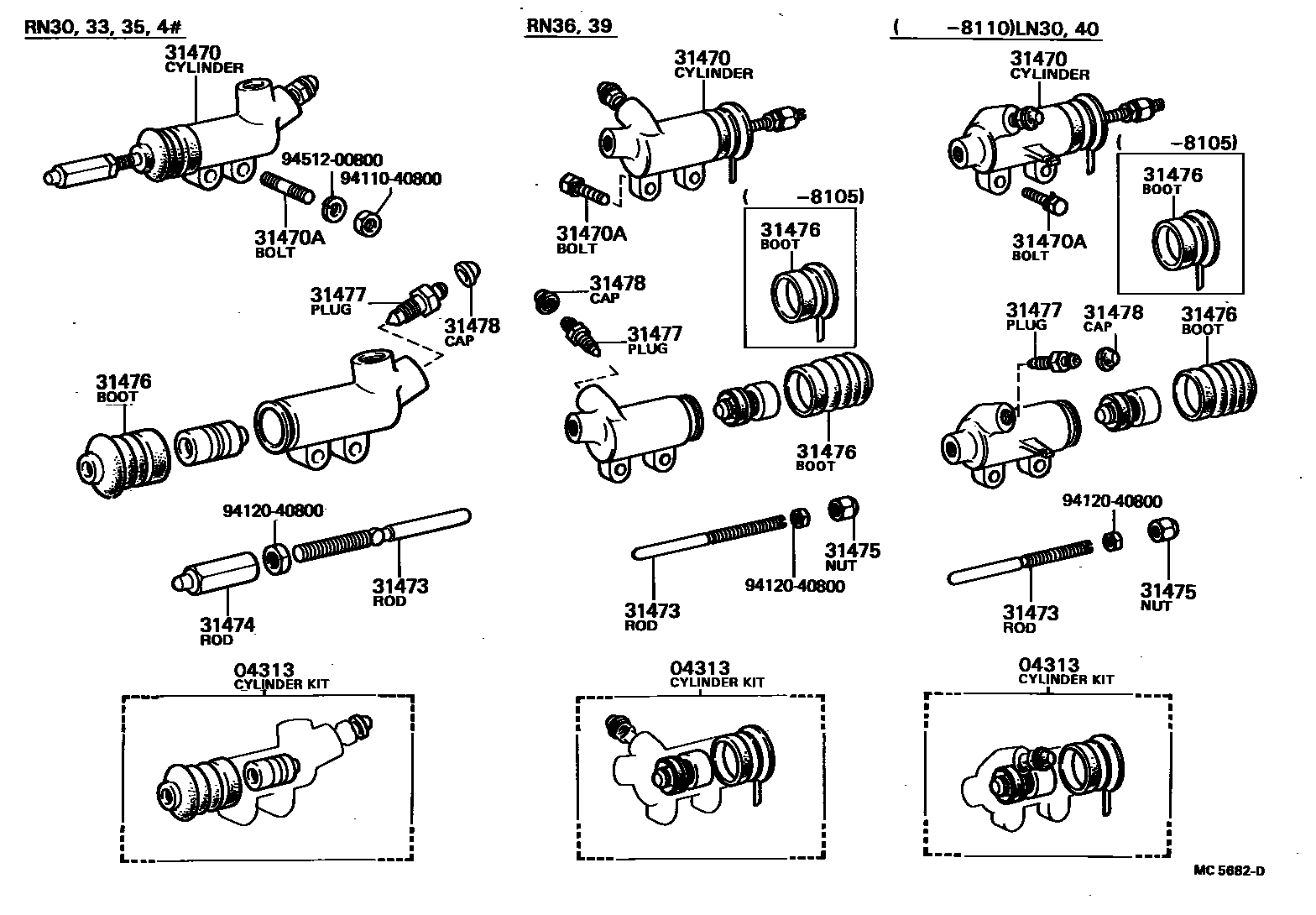

CLUTCH RELEASE CYLINDER

0001 1 0003 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-22020iLN40198401-198809

sub04313-12030

main04313-25010iLN30,40,RN36198105-198310

main04313-30054iLN30,40,RN36197910-198105

main04313-35030iRN30,33,35,4#197808-198508

main04313-35040iLN3#,4#198110-198401

sub04313-36140

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-20091iRN36197910-198106

sub31470-26020

main31470-26020iRN36,39198106-198310

main31470-26030iLN30,40198106-198110

main31470-30120iLN30,40197912-198106

sub31470-26030

main31470-30220iLN4#198401-198809

sub31470-30221

main31470-35030iRN30,33,35,4#197808-198508

main31470-35060iLN3#,4#198110-198401

main31470-35080iRN35,45198508-198809

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main90116-08018iRN30,33,4#197808-198011

main90116-08043iRN33,35,4#198011-198508

main91611-60825iLN3#,4#,RN36,39197910-198809

sub91611-B0825

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iLN41,RN35,45198401-198809

main31473-25010iRN39198105-198310

main31473-30021iLN30,40,RN36197910-198105

main31473-35030iRN30,33,35,4#197808-198508

main31473-35040iLN3#,4#198110-198401

31474ROD, CLUTCH RELEASE CYLINDER PUSH, NO.2

main31475-35010iRN30,33,35,4#197808-198508

31475NUT, CLUTCH RELEASE CYLINDER PUSH ROD

main31475-30020iLN30,40,RN36,39197910-198508

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-20040iLN30,40,RN36197910-198105

main31476-22010iLN3#,4#,RN36,39198105-198809

main31476-35020iRN30,33,35,4#197808-198508

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iLN3#,4#,RN3#,4#197808-198809

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iLN3#,4#,RN3#,4#197808-198809

9411040800

main94110-40800

9412040800

main94120-40800

9451200800

main94512-00800

12 parts on this diagram · 2 diagrams in section
