CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-14010iRN3#,4#197808-198212

sub04311-14011

main04311-14011iRN3#,45198212-198611

main04311-14030iLN41,RN35,45198611-198704

sub04311-14031

main04311-14031iLN41,RN35,45198704-198710

sub04311-14032

main04311-14032iLN41,RN35,45198710-198809

sub04311-28010

main04311-20050iLN30,40198103-198110

sub04311-14011

main04311-30080iLN3#,4#197912-198611

sub04311-14020

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-30030iLN3#,4#,RN3#,4#198101-198809

main47202-12010iRN3#,4#197808-198101

main47202-12050iLN30,40197912-198101

31410CYLINDER ASSY, CLUTCH MASTER

main31410-22140iLN41198508-198704

main31410-24011iLN3#,4#198103-198207

sub31410-24H00

main31410-24012iLN3#,4#198207-198508

sub31410-22140

main31410-30110iLN30,40197912-198101

sub31410-35110

main31410-35090iRN3#,4#197808-198704

sub31410-35091

main31410-35091iRN35,45198704-198710

sub31410-35092

main31410-35092iRN35,45198710-198809

main31410-35110iLN30,40198101-198103

sub31410-35220

main31410-35180iLN41198704-198710

main31410-35181iLN41198710-198809

sub31410-22142

31415GASKET, CLUTCH MASTER CYLINDER

main31415-30030iRN3#,4#197808-198809

31425CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main31440-35010iRN3#,4#197905-198101

sub47230-20040

main47230-12011iRN30,40197808-197905

sub31440-35010

main47230-20040iLN30,40197912-198809

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iLN3#,4#,RN3#,4#197808-198809

31431BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-30010iLN3#,4#,RN3#,4#197808-198809

31432WASHER, CLUTCH RESERVOIR SET BOLT

main47232-30010iLN3#,4#,RN3#,4#197808-198809

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-12010iRN3#,4#197808-198611

main31451-22070iLN41198611-198809

main31451-30060iLN3#,4#197912-198611

main31451-35060iRN35,45198611-198809

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-28011iLN41198508-198809

sub31404-28012

main31404-30040iLN3#,4#197912-198207

main31404-30041iLN3#,4#198207-198508

main31453-22010iRN3#,4#197808-198509

sub31453-35010

main31453-35010iRN35,45198509-198809

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iLN30,40,RN3#,4#197808-198809

main31454-24010iLN3#,4#198103-198809

31459BRACKET, CLUTCH MASTER CYLINDER

main31459-35010iLN30,40197912-198103

9017908146

main90179-08146

9412040800

main94120-40800

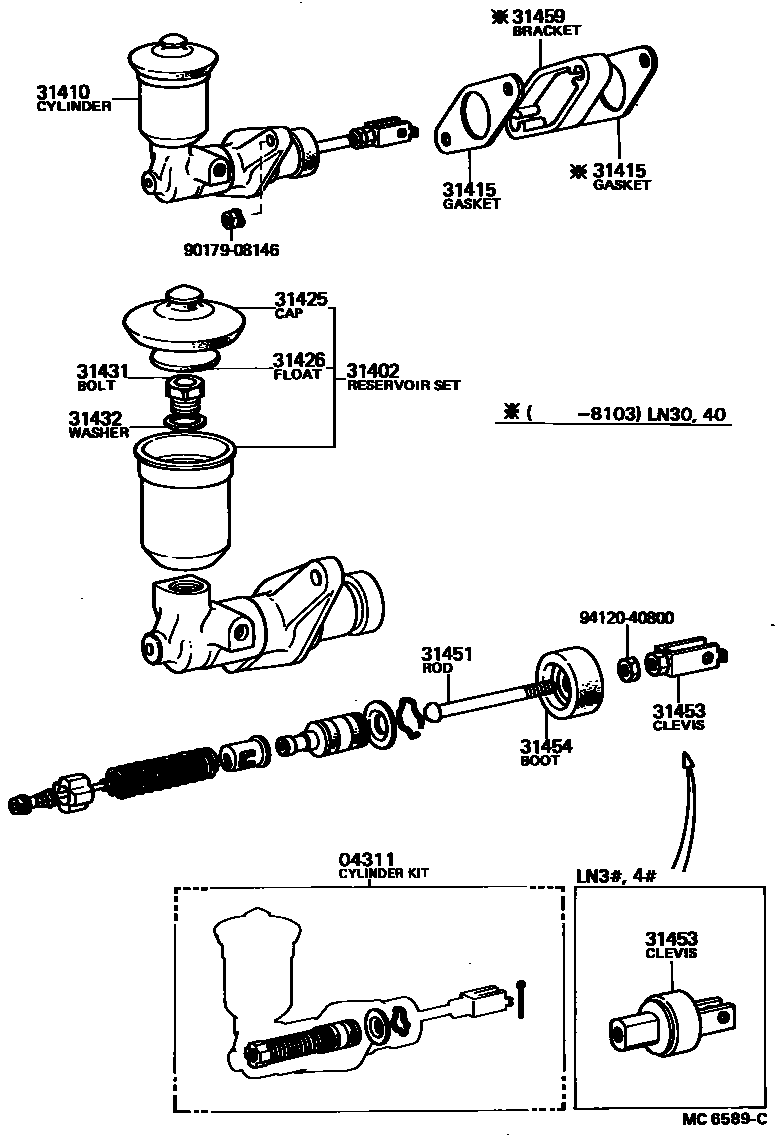

14 parts on this diagram · 1 diagram in section
