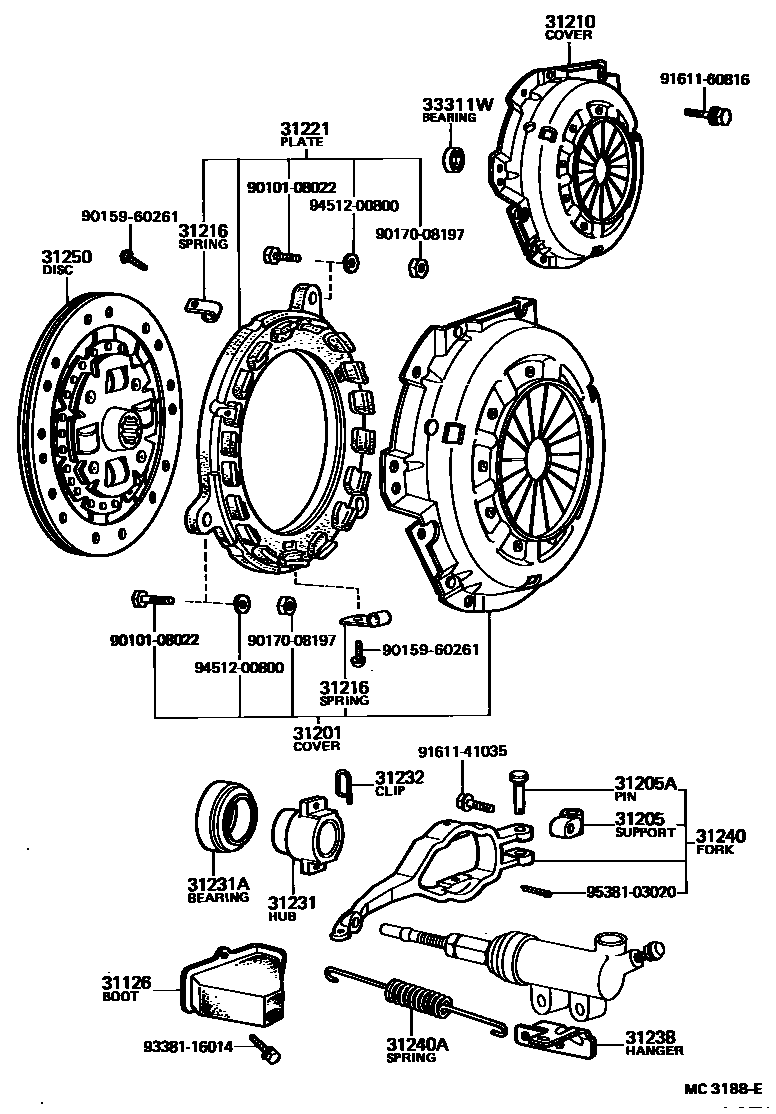

CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1 0004 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20050iRN35,45198508-198809

main31126-20070iLN4#198401-198809

main31126-25021iLN3#,4#197912-198401

main31126-26010iRN30,33,35,4#197808-198508

31201COVER SUB-ASSY, CLUTCH

main31201-19095iLN41198508-198809

sub31201-14110

main31201-29076iLN30,40198008-198010

main31201-29085iRN36,39198008-198310

sub31201-26010

main31201-39045iRN30,40197808-197908

main31201-39046iRN30,33,4#197908-198004

main31201-39047iRN33,35,4#198004-198809

31205SUPPORT SUB-ASSY, RELEASE FORK

main31205-30010iRN30,33,35,4#197808-198508

31205APIN, W/SERRATION(FOR RELEASE FORK SUPPORT)

main90245-10072iRN30,33,35,4#197808-198508

31210COVER ASSY, CLUTCH

main31210-14130iLN41198508-198809

sub31210-35090

main31210-20131iRN36197910-198008

main31210-26040iRN36,39198008-198310

sub31210-26041

main31210-30172iRN35,45198508-198809

sub31210-20270

main31210-35040iRN30,40197808-197908

main31210-35041iRN30,33,4#197908-198004

main31210-35042iRN33,35,4#198004-198508

sub31210-22120

main31210-36028iLN30,40197912-198010

main31210-36029iLN3#,4#198010-198508

sub31210-36200

31216SPRING, CLUTCH RETRACTING

main31216-30010×3iLN3#,4#,RN30,33,36,39,4#197808-198809

31221PLATE, CLUTCH PRESSURE

main31221-29025iRN36,39197910-198310

main31221-39045iRN30,33,35,4#197808-198508

sub31221-35020

main31221-39056iLN3#,4#197912-198809

sub31221-36025

main31221-39115iRN35,45198508-198809

sub31221-30100

31231HUB, CLUTCH RELEASE BEARING

main31231-20031iRN36197910-198009

main31231-20052iLN30,40197912-198009

main31231-20090iLN4#198401-198809

main31231-26010iRN36,39198009-198310

main31231-30080iRN35,45198508-198809

main31231-35020iRN30,40197808-197903

main31231-35021iRN30,33,4#197903-198009

main31231-35022iRN33,35,4#198009-198508

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40003iLN30,40,RN3#,4#197808-198002

main90363-40010iLN30,40,RN3#,43198002-198009

main90363-40019iLN30,40,RN3#,43198009-198105

main90363-40022iLN3#,4#,RN3#,45198211-198809

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-20010×2iRN36,39198009-198310

main31232-22010×2iLN4#198401-198809

main31232-30010×2iLN30,40,RN3#,4#197808-198009

main31232-30020×2iRN35,45198401-198809

31238HANGER, RELEASE FORK RETRACTING SPRING

main31238-26010iRN30,33,35,39,4#197808-198508

31240FORK ASSY, CLUTCH RELEASE

main31204-20020iLN30,40,RN36197910-198009

main31204-20090iLN4#198401-198809

main31204-26010iLN3#,4#,RN36,39198009-198401

main31204-35040iRN35,45198508-198809

main31240-35011iRN30,33,4#197808-198009

main31240-35012iRN33,35,4#198009-198508

31240ASPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)

main90506-16004iLN30,40,RN36,39197910-198508

main90506-16282iRN30,33,35,4#197808-198508

31250DISC ASSY, CLUTCH

main31250-20131iRN35,45198508-198609

main31250-20132iRN35,45198609-198809

sub31250-20121

main31250-22101iLN3#,4#198105-198508

sub31250-22102

main31250-25061iLN30,40197912-198002

main31250-25062iLN30,40198002-198006

main31250-25063iLN30,40198006-198103

main31250-28011iRN30,40197808-197908

sub31250-25100

main31250-30350iLN41198508-198605

main31250-30351iLN41198605-198809

sub31250-35170

main31250-35051iRN36,39197910-198310

sub31250-35052

main31250-35060iRN30,33,4#197908-198012

main31250-35061iRN33,35,4#198012-198508

sub31250-35062

main31250-35080iLN30,40198103-198105

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iLN3#,4#,RN3#,4#198011-198809

sub90363-12024

main97143-06201iLN30,40,RN3#,4#197808-198011

9010108022

main90101-08022

9015960261

main90159-60261

9017008197

main90170-08197

9161141035

main91611-41035

9161160816

main91611-60816

9338116014

main93381-16014

9451200800

main94512-00800

9538103020

main95381-03020

23 parts on this diagram · 4 diagrams in section
