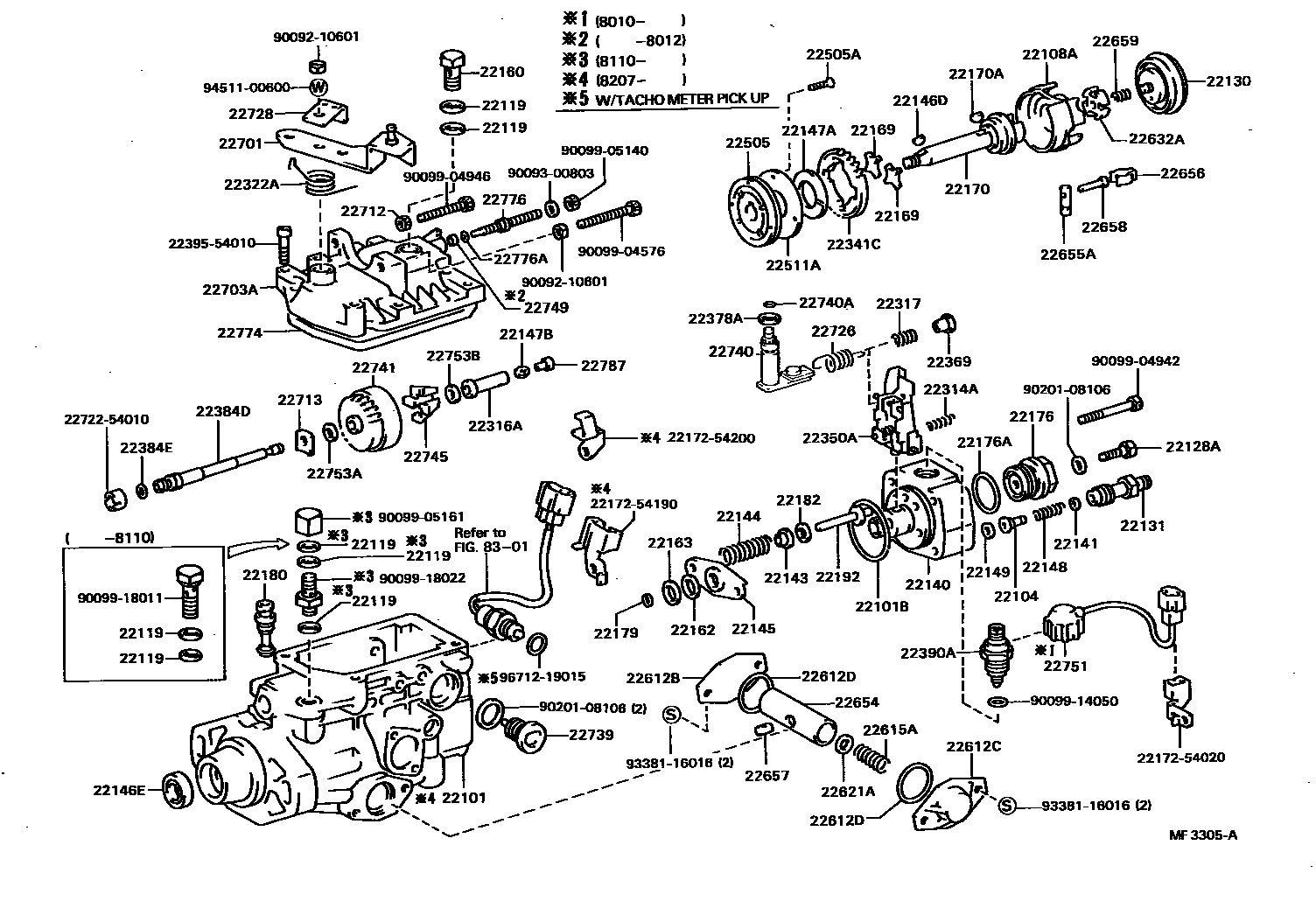

INJECTION PUMP BODY
22101BRING, O(FOR INJECTION PUMP HOUSING)
22104VALVE SUB-ASSY, INJECTION PUMP DELIVERY
22108ARING SUB-ASSY, ROLLER
22119WASHER, AIR BLEEDER NIPPLE
sub90201-12109
22128ABOLT, DISTRIBUTIVE HEAD
22130CAMPLATE SUB-ASSY, FACE
22131HOLDER, DELIVERY VALVE
22141SEAT, DELIVERY VALVE SPRING
22143SEAT, SPRING UPPER
22145SEAT, SPRING, LOWER
22146DKEY(FOR DRIVE GEAR)
22147AWASHER, DRIVE SHAFT
22147BRING, GOVERNOR SLEEVE
22148SPRING, DELIVERY VALVE
22149GASKET, DELIVERY VALVE
22162PLATE, PLUNGER UPPER
22163PLATE, PLUNGER LOWER
22170AKEY(FOR DRIVE SHAFT)
22176PLUG, DISTRIBUTIVE HEAD
22176ARING, O(FOR DISTRIBUTIVE HEAD PLUG)
sub22193-54772
22179SHIM, PLUNGER ADJUSTING
22180VALVE SUB-ASSY, REGULATOR
22182PLATE, TAPPET ADJUSTING SHIM
22192GUIDE SUB-ASSY, PLUNGER SPRING
22314ASPRING, LEVER SUPPORT
22317SPRING, GOVERNOR DOMPER
22341CGEAR, GOVERNOR DRIVE
22350AGOVERNOR ASSY, TORQUE CONTROL
22369SEAT, GOVERNOR SPRING
22378AWASHER, GOVERNOR THRUST
22384ERING, O(FOR GOVERNOR MAIN SHAFT)
22390ASOLENOID ASSY, FUEL CUT
sub22019-6A510
22505PUMP SUB-ASSY, FUEL FEED
22505ASCREW(FOR FUEL FEED PUMP)
22511ACOVER, FEED PUMP
22612BCOVER, TIMER
22612DRING, O(FOR TIMER COVER)
sub90099-14105
22621AWASHER, TIMER ADJUSTING
22632ACOUPLING, INJECTION PUMP
22654PISTON, TIMER
22655APIN, TIMER SLIDE
22656CLIP, TIMER
sub22656-17840
22657CLIP, TIMER
22658STOPPER, TIMER
NO.2
22701LEVER SUB-ASSY, ADJUSTING
NO MARK
MARK "0"
NO MARK
MARK "0"
22703ACOVER SUB-ASSY, GOVERNOR
22712NUT, ROCK
22713WASHER, GOVERNOR GEAR ADJUSTING
22726SPRING, SPEED CONTROL
CW=14.2
CW=15.5
CW=13.5
22728GUIDE, RETURN SPRING
22739BOLT, GOVERNOR LINK SUPPORT
22740SHAFT SUB-ASSY, GOVERNOR ADJUSTING
22740ARING, O(FOR GOVERNOR ADJUSTING SHAFT)
sub22193-54770
22745FLYWEIGHT, DISTRIBUTIVE PUMP
22749COLLAR, SMOKE SET ADJUSTING
T=2.0
T=2.2
T=2.4
T=2.6
T=2.8
T=3.0
T=3.2
T=3.4
T=3.6
T=3.8
22753AWASHER, FLYWEIGHT, NO.1
22753BWASHER, FLYWEIGHT, NO.2
sub22753-54020
22774GASKET, GOVERNOR COVER
sub22774-54270
22776ARING, O(FOR SMOKE SET SCREW)
sub22193-54771
22787PLUG, GOVERNOR SLEEVE
8301
2217254020CLIP, CONNECTOR SUPPORT, SOLENOID
main22172-54020
2217254190CLIP, CONNECTOR SUPPORT, SOLENOID
main22172-54190
2217254200CLIP, CONNECTOR SUPPORT, SOLENOID
main22172-54200
2239554010BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-54010
2272254010NUT, GOVERNOR SHAFT ROCK
main22722-54010
9009210601
main90092-10601
9009300803
main90093-00803
9009904576
main90099-04576
9009904942
main90099-04942
9009904946
main90099-04946
9009905140
main90099-05140
9009905161
main90099-05161
9009914050
main90099-14050
9009918011
main90099-18011
9009918022
main90099-18022
9020108106
main90201-08106
9338116016
main93381-16016
9451100600
main94511-00600
9671219015
main96712-19015
96 parts on this diagram · 3 diagrams in section
