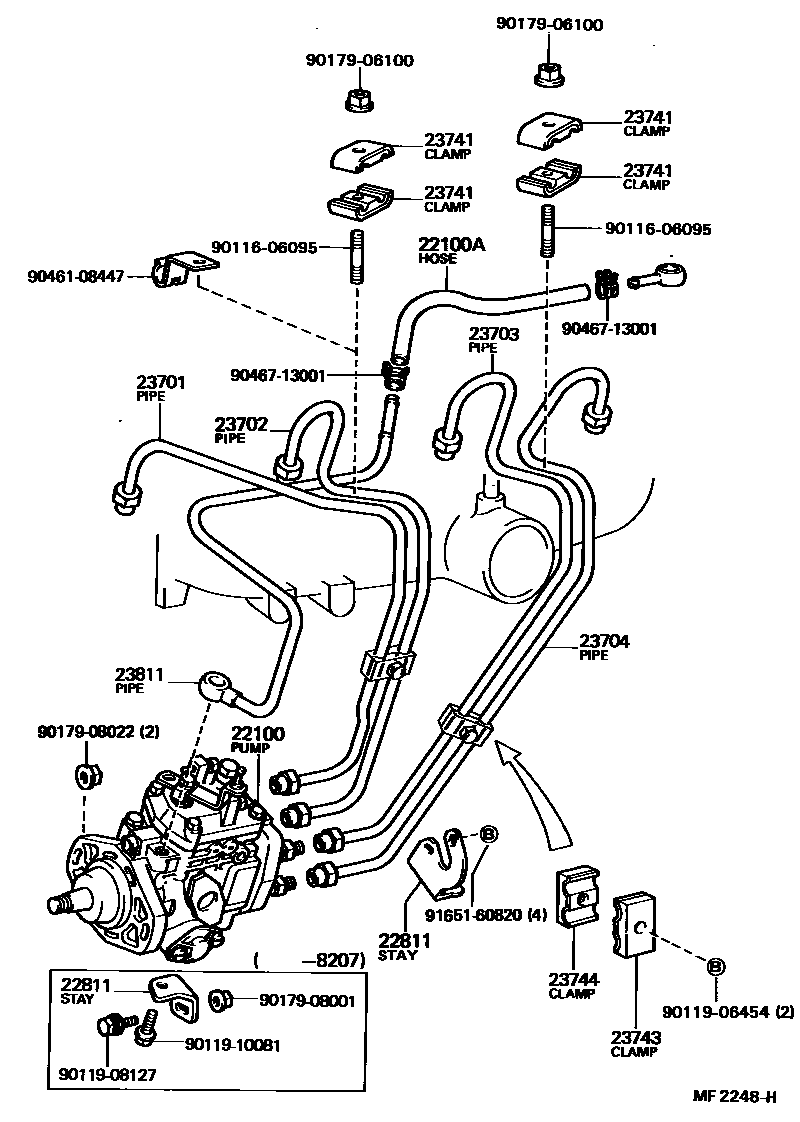

INJECTION PUMP ASSEMBLY

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-54060iL..LN30,40197912-198101

main22100-54070iL..LN30,40197912-198101

COLD SPEC

main22100-54130iL..LN30,40198101-198110

sub22100-54131

sub23811-54051

sub23811-54061

main22100-54131iL..LN30,40198110-198406

sub22100-54132

sub90099-05166

main22100-54132iL..LN40198406-198508

sub22100-54231

main22100-54160iL..LN30,40198101-198110

COLD SPEC

sub22100-54161

sub23811-54051

sub23811-54061

main22100-54230iL..LN36,46198110-198310

sub22100-54231

sub90099-05166

main22100-54310i2L..LN41198508-198607

sub22100-54340

main22100-54311i2L..LN41198607-198809

sub22100-54341

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main95332-08040iL,2L..LN3#,4#197912-198809

sub95333-08040

22811STAY, INJECTION PUMP, NO.1

main22811-54020iL..LN30,40197912-198101

main22811-54030iL..LN3#,4#198101-198207

main22811-54040iL,2L..LN3#,4#198207-198808

sub22811-54041

main22811-54041i2L..LN41198808-198809

sub22811-54042

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-54030iL..LN30,40197912-198101

main23701-54051iL..LN3#,4#198101-198311

main23701-54082iL,2L..LN4#198311-198809

sub23701-54072

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-54030iL..LN30,40197912-198101

main23702-54050iL..LN3#,4#198101-198311

main23702-54081iL,2L..LN4#198311-198809

sub23702-54071

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-54030iL..LN30,40197912-198101

main23703-54050iL,2L..LN3#,4#198101-198809

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-54030iL..LN30,40197912-198101

main23704-54050iL,2L..LN3#,4#198101-198809

23741CLAMP, INJECTION PIPE, NO.1

main23741-56010iL,2L..LN3#,4#197912-198809

23743CLAMP, INJECTION PIPE, NO.3

main23741-54010iL,2L..LN3#,4#197912-198809

23744CLAMP, INJECTION PIPE, NO.4

main23742-54010iL,2L..LN3#,4#197912-198809

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-54040iL..LN30,40197912-198101

sub23811-54050

main23811-54050iL..LN30,40198101-198110

main23811-54051iL,2L..LN3#,4#198110-198809

9011606095

main90116-06095

9011906454

main90119-06454

9011908127

main90119-08127

9011910081

main90119-10081

9017906100

main90179-06100

9017908001

main90179-08001

9017908022

main90179-08022

9046108447

main90461-08447

9046713001

main90467-13001

9165160820

main91651-60820

21 parts on this diagram · 1 diagram in section
