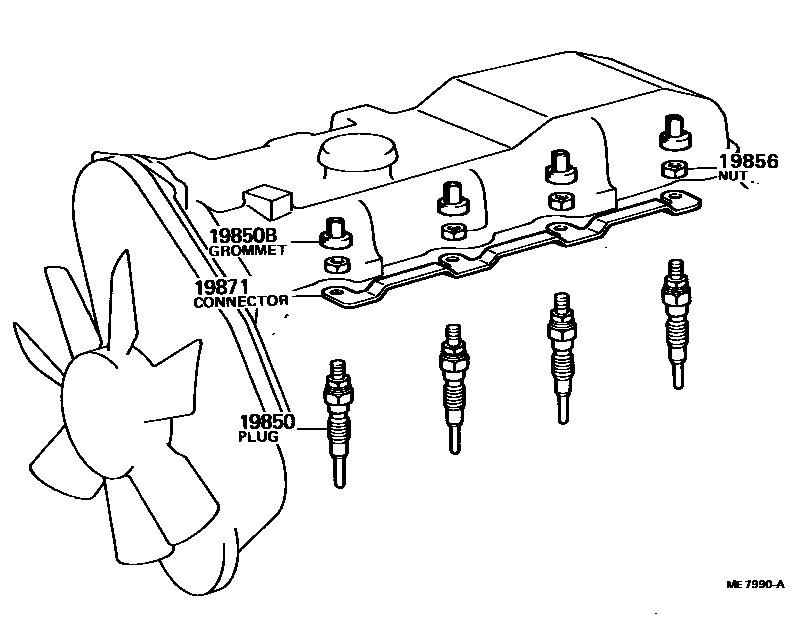

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1

19850PLUG ASSY, GLOW

main19850-54030iL..LN30,40197912-198110

*12V-11V

sub19850-54031

main19850-54040iL..LN30,40197912-198110

COLD SPEC,*24V-23V

sub19850-54020

sub90170-05001

sub90189-06004

main19850-54050iL,2L..LN3#,4#198110-198809

19850BGROMMET, SCREW(FOR GLOW PLUG)

main90189-04024iL,2L..LN3#,4#197912-198809

19856NUT, CONNECTING(FOR GLOW PLUG)

main90170-04001iL,2L..LN4#198407-198809

main90170-04002iL..LN3#,4#197912-198407

19871CONNECTOR, GLOW PLUG NO.1

main19871-54010iL,2L..LN3#,4#197912-198509

sub19871-54011

main19871-54011i2L..LN41198509-198809

4 parts on this diagram · 3 diagrams in section
