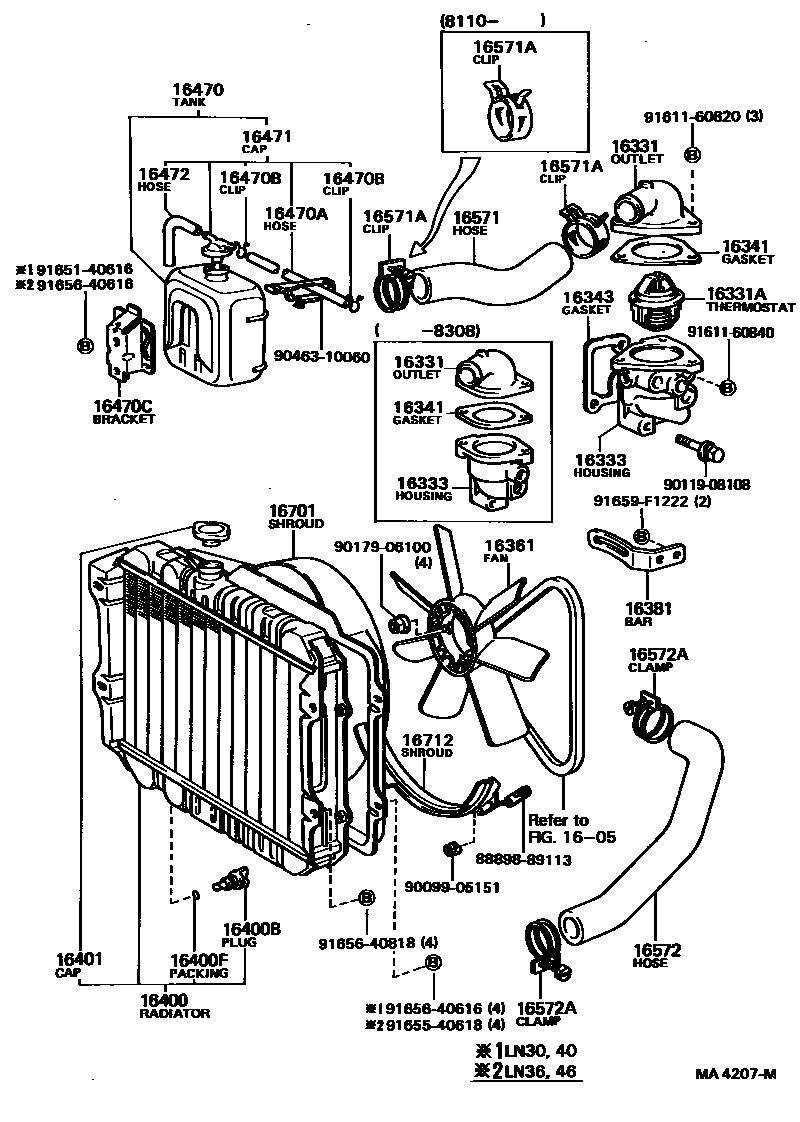

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1

1605

16331OUTLET, WATER

main16331-31082i12RJ..RN30,33,35,4#197808-198809

main16331-34130i18RJ..RN36197910-198110

main16331-36012i18RJ..RN39198110-198310

main16331-54010iL..LN3#,4#197912-198310

main16331-54030iL,2L..LN4#198310-198809

16331ATHERMOSTAT

main90916-03034i12RJ,18RJ..RN3#,4#197808-198202

*WAX 82-95,*(F)

main90916-03036i12RJ,18RJ..RN33,35,36,39,43,45197910-198202

COLD SPEC,*WAX 88-100,*(F)

main90916-03037i12RJ,18RJ..RN3#,4#197808-198202

*WAX 82-95,KUZEH

sub90916-03083

main90916-03040i12RJ,18RJ..RN33,35,36,39,43,45197910-198202

COLD SPEC,*WAX 88-100,KUZEH

sub90916-03078

main90916-03042iL..LN30,40197912-198110

*WAX 82-95,*(F)

main90916-03043iL..LN30,40197912-198110

COLD SPEC,*WAX 88-100,*(F)

main90916-03054i12RJ..RN35,45198202-198809

sub90916-03083

main90916-03055i12RJ..RN35,45198202-198809

sub90916-03078

main90916-03061iL..LN3#,4#198110-198310

*WAX 82-95,*(F)

main90916-03062iL..LN3#,4#198110-198310

main90916-03072i2L..LN41198805-198809

sub90916-03099

16333HOUSING, WATER OUTLET

main16333-54010iL..LN30,40197912-198008

main16333-54011iL..LN3#,4#198008-198310

main16333-54050iL,2L..LN4#198310-198809

16341GASKET, WATER OUTLET

main16341-38010i12RJ,18RJ..RN3#,4#197808-198008

main16341-38011i12RJ,18RJ..RN3#,45198201-198809

main16341-41010iL..LN3#,4#198008-198304

sub16341-38021

main16341-54011iL,2L..LN4#198310-198808

main16341-54020iL..LN3#,4#198304-198310

sub16341-34010

main16341-54030i2L..LN41198808-198809

sub16341-54040

16343GASKET, WATER OUTLET HOUSING

main16343-54010iL..LN30,40197912-198008

main16343-54011iL,2L..LN3#,4#198008-198809

sub16343-54021

16361FAN

main16361-31021i12RJ..RN30,40197808-197911

4 BLADES

main16361-31050i12RJ..RN30,40197808-197911

5 BLADES W/COOLER

main16361-34030iL..LN3#,4#197910-198310

7 BLADES

main16361-44040i12RJ..RN33,35,4#197911-198809

6 BLADES

main16361-44041i12RJ..RN33,35,4#197911-198809

W/COOLER,6 BLADES

16381BAR, FAN BELT ADJUSTING

main16381-30021i12RJ..RN30,33,35,4#197808-198809

COLD SPEC

main16381-31012i12RJ..RN30,33,35,4#197808-198809

main16381-34030i18RJ..RN36,39197910-198310

main16381-54011iL,2L..LN3#,4#197912-198809

16400RADIATOR ASSY

main16400-31230i12RJ..RN30,33,4#197808-198110

main16400-31330i12RJ..RN35,45198110-198809

main16400-34290i18RJ..RN36,39197910-198310

main16400-54080iL..LN30,40197912-198101

main16400-54081iL..LN3#,4#198101-198508

main16400-54082i2L..LN41198508-198809

16400BPLUG, RADIATOR DRAIN COCK

main23322-54010i12RJ..RN35,45198110-198809

main90910-09054i12RJ,18RJ..RN3#,4#197808-198110

16400FPACKING(FOR RADIATOR DRAIN COCK)

main96710-01007i12RJ,18RJ..RN3#,4#197808-198110

main96711-19007iL,2L..LN3#,4#198110-198809

16401CAP SUB-ASSY, RADIATOR

main16401-36011i12RJ,18RJ..RN3#,4#197808-198809

main16401-63010i2L..LN41198508-198809

16470TANK ASSY, RADIATOR RESERVE

main16470-34120i12RJ..RN30,40197808-197811

main16470-89103i12RJ,18RJ..RN3#,4#197811-198809

sub16470-89104

main16470-89105iL,2L..LN3#,4#197912-198809

sub16470-89104

main16470-89106iL,2L..LN3#,4#197912-198809

COLD SPEC

sub16470-89104

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90099-33534iL,2L..LN3#,4#197912-198809

main90445-12030iL..LN30,40197912-198110

main90445-12730iL,2L..LN3#,4#198110-198809

sub90445-12078

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085×2iL,2L..LN3#,4#197811-198809

16470CBRACKET(FOR RADIATOR RESERVE TANK)

main16402-31010i12RJ..RN30,33,35,4#197808-198809

main16402-89101i18RJ..RN36,39197910-198310

16471CAP SUB-ASSY, RESERVE TANK

main16405-89103iL,2L..LN3#,4#197912-198809

main16405-89104iL,2L..LN3#,4#197912-198809

COLD SPEC

main16405-89105i12RJ,18RJ..RN3#,45198110-198809

main16471-34120i12RJ..RN30,40197808-197811

main16471-89103i12RJ,18RJ..RN3#,4#197811-198110

16472HOSE, BREATHER

main85338-22020iL,2L..LN3#,4#198110-198809

main85338-89102i12RJ,18RJ..RN3#,4#197811-198110

16571HOSE, RADIATOR, INLET

main16571-34090i18RJ..RN36,39197910-198310

main16571-54050iL,2L..LN30,40,41197912-198809

main16571-54090iL..LN36,46198110-198310

main16572-31091i12RJ..RN30,33,35,4#197808-198809

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-37001i12RJ,18RJ..RN3#,4#197808-198011

ENGINE SIDE,ID=37

sub90467-37003

main96111-10440iL..LN30,40198011-198110

RADIATOR SIDE,ID=44

16572HOSE, RADIATOR, OUTLET

main16571-31024i12RJ..RN30,33,35,4#197808-198809

main16572-34061i18RJ..RN36,39197910-198310

main16572-54050iL,2L..LN3#,4#197912-198809

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90460-49062i18RJ..RN36197910-198110

ENGINE SIDE,ID=49

sub96111-10490

main96111-10460×2i12RJ..RN30,33,35,4#197808-198809

ID=46

main96111-10480i18RJ..RN39198110-198310

ENGINE SIDE,ID=48

main96111-10500iL,2L..LN30,40,41197912-198809

ENGINE SIDE,ID=50

16701SHROUD SUB-ASSY, FAN

main16071-89101i12RJ..RN30,40197808-197912

W/COOLER

main16701-89101iL,2L..LN30,40,41197912-198809

main16701-89102i12RJ..RN33,35,4#197911-198809

main16711-89104i12RJ..RN30,40197808-197911

main16711-95110i18RJ..RN36,39197910-198310

main16711-95112iL..LN36,46198110-198310

16712SHROUD, FAN, NO.2

main16831-89103iL,2L..LN30,40,41197912-198809

W/COOLER

main16831-89104i12RJ..RN30,33,35,4#197808-198809

W/COOLER

main16831-95110i18RJ..RN36,39197910-198310

W/COOLER

main16831-95112iL..LN36,46198110-198310

W/COOLER

8889889113TUBE SUB-ASSY, EQUALIZER

main88898-89113

9009905151

main90099-05151

9011908108

main90119-08108

9017906100

main90179-06100

9046310060

main90463-10060

9161160820

main91611-60820

9161160840

main91611-60840

9165140616

main91651-40616

9165540618

main91655-40618

9165640616

main91656-40616

9165640818

main91656-40818

91659F1222

main91659-F1222

36 parts on this diagram · 5 diagrams in section
