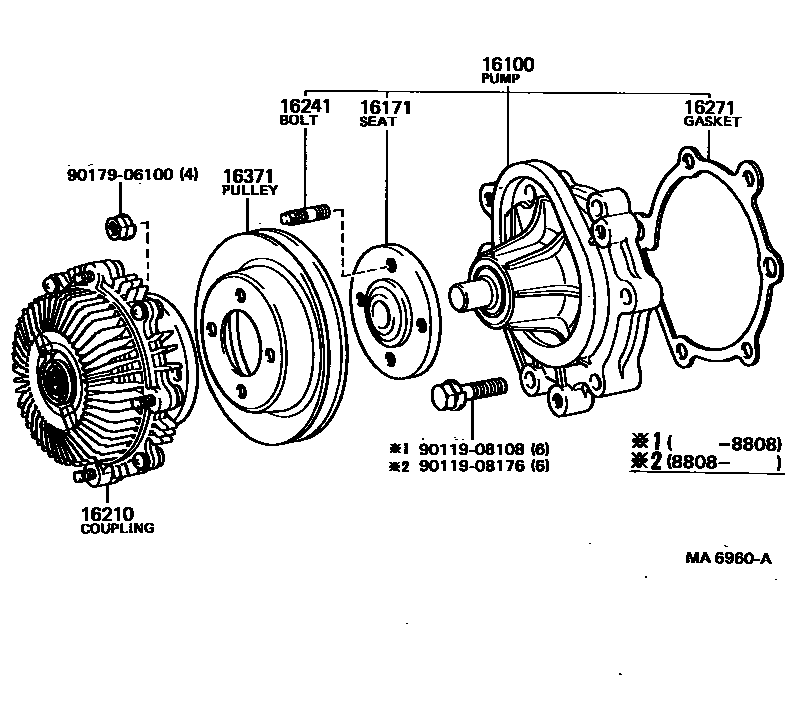

WATER PUMP

0001 1 0002 1 0003 1 0004 1

16100PUMP ASSY, ENGINE WATER

main16100-39116i12RJ..RN30,40197808-197912

main16100-39236i18RJ..RN36,39197910-198310

sub16100-39237

main16100-39285i12RJ..RN33,35,4#197912-198809

main16100-59047iL..LN30,40197912-198008

sub16100-59049

main16100-59049iL..LN30,40198008-198105

sub16100-59125

main16100-59125iL..LN30,40198105-198108

sub16100-59215

main16100-59126iL..LN3#,4#198108-198210

sub16100-59127

main16100-59127iL,2L..LN3#,4#198210-198809

sub16100-59128

16171SEAT, WATER PUMP PULLEY

main16171-24030i18RJ..RN36,39197910-198310

main16171-24031i12RJ..RN30,40197808-197912

main16171-54010iL..LN30,40197912-198108

main16171-54011iL,2L..LN3#,4#198108-198809

16210COUPLING ASSY, FLUID

main16210-31010i12RJ..RN33,35,4#197912-198809

main16210-34101i18RJ..RN36197910-197912

sub16210-34102

main16210-34102i18RJ..RN36,39197912-198310

main16210-54040iL..LN3#,4#197912-198508

main16210-54110i2L..LN41198508-198809

sub16210-54040

16241BOLT, STUD(FOR WATER PUMP COUPLING)

main16193-13020iL,2L..LN3#,4#198208-198809

main16193-33030i18RJ..RN36,39197910-198310

main16193-54010i12RJ..RN33,35,4#197912-198809

16271GASKET, WATER PUMP

main16271-31010i12RJ..RN30,33,35,4#197808-198809

main16271-33010i18RJ..RN36,39197910-198310

sub16271-33011

main16271-54010iL..LN30,40197912-198008

main16271-54011iL..LN30,40198008-198105

sub16271-54012

main16271-54012iL,2L..LN3#,4#198105-198809

sub16271-54013

16371PULLEY, FAN

main16173-34100i18RJ..RN36,39197910-198310

main16371-31022i12RJ..RN30,40197808-197912

main16371-31030i12RJ..RN33,35,4#197912-198809

main16371-54010iL,2L..LN3#,4#197912-198809

9011908108

main90119-08108

9011908176

main90119-08176

9017906100

main90179-06100

9 parts on this diagram · 4 diagrams in section
