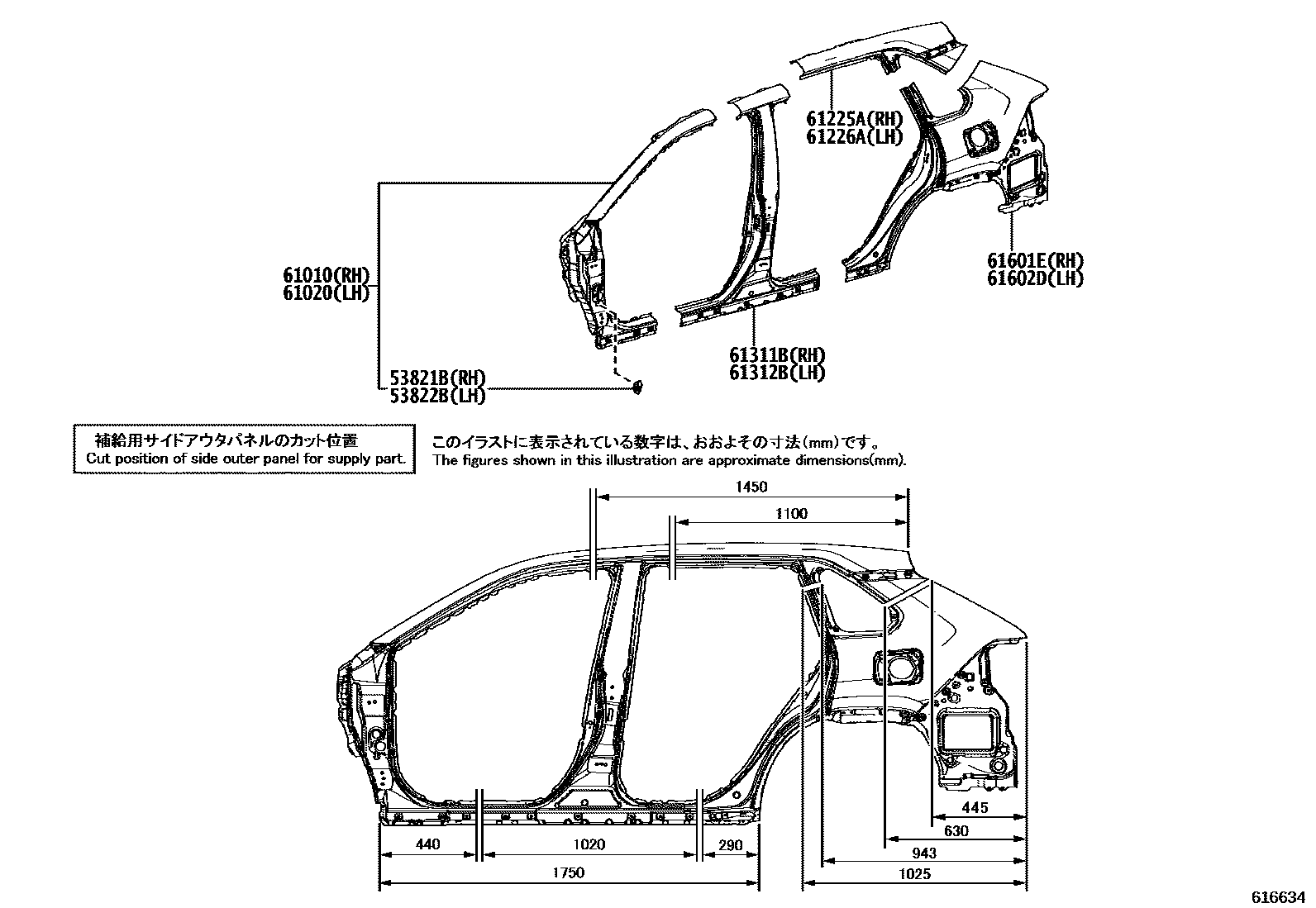

SIDE MEMBER

0001 1������� 0002 1�������,RH 0003 1�������,LH

53821BBRACKET, FRONT FENDER, REAR RH

main53821-42030iAXAP54..Z202210-202310

53822BBRACKET, FRONT FENDER, REAR LH

main53821-42030iAXAP54202006-202210

61010MEMBER ASSY, SIDE, RH

main61010-42020iAXAP54202006-202111

main61010-42021iAXAP54202112-202210

61020MEMBER ASSY, SIDE, LH

main61020-42020iAXAP54202006-202111

main61020-42021iAXAP54202112-202210

61225ARAIL, ROOF SIDE OUTER UPPER NO.1, RH

main61210-42010iAXAP54202006-202111

main61210-42011iAXAP54202112-202210

61226ARAIL, ROOF SIDE OUTER UPPER NO.1, LH

main61220-42010iAXAP54202006-202111

main61220-42011iAXAP54202112-202210

61311BPILLAR, CENTER BODY, OUTER RH

main61311-42050iAXAP54202006-202111

main61311-42051iAXAP54202112-202210

61312BPILLAR, CENTER BODY, OUTER LH

main61312-42050iAXAP54202006-202111

main61312-42051iAXAP54202112-202210

61601EPANEL SUB-ASSY, QUARTER, OUTER RH

main61601-42150iAXAP54202006-202210

61602DPANEL SUB-ASSY, QUARTER, OUTER LH

main61602-42130iAXAP54..Z202210-202310

10 parts on this diagram · 3 diagrams in section
