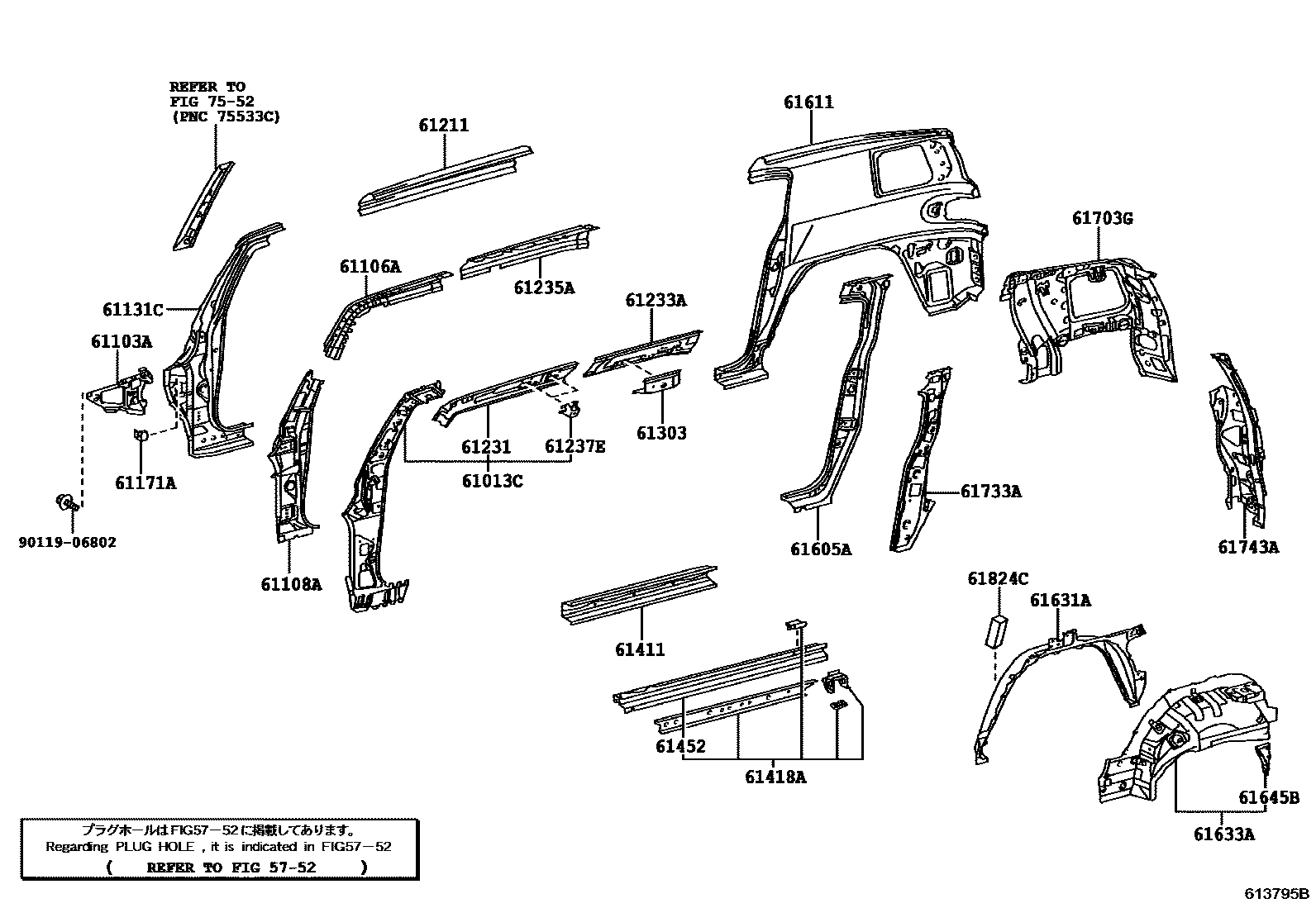

SIDE MEMBER

0001 1RH 0002 1LH

5752

61013CPANEL SUB-ASSY, SIDE, INNER RH

main61013-35040iGSJ15201011-201801

61103AREINFORCEMENT SUB-ASSY, COWL SIDE, RH

main61103-35020iGSJ15201011-201801

61106AREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH

main61106-35010iGSJ15201011-201801

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-35061iGSJ15201011-201801

61131CPILLAR, FRONT BODY, OUTER RH

main61131-35060iGSJ15201011-201801

61171ABRACKET, ANTENNA POLE MOUNTING

main61171-35010iGSJ15201011-201801

61211RAIL, ROOF SIDE, OUTER RH

main61211-35060iGSJ15201011-201801

61231RAIL, ROOF SIDE, INNER RH

main61231-35180iGSJ15201011-201801

61233ARAIL, ROOF SIDE, INNER NO.2 RH

main61233-35010iGSJ15201011-201801

61235ARAIL, ROOF SIDE, INNER NO.3 RH

main61235-35020iGSJ15201011-201801

61237EBRACKET, ASSIST GRIP, NO.1

main61237-35020×2iGSJ15201011-201801

61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH

main61303-35020iGSJ15201011-201801

61411PANEL, ROCKER, OUTER RH

main61411-35091iGSJ15201011-201801

61418AREINFORCEMENT, ROCKER PANEL, RH

main61401-35031iGSJ15201011-201801

61452PANEL, ROCKER INNER, FRONT RH

main61452-35011iGSJ15201011-201801

61605AREINFORCEMENT SUB-ASSY, QUARTER PANEL, RH

main61605-35041iGSJ15201011-201801

61611PANEL, QUARTER, RH

main61611-35261iGSJ15201011-201801

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-35903iGSJ15201011-201801

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61633-35904iGSJ15201011-201801

61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-35010iGSJ15201011-201801

61703GPANEL SUB-ASSY, QUARTER, INNER RH

main61703-35090iGSJ15201011-201801

61733APANEL, ROOF SIDE, INNER FRONT RH

main61733-35010iGSJ15201011-201801

61743AREINFORCEMENT, BACK DOOR OPENING SIDE, RH

main61035-35020iGSJ15201011-201106

main61035-35021iGSJ15201107-201801

61824CPAD, NOISE SHUTTER, NO.1

main61824-35020×2iGSJ15201011-201801

7552

9011906802

main90119-06802

27 parts on this diagram · 2 diagrams in section
