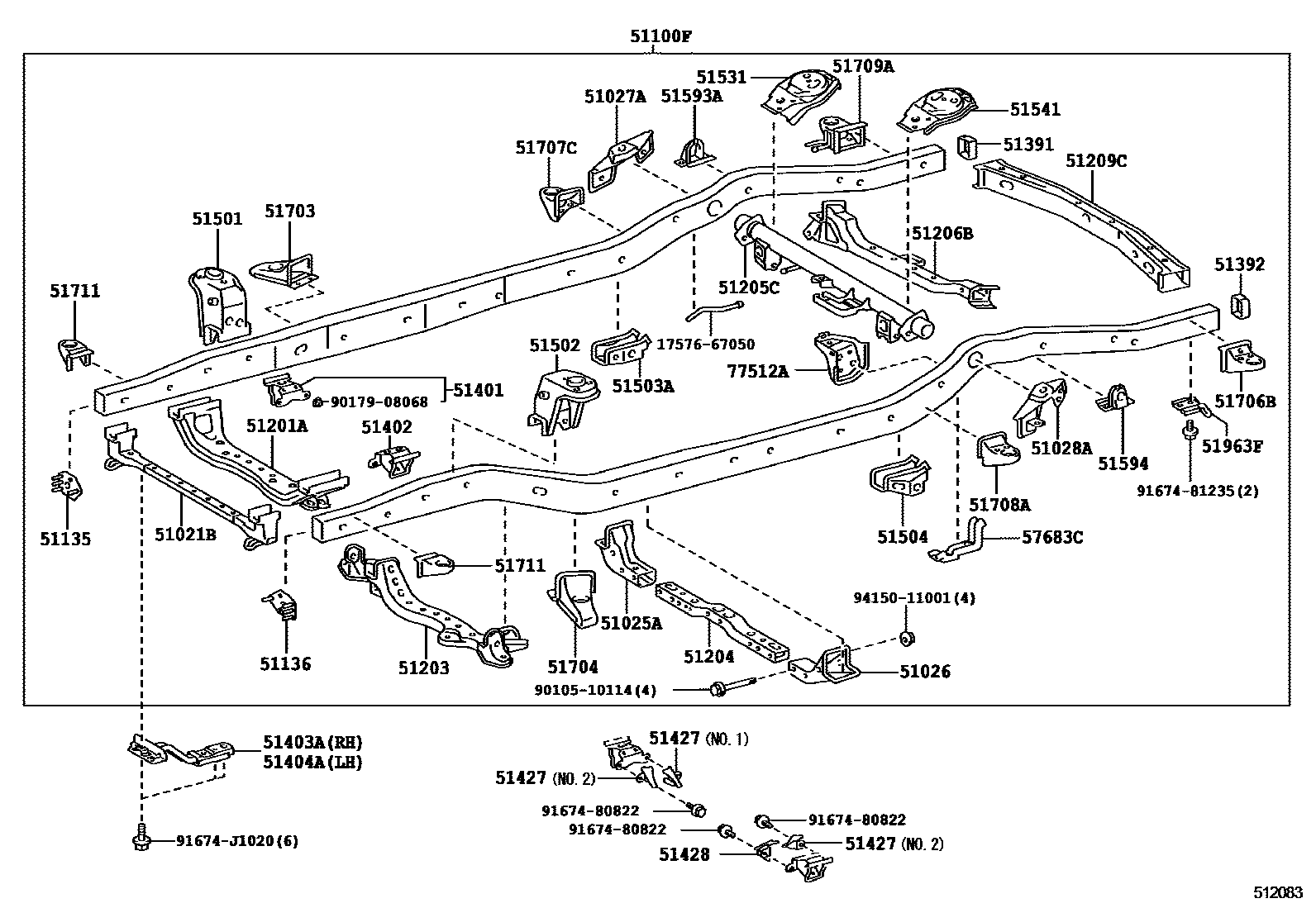

FRAME
51021BCROSSMEMBER SUB-ASSY, FRAME AUXILIARY
51025ABRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, RH
51026BRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, LH
51027ABRACKET SUB-ASSY, FRAME NO.4 CROSSMEMBER, RH
51028ABRACKET SUB-ASSY, FRAME NO.4 CROSSMEMBER, LH
51100FFRAME SUB-ASSY
51135PLATE, FRAME SIDE RAIL, RH
51136PLATE, FRAME SIDE RAIL, LH
51201ACROSSMEMBER SUB-ASSY, FRAME, FRONT
51203CROSSMEMBER SUB-ASSY, FRAME, NO.2
51204CROSSMEMBER SUB-ASSY, FRAME, NO.3
51205CCROSSMEMBER SUB-ASSY, FRAME, NO.5
51209CCROSSMEMBER SUB-ASSY, FRAME, REAR
51391GUSSET, FRAME REAR CROSSMEMBER, RH
51392GUSSET, FRAME REAR CROSSMEMBER, LH
51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51403ABRACE SUB-ASSY, FRONT SUSPENSION MEMBER, RH
51404ABRACE SUB-ASSY, FRONT SUSPENSION MEMBER, LH
51501SUPPORT SUB-ASSY, SUSPENSION ARM, RH
51502SUPPORT SUB-ASSY, SUSPENSION ARM, LH
51503ABRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, RH
51504BRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, LH
51531BRACKET, REAR SPRING SUPPORT, RH
51541BRACKET, REAR SPRING SUPPORT, LH
51593ABRACKET, REAR SPRING BUMPER, RH
51594BRACKET, REAR SPRING BUMPER, LH
51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
51706BBRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH
51707CBRACKET SUB-ASSY, CAB MOUNTING, NO.4 RH
51708ABRACKET SUB-ASSY, CAB MOUNTING, NO.4 LH
51709ABRACKET SUB-ASSY, BODY REAR END MOUNTING
51711BRACKET, FRONT BODY SUPPORT OR MOUNTING, RH
51963FHOOK, TRANSPORT
1757667050BRACKET, MUFFLER CLAMP
main17576-67050
9010510114
main90105-10114
9017908068
main90179-08068
9167480822
main91674-80822
9167481235
main91674-81235
91674J1020
main91674-J1020
9415011001
main94150-11001
47 parts on this diagram · 2 diagrams in section
