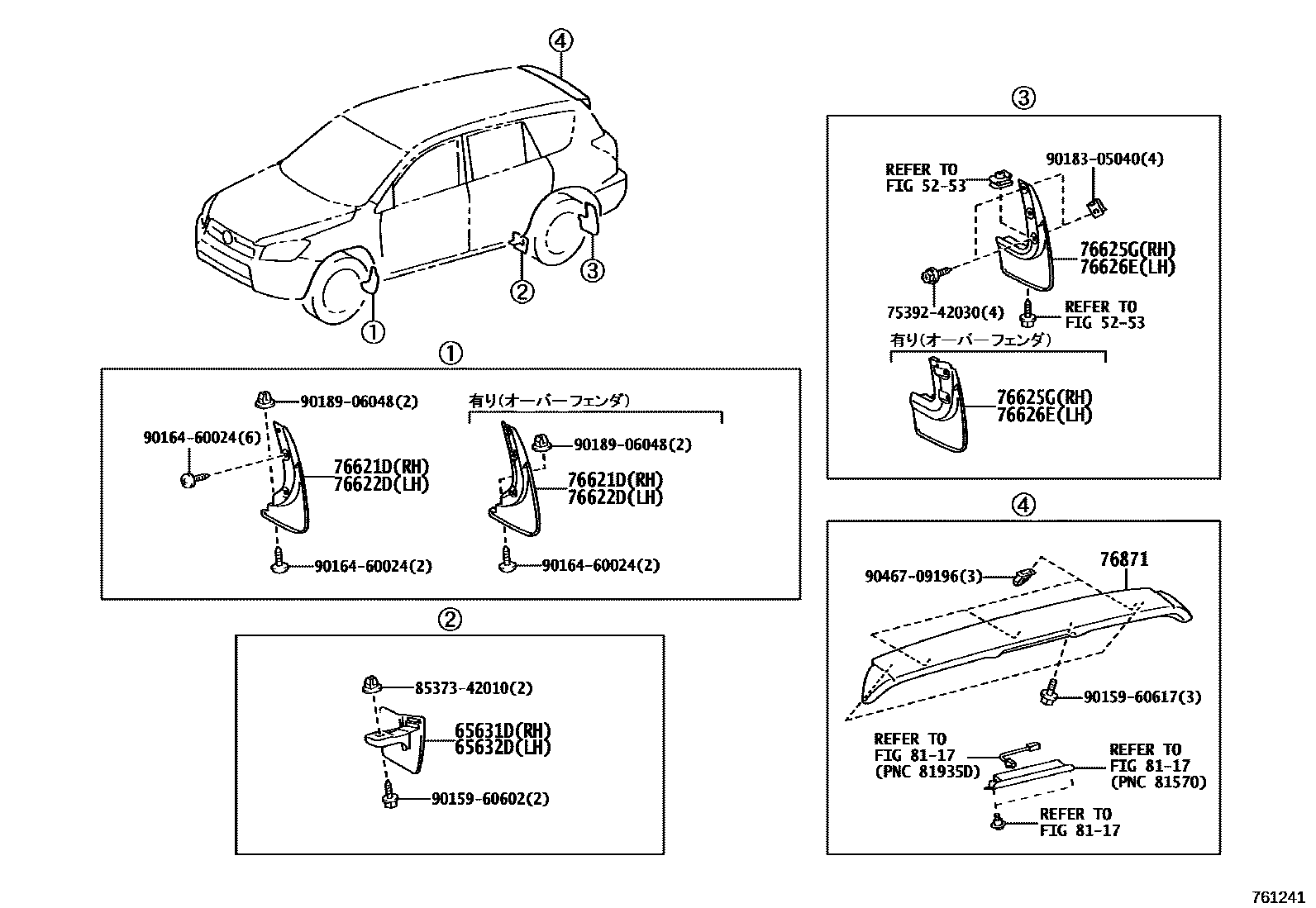

SPOILER & SIDE MUDGUARD
5253
65631DPLATE, REAR WHEEL HOUSE, FRONT RH
65632DPLATE, REAR WHEEL HOUSE, FRONT LH
76621DMUDGUARD, FRONT FENDER, RH
76622DMUDGUARD, FRONT FENDER, LH
76625GMUDGUARD, QUARTER PANEL, REAR RH
76626EMUDGUARD, QUARTER PANEL, REAR LH
76871SPOILER, REAR
8117
7539242030RETAINER, OUTSIDE MOULDING
main75392-42030
8537342010HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main85373-42010
9015960602
main90159-60602
9015960617
main90159-60617
9016460024
main90164-60024
9018305040
main90183-05040
9018906048
main90189-06048
9046709196
main90467-09196
17 parts on this diagram · 2 diagrams in section
