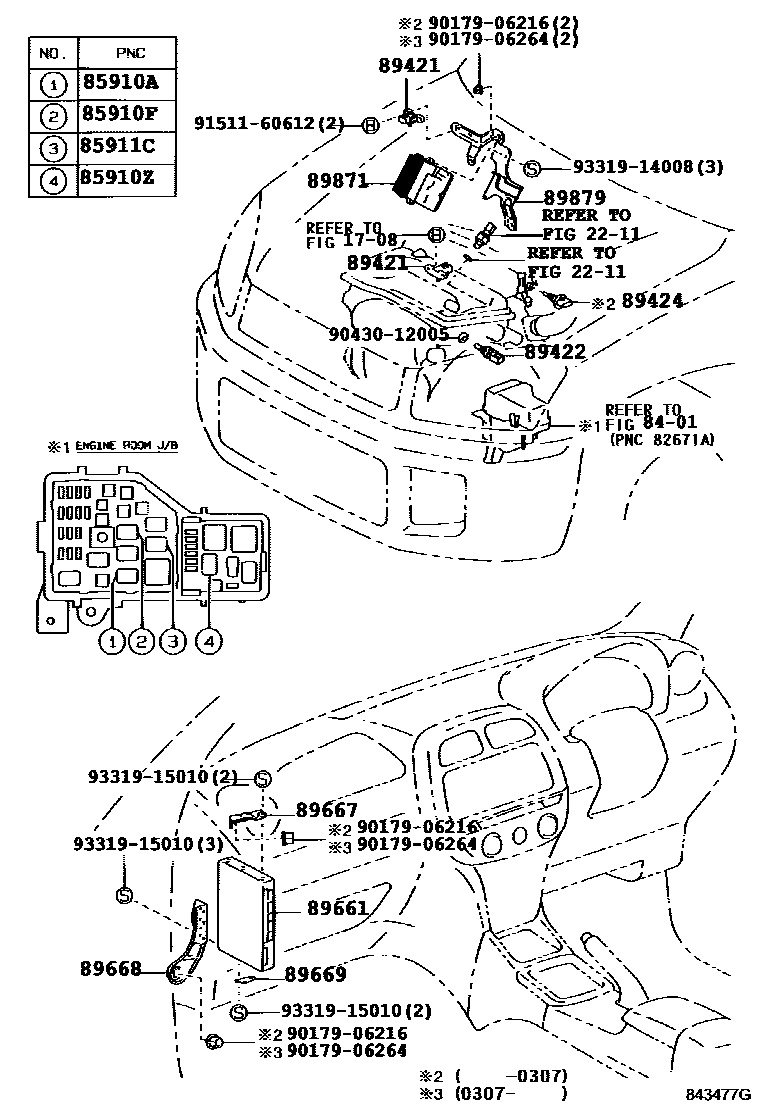

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

1708

2211

8401

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02012iACA2#,ZCA2#200005-200307

main90987-02027iACA2#,ZCA2#200307

85910FRELAY, COMPUTER (FOR EFI)

main90987-02012iACA2#,ZCA2#200005-200307

main90987-02027iACA2#,ZCA2#200307

85910ZRELAY, INJECTION (FOR EFI)

main90987-02012iACA2#200005-200307

main90987-02027iACA2#200307

85911CRELAY, EFI 2

main90987-02012iACA2#200005-200307

main90987-02027iACA2#200307

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-20190×2iACA2#200005-200307

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iACA2#200307

main89422-35010iACA2#,ZCA2#200005-200307

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iACA2#200005-200307

89661COMPUTER, ENGINE CONTROL

main89661-42160iZCA2#200005-200307

main89661-42610iACA2#..MTM200005-200107

main89661-42611iACA2#..MTM200107-200108

main89661-42620iACA2#..ATM200005-200107

main89661-42621iACA2#..ATM200107-200108

main89661-42830iACA2#..MTM200108-200307

main89661-42840iACA2#..ATM200108-200307

main89661-42A00iZCA2#200307

main89661-42B40iACA2#200307

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-42030iACA2#,ZCA2#200005-200307

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-42030iACA2#,ZCA2#200005-200307

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-42040iACA2#,ZCA2#200005-200307

89871DRIVER, INJECTOR

main89871-20040iACA2#200005-200307

89879BRACKET, INJECTOR DRIVER

main89879-42010iACA2#200005-200307

9017906216

main90179-06216

9017906264

main90179-06264

9043012005

main90430-12005

9151160612

main91511-60612

9331914008

main93319-14008

9331915010

main93319-15010

22 parts on this diagram · 2 diagrams in section
